Repair Parts and Maintenance Guide

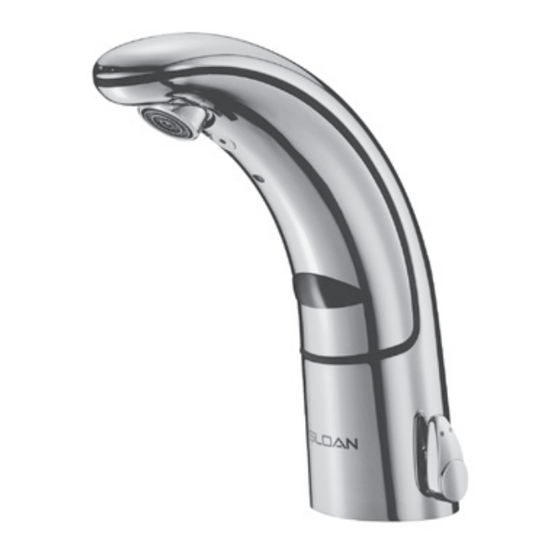

Optima EAF-150 Faucet
®

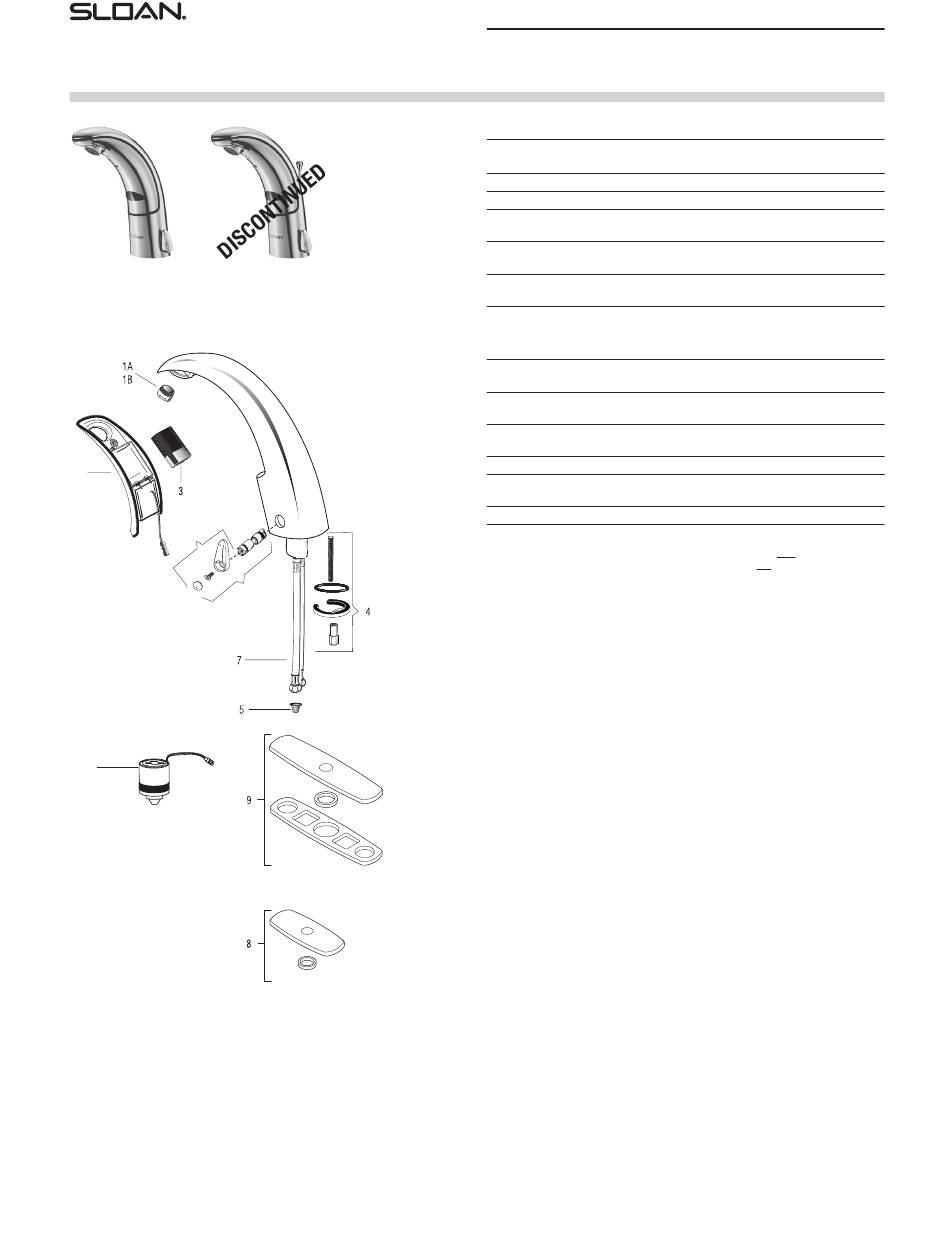

PARTS LIST—EAF-150 FAUCETS
Item
No. Code No. Part No. Description
1A. 0335008
EAF-10 2.2 gpm (8.3 Lpm) Aerator Spray Head
1B. 0335010 EAF-12 0.5 gpm (1.9 Lpm) Spray Head (Multi-Lam)
1C. 0335029 EAF-51 0.35 gpm (1.3 Lpm) Spray Head (Multi-Lam)
1D. 0335021
EAF-22 1.5 gpm (5.6 Lpm) Aerator Spray Head
2A. 0335002
EAF-3-A Throat Plate Assembly (Battery Models)
(from Nov 2018)
2B. 0335003
EAF-4-A Sensor standard throat plate assembly with i.q.
click (Plug-in adapter models, IC variation)
3. 3335009 EAF-1000 Battery Replacement Kit
(6V 2CR5 with 2.5 mm allen Wrench)
0335000
4. EAF-1 Faucet Mounting Kit
0335007
5. EAF-9 Strainer (Filter) 2 required for ISM Models (one per
package)
6A. 3335118
EAF-1022 Mixer Handle Assembly and Cartridge (post 2004)
6B. 3335011 EAF-1002 Handle Repair Kit
7. 3335023 EAF-1008 15" (330 mm) Flexible Supply Hose (1) with inlet
filter
0362011
8. SFP-11 Trim Plate for 4" Center-set Sink
9A. ETF-608-A Trim Plate for 8" Center-set Sink
3365303
9B. 3362022
SFP22A Trim Plate for 8" Centerset sink
10. 0335001
EAF-2 Solenoid (6 mm hex recess)
EAF-1001 Mixer Handle Assembly & Cartridge Discontinued (Faucets manufactured prior 2004).
Use Mixer Handle Assembly Cartridge kit EAF-1022-A (Faucets manufactured post 2004).
