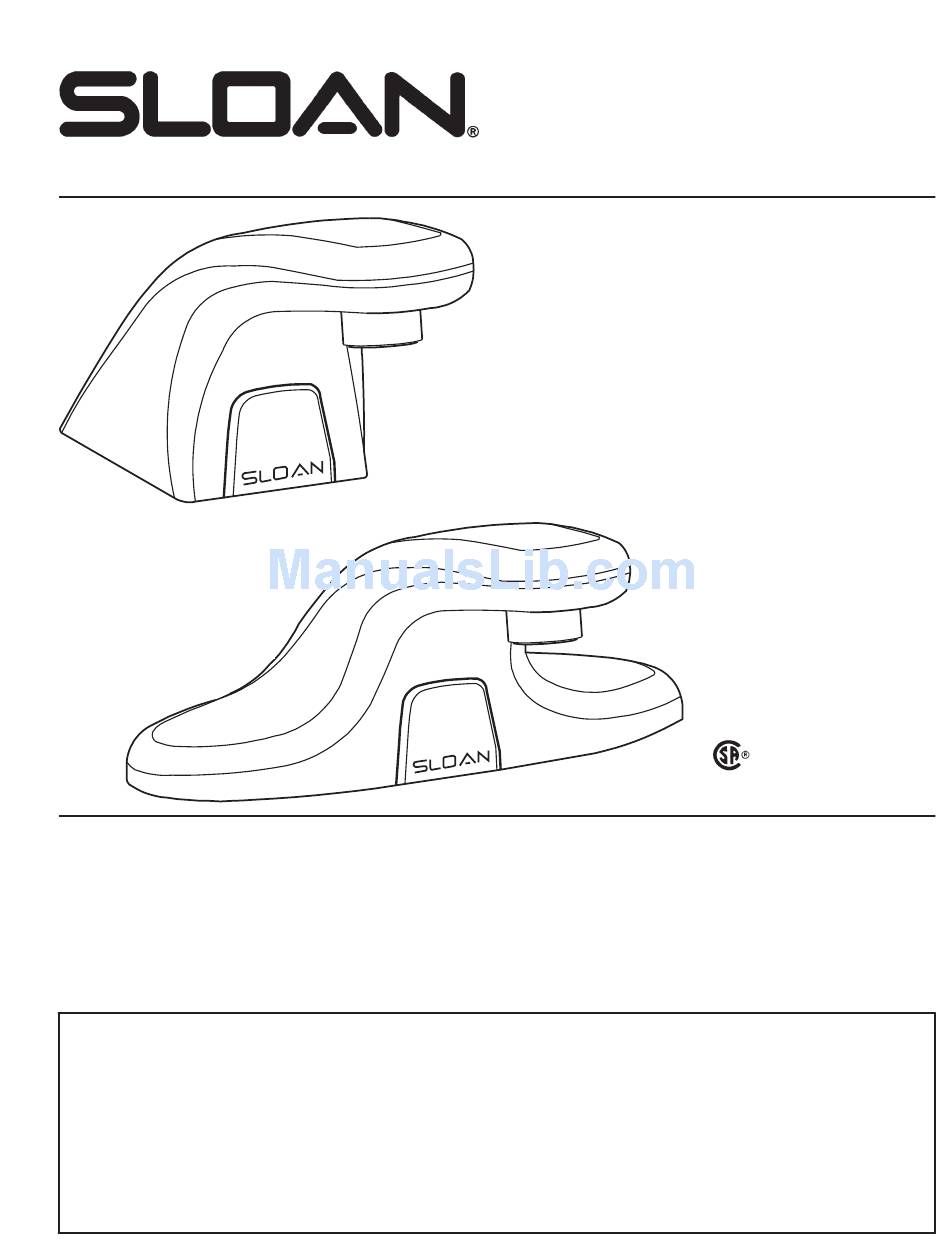

EBF-650
Installation of the Sloan OPTIMA Plus EBF-615 or EBF-650 Battery Powered,
Sensor Operated Faucet makes wash-up totally "hands-free" providing the
ultimate in sanitary protection and automatic operation. The OPTIMA Plus faucet
uses infrared technology to sense the user's presence and turn on a water supply
that has been pre-mixed to the desired water temperature. When the user's
hands are removed from the invisible beam of light, the water supply
automatically turns off. In addition, the faucet is powered by four "C" cell batteries
which eliminates the need to run any electrical lines to the system.
The Sloan EBF-615 or EBF-650 battery powered, sensor operated faucet comes
Sloan Valve Company warrants its EBF-615 and EBF-650 Faucets to be made of first class materials, free from defects of material or workmanship under normal
use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three
years (1 year for decorative finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which
prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims
will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's
products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE
COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
EBF-615
complete with an integral faucet and sensor assembly, control module, alkaline
batteries (Size C), and all mounting hardware. Back checks and a grid strainer
are also available as optional equipment. The installer should supply 3/8 inch
copper supply tube or flexible hose connections.
The following instructions serve as a guide when installing the Sloan EBF-615
or EBF-650 faucet. As always, good safety practices and care are recommended
when installing your new faucet. If further assistance is required, contact your
nearest Sloan Representative office or the Sloan Installation Engineering
Department at 1-888-SLOAN-14.

LIMITED WARRANTY

INSTALLATION INSTRUCTIONS

BATTERY POWERED
SENSOR OPERATED
LAVATORY FAUCETS
EBF-615
EBF-650
Battery Powered
Sensor Operated
Lavatory Faucets
Includes Instructions for
Installation of Optional
Back Checks
Made in the U.S.A.
ANSI/ASME A112.18.1M
Certified
EBF-650 I.I. — Rev. 1 (06/00)
Code No. 0816321

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBF-650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sloan EBF-650

  • Page 1: Installation Instructions

    (1 year for decorative finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty.
  • Page 2 MODEL EBF-650-A — 0.5 gpm (1.9 Lpm) Max. MODEL EBF-650-B — 2.2 gpm (8.3 Lpm) Max. MODEL EBF-650-B-2 — 2.2 gpm (8.3 Lpm) Max. MODEL EBF-650-C — 2.2 gpm (8.3 Lpm) Max. Laminar Flow MODEL EBF-650-C-2 — 2.2 gpm (8.3 Lpm) Max. Laminar Flow SPOUT...
  • Page 3: Prior To Installation

    PRIOR TO INSTALLATION The Sloan EBF-615 and EBF-650 battery powered, sensor operated faucets can Prior to installing the Sloan EBF-615 or EBF-650 faucet, install the items listed be supplied with two back checks. When connecting the faucet to a hot and cold below.
  • Page 4 Step 2 — Install Faucet Insert Faucet Sensor Cable, Pipe Nipple, and Mounting Studs through the 4 inch Use Step 2A for EBF-615 Faucet Model and Step 2B for EBF-650 Faucet Model. (102 mm) spread deck holes. Secure Faucet to deck using Slotted Mounting Step 2A —...
  • Page 5 CONTROL STRAIN MODULE RELIEF SLOT SENSOR CABLE GASKET (TO SPOUT) CIRCUIT BOARD COVER 1/8" PIPE NIPPLE 1/8" PIPE TO 3/8" TUBE COMPRESSION FITTING 3/8" SUPPLY TUBE PLUG IN THE LOCKING (NOT SUPPLIED) CONNECTOR FROM SENSOR INTO RECEPTACLE 3/8" SOLENOID VALVE COMPRESSION FITTING (TOP OUTLET) Figure 4...
  • Page 6 DO NOT over-rotate. Figure 8 The EBF-615 and EBF-650 Faucets are factory set to operate when hands are placed 4 to 5 inches (102 mm to 127 mm) from the sensor. If further adjustment is required, turn Range Potentiometer counterclockwise to decrease range or clockwise to increase range.
  • Page 7: Operation

    OPERATION 1. A continuous invisible beam of infrared light is emitted from the sensor located on the throat of the lavatory faucet. 2. As the user’s hands enter the beam’s effective range (beneath the spray head), the beam is reflected back into the sensor receiver and activates the solenoid valve.
  • Page 8: Troubleshooting Guide

    (+) and negative (-) symbols shown on the bottom of the battery compartment. Reinsert the Battery Compartment into the Control Module. The If further assistance is required, please contact the Sloan Valve Company troubleshooting LED should flash RED when a user is detected.
  • Page 9: Battery Replacement Procedure

    Before cleaning the Screen Filter, turn off the water supply at the supply stop(s). Activate the faucet to relieve any pressure in the system. Unscrew the Filter Plug The Sloan Optima Plus EBF-615 and EBF-650 Battery Powered, Sensor and remove it from the Solenoid Valve Housing. Carefully pull the Screen Filter Operated Lavatory faucets are furnished with (4) “C”...
  • Page 10: Parts List

    Faucet Mounting Kit for EBF-615 includes 3/8¨ RB Water Supply Tube, Base Gasket, Spacer, Washer, 9/16¨ Lockwasher, 1/4¨ NPSM Hex Nut, and ETF-547 Compression Fitting Connector ETF-546-A Faucet Mounting Kit for EBF-650 includes Base Gasket, two (2) Slotted Mounting Washers, two (2) Wing Nuts, and ETF-547 Compression Fitting Connector ETF-547 1/8¨...
