Sloan ETF-800 Installation Instructions Manual

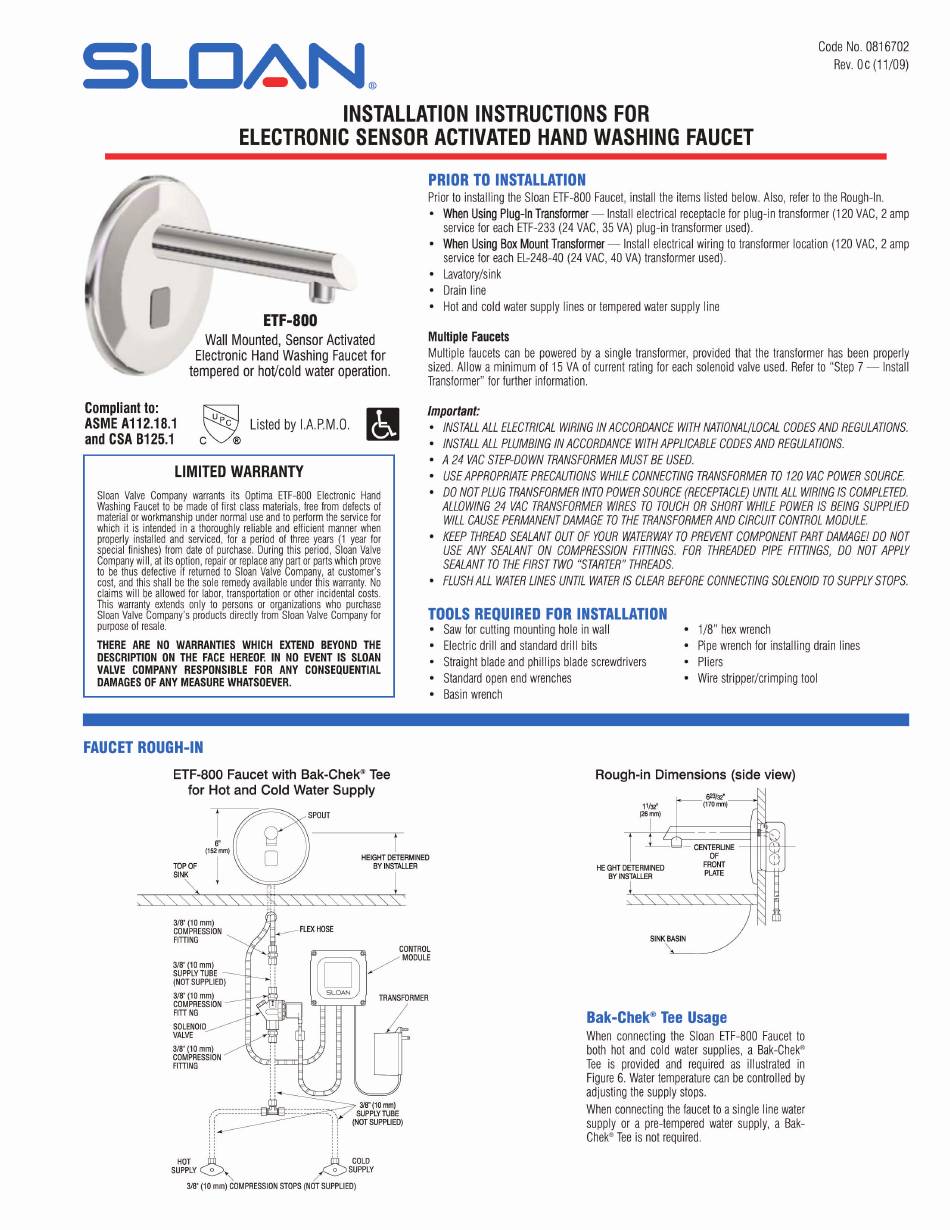

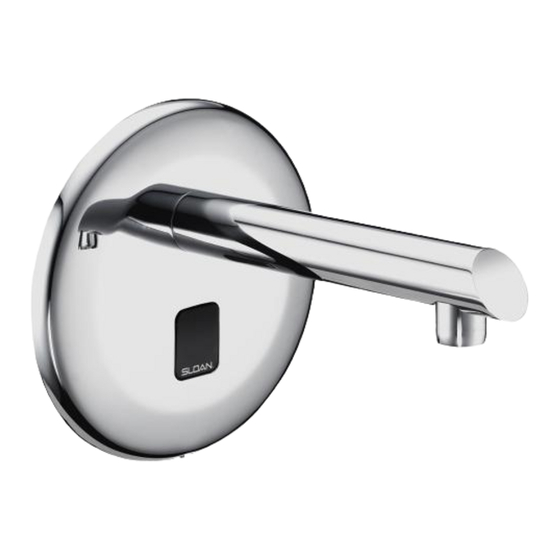

Electronic sensor activated hand washing faucet
Hide thumbs
Also See for ETF-800:
- Installation instructions manual (8 pages) ,
- Installation instructions manual (8 pages) ,
- Installation instructions manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Sloan ETF-800
Summary of Contents for Sloan ETF-800
- Page 2 Exploded Assembly View WALL ELECTRICAL BOX (4” X 4”) MOUNTING PLATE FAUCET/WALL PLATE ASSEMBLY PLASTER RING SENSOR CABLE FLEX HOSE SET SCREW Determine Mounting Location and Electrical Box Installation Diagram Cut Mounting Hole FRONT VIEW Measure and mark mounting hole location on wall. INSTALL PLASTER RING SO THAT ELECTRICAL BOX...
- Page 3 Install Electrical Box and Mounting Connect Flex Hose to Faucet Plate to Wall Note: Refer to Exploded Assembly View on Page 2.. Connect Flex Hose to Faucet. Tighten fitting securely. Position and hold Electrical Box with Plaster Ring behind wall. Fasten Mounting Plate to Plaster Ring using four (4) screws.
- Page 4 All Sloan transformers are 50/60 Hz. BOX MOUNT TRANSFORMER Other transformers (not supplied by Sloan) may be used provided they meet requirements Important: DO NOT supply power to primary side of Transformer until wiring is completed. for Class 2 transformers.
- Page 5 EXTENSION CABLES to 102 mm) of Cable to extend into the Control Module. Extension Cables are available as an option from Sloan to allow for installing the Control Insert each Conduit Cable into a strain relief slot in the Module remote from the Faucet Spout and Solenoid Valve. Refer to the Parts List for Control Module.
- Page 6 Range Adjustment The OPTIMA ETF-800 Faucet is factory set to operate when hands are placed 4 Time Out Adjustment The Faucet Time Out Setting determines the maximum time the Faucet will run to 5 inches (102 to 127 mm) from Sensor. This range should be satisfactory upon continuous activation.
- Page 7 TROUBLESHOOTING GUIDE INDICATOR: If GREEN LED illuminates BUT does NOT change to RED when hands are placed in the Sensor’s detection zone: Note: Remove Cover from Control Module to check diagnostic lights. CAUSE: Sensor range is set too short. 1. PROBLEM: No water is delivered when Faucet is activated. SOLUTION: Increase Sensor detection range.
- Page 8 ETF-1009-A Solenoid Valve Repair Kit, Includes Replacement Filter If further assistance is required, please contact the Sloan Valve Company Installation Engineering Department at 1-888-SLOAN-14 (1-888-756-2614). NOTICE: The information contained in this document is subject to change without notice. SLOAN VALVE COMPANY • 10500 Seymour Avenue • Franklin Park, IL 60131 Phone: 1-800-982-5839 or 1-847-671-4300 •...
