INSTALLATION INSTRUCTIONS AND USER MANUAL FOR
EAF-700

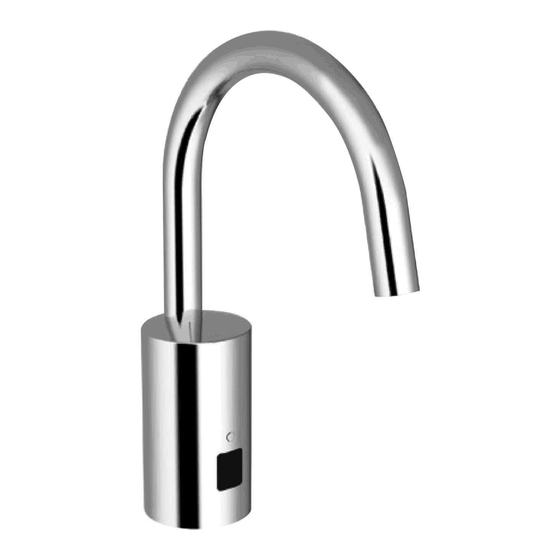

AC Powered, Sensor Activated Electronic
Gooseneck Hand Washing Faucets
EAF-750
Battery Powered, Sensor Activated Electronic
Gooseneck Hand Washing Faucets
Unless otherwise noted, Sloan Valve Company warrants its product, manufactured and sold for commercial for industrial uses, to be free from defects in material and
workmanship for a period of three (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase.
During this period, Sloan Valve Compnay will, at its option repair replace, or refund the purchase price of any product which fails to conform with this warranty under
normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer's cost. No
claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products
directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH ExTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEqUENTIAL DAMAGES
OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
Prior to installing the Sloan Optima EAF-700 Series Faucets,
install the items listed below. Also, refer to rough-in illustrations.
• Lavatory/sink
• Drain Line
• Hot/Cold Water Supply Lines or Tempered Supply
IMPORTANT:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH
APPLICABLE CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
TOOLS REQUIRED FOR INSTALLATION
• 13 mm open end wrench or nut driver for faucet retainer nut
SLOAN
®
EAF GOOSENECK SERIES FAUCETS
LIMITED WARRANTY
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT
COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS.
Trim Plates
When the EAF Faucet is installed on a sink that has three (3) hole
punchings, a trim plate should be used. Trim Plates must be specified and
ordered separately.
SFP-11 Trim Plate for 4" (102 mm) Centerset Sink
SFP-22 Trim Plate for 8" (203 mm) Centerset Sink
• 5/8" open end wrench for female end of flex hose
Code No: 0816409
Rev. 1 (07/11)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAF-700 and is the answer not in the manual?

Questions and answers

Related Manuals for Sloan EAF-700

Summary of Contents for Sloan EAF-700

  • Page 1 (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Compnay will, at its option repair replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service.
  • Page 2 FAUCET ROUGH-IN Model EAF-700/750 1.5 gpm (5.7 Lpm) Max. Flow† Faucets with Hot/Cold Water Supply 10-1/32” SPOUT SPOUT (255 mm) MIXING LEVER 24° 5-7/8” (CAN BE SET AND 0 mm) (147 mm) 3-15/16” REMOVED) (100 mm) HOLE 5-11/32” 1-3/16” (30 mm) (151 mm) 1-3/16”...

  • Page 3: Connection To Water Supply

    Tighten the flex hose (with strainer in place) securely to the supply. Install strainer and flex hose onto supply stop. Open supply stop(s). 3A - EAF-700 MODELS – PLUG ADAPTER INTO RECEPTACLE ELECTRICAL CONNECTION FOR UP TO SIx (6) FAUCETS USING ONE ADAPTER 6 VDC...
  • Page 4 4 - START-UP Remove label from faucet sensor. Activate faucet by pressing the button one (1) time, then immediately step away. Faucet will run water for 4 seconds. Wait 10 seconds and then the faucet is ready to use. SET AND FIX TEMPERATURE (OPTIONAL)
  • Page 5 HOT LIMIT STOP ADJUSTMENT LIMIT THE MAxIMUM WATER TEMPERATURE. NOTE: THIS DOES NOT TAKE THE PLACE OF AN ASSE 1070 CERTIFIED MIxING DEVICE. BUT IS AN ADDED MEASURE TO LIMIT DELIVERY OF HOT WATER.
  • Page 6 SENSOR RANGE ADJUSTMENT FACTORY SETTING IS APPROPRIATE FOR THE MAJORITY OF APPLICATIONS AND SHOULD NOT REqUIRE RESETTING UNLESS UNDER ExTREME SITUATIONS. 2x + 1x5 Sec. FACTORY DEFAULT = 6 5 Sec. 1 x ( 1x, 2x,...,5x)
  • Page 7 12/24 LINE PURGE FEATURE This feature will operate the faucet every 1x 24 sec 12 or 24 hours since last use, if not used to prevent stagnant water conditions. Default purge duration is two minutes. DEACTIVATE Consult factory regarding other timing options.

  • Page 8: Operation

    OPERATION As the user’s hands enter the beam’s effective range, the beam is reflected back into the sensor receiver and activates the solenoid valve allowing water to flow from the faucet. Water will flow until the hands of the user are removed or until the faucet reaches its automatic time out limit setting.

  • Page 9: Technical Data

    D. Faucet is not working properly. 2. Faucet delivers water in an uncontrolled manner. A. Reflection. Contact Sloan Valve Company Installation Engineering Department. 5. Faucet does not stop delivering water or contrinues to drip after user is Remove reflective surface.

  • Page 10: Parts List

    Plug-in Voltage Adapter, US Plug The information contained in this document is subject to change without notice. SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60133 Phone: 1-800-9-VALVE-9 (1-800-982-5839) • Fax: 1-800-447-8329 • www.sloanvalve.com Copyright © 2011 SLOAN VALVE COMPANY...
