EAF-100-ISM-DPU-IC
EAF-100-ISM
The information contained in this document is subject to change without notice.
Repair Parts and Maintenance Guide
Optima

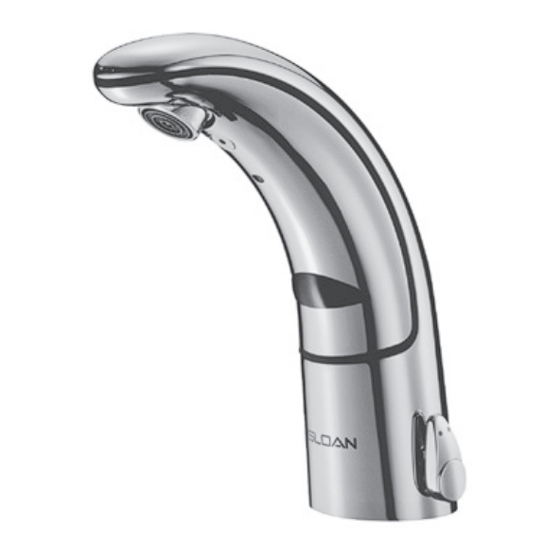

EAF-100 Faucet
®

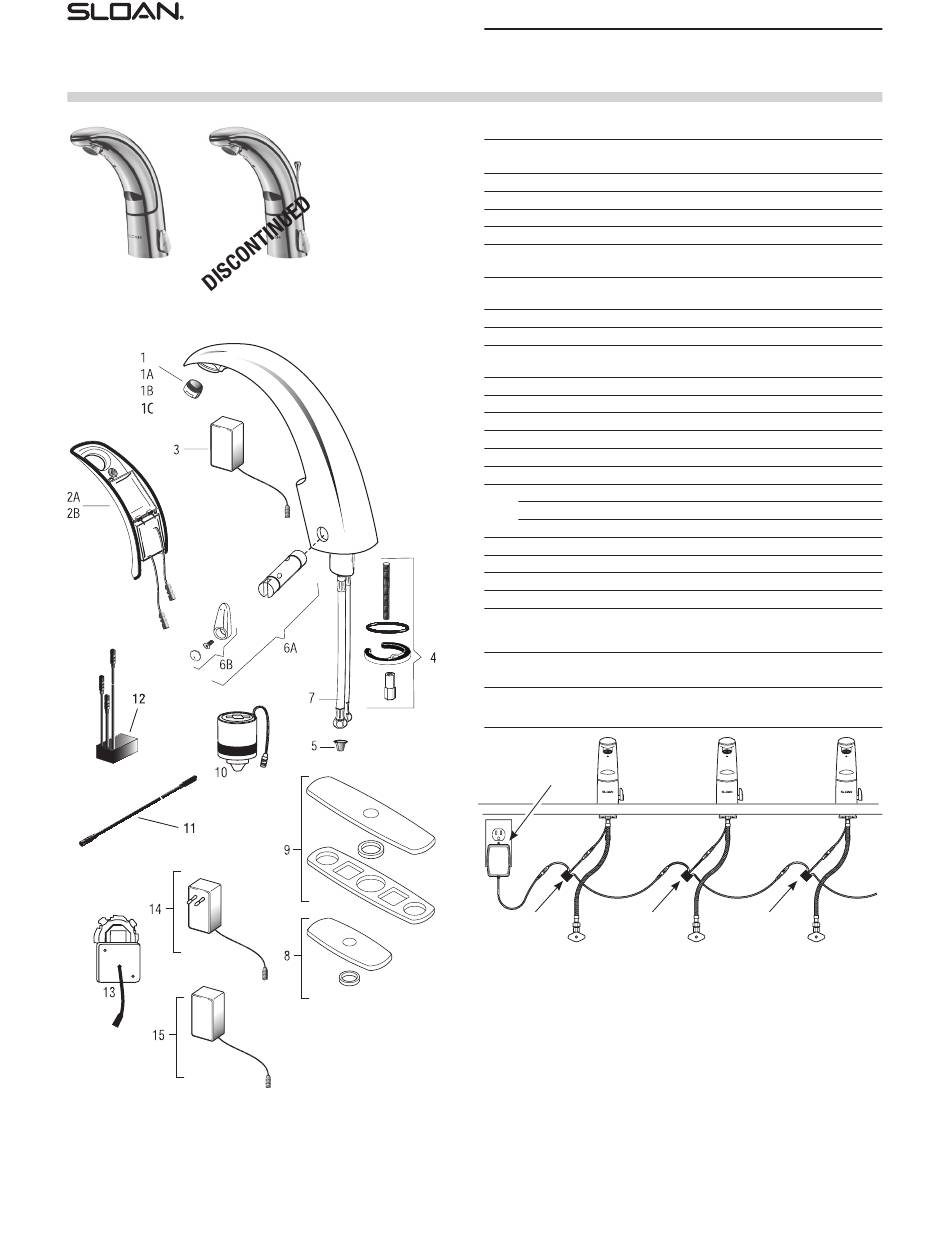

PARTS LIST—EAF-100 FAUCETS
Item
No.
Code No. Part No.
Description
1A .
0335021
EAF-22
1.5 gpm (5.7 Lpm) Aerator Spray Head
1B.
0335008
EAF-10
2.2 gpm (8.3 Lpm) Aerator Spray Head
0335010
1C.
EAF-12
0.5 gpm (1.9 Lpm) Multi-Laminar Spray Head
0335029
1D.
EAF-51
0.35 gpm (1.3 Lpm) Spray Head (Multi-Lam)
0335004
2A.
EAF-6-A
Sensor Standard Throat Plate Assembly
(Plug-in Adapter Models)
0335005
2B.
EAF-7-A
Sensor standard throat plate assembly with i.q.
click (Plug-in adapter models, IC variation)
3.
0335009 EAF-11
90-264 VAC/6.75 VDC Plug-In Adapter (US)
4.
0335000 EAF-1
Faucet Mounting Kit
0335007 EAF-9
5.
Strainer (Filter) (One per package) - Note: 2
required for ISM Models
6A.
3335118 EAF-1022-A Side Mixer Cartridge & Handle
3335011 EAF-1002
6B.
Handle Repair Kit
3335023
7.
EAF-1008
15" (330 mm) Flexible Supply Hose (1)
8.
0362011
SFP-11
Trim Plate for 4" Center-set Sink
9.
3362022
SFP-22
Trim Plate for 8" Center-set Sink
10.
0335001
EAF-2
Solenoid (Solenoid (6 mm hex recess))
11.
0335024
EAF-24-A
11-13/16" (300 mm) Extension Cable
0335025
EAF-25-A
47-1/4" (1200 mm) Extension Cable
EAF-17-A
126" (3200 mm) Extension Cable
0335015
12.
EAF-44-A
Power Splitter
0335044
†
13.
0335037 EAF-37
6 VDC Box Mount Adapter
0335038 EAF-38
14.
90-264 VAC/6.75 VDC Plug-In Adapter (EURO)
0335039 EAF-39
15.
90-264 VAC/6.75 VDC Plug-In Adapter (UK)
† EAF-44 replaces the separate EAF-23-A Splitter Cable and (Discontinued )EAF-28 Capacitor, which is sold
separately.
EAF-1001 Mixer Handle Assembly and Cartridge (prior to 2004) Discontinued
EAF100 faucets require EAF44 POWER SPLITTER in ganging (or daisy chain)
application.
Electrical Connection for up to Six (6) Faucets
Using One (1) Adapter
(3)
6 VDC PLUG-IN
ADAPTER
(12)
(12)
POWER
POWER
SPLITTER
SPLITTER
†
* EAF-100 faucets require use of EAF-44-A (12) Power Splitter in Ganging (Daisy Chain)
Applications.
238
†
TO ADDITIONAL
FAUCETS
(12)
(6 MAX.)
POWER
SPLITTER
†
†
