Sensor-
Operated,
Deck-Mount
Foam Soap
Dispenser
Installation & Operating
Instruction Manual
Thoroughly read this instruction booklet before
installing or operating the Sloan dispenser.
Keep the Installation & Operating
Instruction Manual with other product
information for future reference.

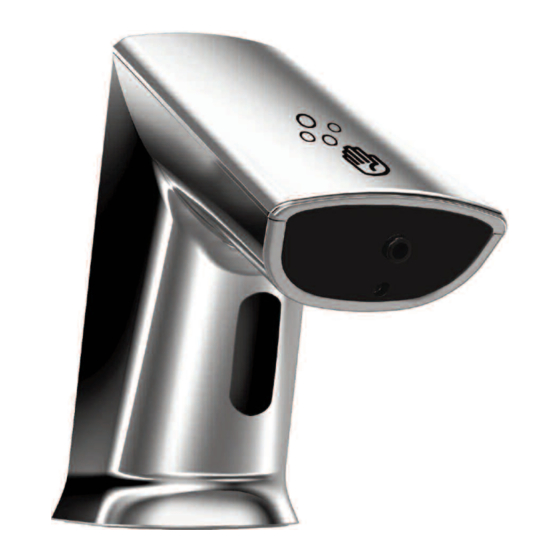

Sensor-Operated Dispenser
ESD-400 Sensor-Operated, Deck-Mount Foam
Soap Dispenser
Specifications
Width
Height
Depth
Dispenser Rate
Capacity
Specifications are subject to change without
notice.
Table of Contents
Parts/Dimensions
Installation Instructions
Operation
Maintenance/Replacements
Emergency Measures
Consumables
1.747" (44.37 mm)
4.40" (118 mm)
4.50" (114.3 mm)
Approximately
1.2 mL per use
1000 mL bottle
Code. 0816685
Rev.1 (02/15)
Page
2
3-5
6
6-7
8
8
Advertisement
Related Manuals for Sloan ESD-400
Summary of Contents for Sloan ESD-400
- Page 1 Installation & Operating Sensor- Instruction Manual Operated, Thoroughly read this instruction booklet before installing or operating the Sloan dispenser. Deck-Mount Keep the Installation & Operating Instruction Manual with other product Foam Soap information for future reference. Sensor-Operated Dispenser Dispenser ESD-400 Sensor-Operated, Deck-Mount Foam...
- Page 2 OVERVIEW OF PARTS AND DIMENSIONS Note: Deck mount foam soap dispenser shown mounted with faucet for reference. 1.91” (48.5 mm) Foam soap dispenser 4.50” Foam soap (114.3 mm) dispenser 4.40” (111.8 mm) Liquid soap and air tubes 2.25” 9.25” (57 mm) (235 mm) Foam tank case unit...
- Page 3 INSTALLATION Check that all parts are included in original where the unit may be exposed to direct sunlight. packaging for proper installation. Install the unit on a sturdy horizontal surface that is in ambient temperature (0-35°C/32°-95°F). Package contents: Make sure foam tank case unit will be accessable Foam soap dispenser (1) from the underside of sink.
- Page 4 INSTALLATION Air tube from foam Foam soap tube STEP 3. soap dispenser from foam soap dispenser Install foam tank case unit to wall Before installing on the wall, check that no other Tube clamps piping and wiring is running behind hole Air tube locations.
- Page 5 Connect wiring Protect wire connections Connect the relay harness, which comes from the Feed the connectors of the relay harness and bottom of the foam tank base case unit, with the hand sensor harness into the connector case as hand sensor harness, which comes from the shown in illustration.
- Page 6 OPERATION MAINTENANCE Operation Replacing Soap Mount soap bottle to the foam tank case unit. The foam soap indicator light on the Press the reset switch, which begins the pumping foam soap dispenser blinks and stops dispensing cycle to purge air from the tube. This step may be when the soap bottle in the foam tank case unit required twice to completely prime the unit.
- Page 7 Cleaning the hand sensor Cleaning foam soap dispenser Clean the hand sensor periodically (about once a If the tip of the soap nozzle is clogged, the month) according to the following procedure: dispensing capability may fail or function partially. Clean the nozzle according to the following •...
- Page 8 Sensor Deck-Mount Foam Soap (Rose) 5700755 The information contained in this document is subject to change without notice. Sloan Valve Company 10500 Seymour Avenue Franklin Park, IL 60131-1259 Phone: 877-652-6726 Fax: 800-447-8329 www.sloanvalve.com ©2015 Sloan Valve Company Code. 0816685 Rev.1 (02/15)
