INSTALLATION INSTRUCTIONS FOR ELECTRONIC
(Models shown
with ISM Integral
Spout Mixer)

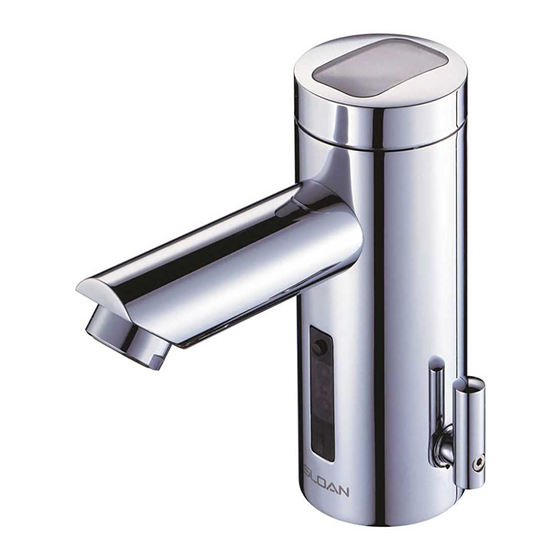

EAF-275 Series
Solar Powered with Battery
Backup Sensor Activated
Lavatory Faucets
Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3) years
(one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the
purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve
Company, at customer's cost. No claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from
Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
Prior to installing the Sloan Optima EAF-275/EAF-250/EAF-200/EAF-225 Series Faucets,
install the items listed below. Also, refer to rough-in illustrations.
• Lavatory/sink
• Drain line
• Hot and cold water supply lines or pre-tempered water supply line
Important:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE
CODES AND REGULATIONS.
TOOLS REQUIRED FOR INSTALLATION
• 13 mm open end wrench or nut driver for faucet retainer nut

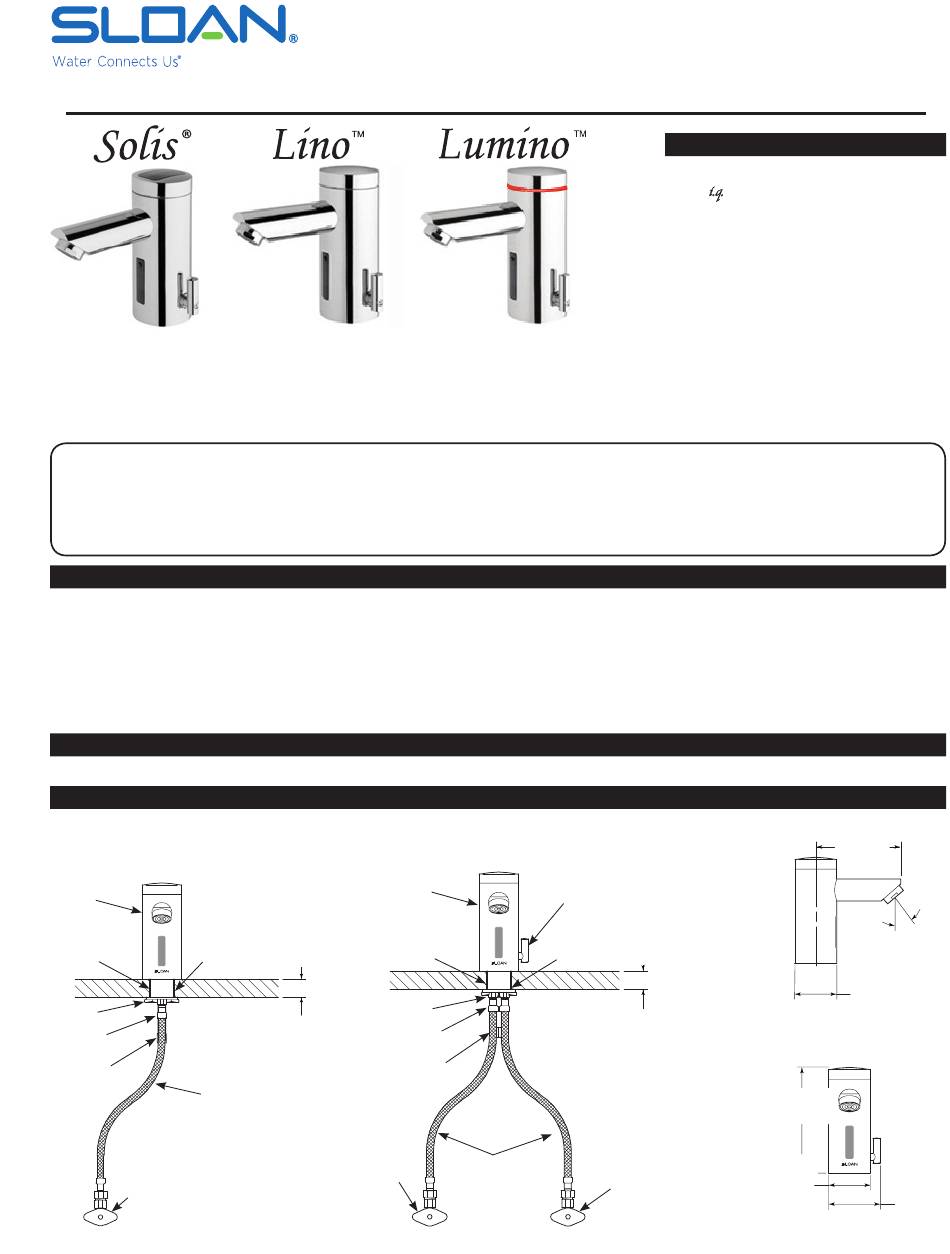

FAUCET ROUGH-IN
MODELS EAF-200/250/275
0.5 gpm (1.9 Lpm) Max. Flow
Faucets with Single Line Water Supply
SPOUT
1-3/16" (30 mm) MIN.
DIA. HOLE REQUIRED
O-RING
GASKET
RETAINER
NUT
13" (330 mm)
LONG FLEX HOSE
If a connection to separate
hot and cold water supplies
is desired, then a Bak-Chek
TEMPERED
tee fitting (not supplied) must
SUPPLY
be used prior to connecting
SENSOR-ACTIVATED LAVATORY FAUCETS
EAF-250 Series
Battery Powered, Sensor
Activated Lavatory Faucets
EAF-200 Series
Adapter Powered, Sensor
Activated Lavatory Faucets
Faucets with Hot and Cold Water Supply
SPOUT
O-RING
GASKET
1-1/2" (38
RETAINER
mm) MAX.
DECK
THICKNESS
HOT
®
SUPPLY
to the faucet.
EAF-225 Series
Adapter Powered, Sensor Activated
Lavatory Faucets with Temperature
Indicating Illumination
LIMITED WARRANTY
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT COMPONENT
PART DAMAGE! DO NOT USE ANY SEALANT ON COMPRESSION FITTINGS.
Trim Plates
When the EAF Faucet is installed on a sink that has three (3) hole punchings, a Trim Plate
should be used. Trim Plates must be specified and ordered separately.
ETF-312-A Trim Plate for 4" (102 mm) Centerset Sink
ETF-510-A Trim Plate for 8" (203 mm) Centerset Sink
• 3/4" open end wrench for female end of flex hose
*
MODELS EAF-200/225 /250/275
0.5 gpm (1.9 Lpm) Max. Flow
MIXING LEVER
(Can Be Set and
1-3/16" (30 mm) MIN.
DIA. HOLE REQUIRED
NUT
13" (330 mm)
LONG FLEX HOSE
*EAF-225 Series Faucets are furnished with a 1.5 gpm (5.6 Lpm) spray head
FAUCET VARIATIONS
-ISM Integral Spout Mixer (All Series)
-IC -Click Feature (All Series)
-DPU
Drain Pop Up (EAF-200/225/250 Series)
-P Plug-in Transformer/Adapter (EAF-200 Series)
-LT
Less Transformer/Adapter (EAF-200 Series)
Removed)
1-1/2" (38
mm) MAX.
DECK
THICKNESS
5-11/32"
(136 mm)
2-1/16"
COLD
(52 mm)
SUPPLY
Code No. 0816490
Rev. 6 (05/16)
4-11/32"
(110 mm)
24º
2-1/16"
(52 mm)
2-9/16"
(65 mm)
