Sloan EAF-3X0 Series Installation Instructions Manual

Sloan EAF-3X0 Series Installation Instructions Manual

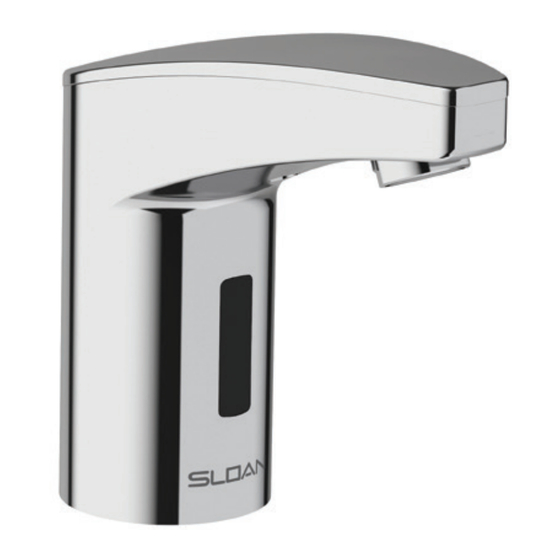

Electronic, sensor-activated lavatory faucets

Advertisement

Quick Links

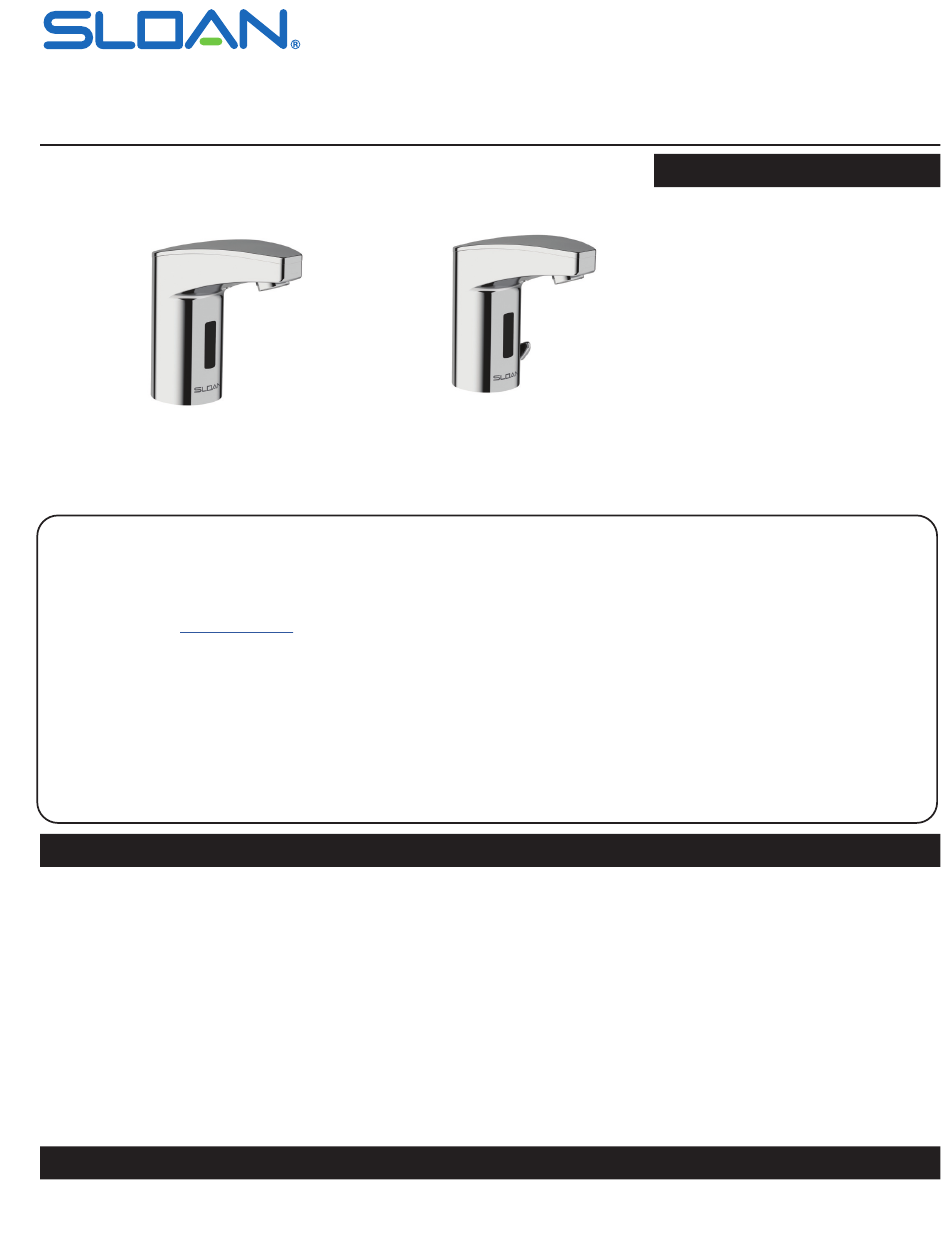

INSTALLATION INSTRUCTIONS FOR EAF-3X0 SERIES ELECTRONIC,
EAF-3X0
Sloan Valve Company ("Sloan"), warrants its products against defects in materials and workmanship, excluding damage
caused by matters beyond Sloan's reasonable control. Instructions for filing claims can be found in the Limited Warranty which
can be obtained at
www.Sloan.com
your defective product, or provide a refund, as your exclusive remedy. This is only a general summary of Sloan's Limited War-
ranty so it is important to note that the specific terms, conditions, limitations and exclusions, including the duration of warranty
coverage for your particular Sloan product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject
to applicable laws in your country, state, province or other jurisdiction—and disputes arising under the Limited Warranty are to
be resolved by binding arbitration unless you provide Sloan with an opt-out notice no later than 30 days after your purchase
date. In case of a conflict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.
pose of resale. This warranty does not cover the life of batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY
CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

PRIOR TO INSTALLATION

Prior to installing the Sloan OPTIMA Plus® EAF-3X0 Series
faucets, install the items listed below. Also, refer to rough-in
illustrations.
• Lavatory/sink
• Drain line
• Hot/Cold water supply lines or pre-tempered water supply
line
IMPORTANT:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE
WITH APPLICABLE CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING
CONNECTIONS.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO

Tools Required for Installation

• 13mm open wrench or nut driver for faucet retainer nut
• 3/4" open end wrench for female end of flex hose
SENSOR-ACTIVATED LAVATORY FAUCETS
EAF-3X0-ISM
SLOAN

LIMITED WARRANTY SUMMARY

®
or by requesting a free copy by telephone at 888.756.2614. Sloan will repair or replace
Faucet Variations
-ISM
PREVENT COMPONENT PART DAMAGE! DO NOT USE ANY
SEALANT ON COMPRESSION FITTINGS.
Trim Plates
When the EAF faucet is installed on a sink that has three (3)
hole punchings, a trim plate should be used. Trim plates must be
specified and ordered separately.
ETF-312-A
Trim Plate for 4" (102 mm) Centerset Sink
ETF-510-A
Trim Plate for 8" (203 mm) Centerset Sink
Code No: 0816654
Rev. 5 (07/22)
Integral Spout Temperature
Mixer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAF-3X0 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sloan EAF-3X0 Series

  • Page 1 This warranty does not cover the life of batteries. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
  • Page 2 33.5 mm 103 mm Ø 2-1/8” 45 mm 54 mm Side View Front View Side View FAUCET ROUGH-IN 13-49/64” 2-1/8” 350 mm 5-5/8” Side View EAF-3X0 EAF-3X0-ISM 54 mm 143 mm Faucets with Single Line Water Supply Faucets with Hot/Cold Water 4-3/64”...
  • Page 3 2 - SLIDE GASKET OVER FLEX HOSE(S) AND SECURE O-RING FAUCET GASKET FAUCET 13 MM RETAINER Flex Hose FLEX 3/8” Compression Connector HOSE(S) Gasket 3 - INSTALL STRAINER AND FLEX HOSE ONTO SUPPLY STOP. OPEN SUPPLY STOPS. Strainer/ IMPORTANT: Flush dirt, debris, and sediment from supply line(s) before connecting flex hose(s). Filter Install strainer Open supply stop(s).
  • Page 4 5- REMOVE LABEL FROM SENSOR Remove label from sensor window. Sensor Label 6 - ACTIVATE FAUCET Activate Faucet by holding installation instructions approximately 1-1/2” (38 mm) in front of the sensor window until red light appears, then remove instruction sheet. Faucet will run for four (4) seconds and the range will automatically adjust to its environment.
  • Page 5 8 - BATTERY REPLACEMENT Note: Replace battery when RED LED indicator flashes each Install new battery. A10 / A20 A10 / A20 time faucet is in use or when faucet stops functioning. Close supply stop(s). Replace cover Flex Hose and tighten screw with hex wrench.
  • Page 6 SENSOR RANGE ADJUSTMENT After inserting the new battery and opening the supply stops, wait 15 seconds, remove and then reinsert the battery. IR activation (see page 5). To enter programming Cover IR-Click (bottom half of mode place finger on IR-Click (covering bottom 1x 2 Sec.
  • Page 7 While cleaning the bathroom tile, protect the faucet from any splattering of cleaner. Acids and cleaning fluids will discolor or remove chrome plating. When assistance is required, please contact Sloan Technical Support at: 10 Sec. 1. Problem Faucet does not function.
  • Page 8 EAF-11 EAF-11 Plug-In Voltage Adapter, US Plug (Only with EAF-300 models) Sloan 10500 Seymour Avenue Franklin Park, IL 60131 P: 847-671-4300 / 800-9-VALVE-9 F: 847-671-4380 / 800-447-8329 customer.service@sloanvalve.com sloan.com © 2022 SLOAN VALVE COMPANY Code No.0816654 – Rev. 5 (07/22)

This manual is also suitable for:

Eaf-3x0Eaf-3x0-ism

Table of Contents
