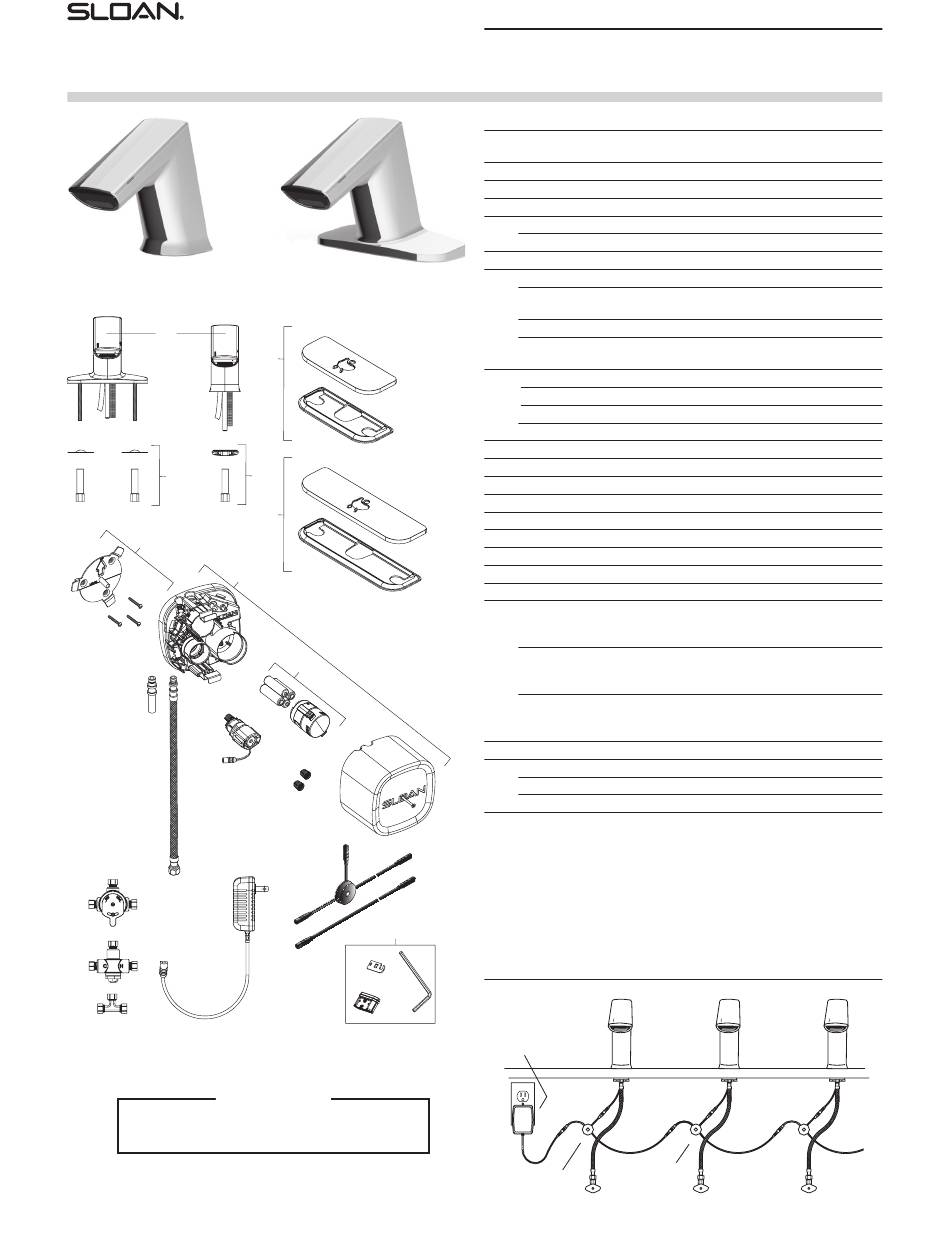

Sloan BASYS Repair Parts And Maintenance Manual

EFX-3XX
1
8B
2
6
14 15
11 7
12
13
IMPORTANT
Not for installation on a metal sink or
deck (i.e. stainless steel or cast metal).
The information contained in this document is subject to change without notice.
EFX-6XX
9
8A
10
3
4
5
17
18
16
Repair Parts and Maintenance Guide
BASYS
®
Capacitance Sensing Activated
PARTS LIST—BASYS FAUCETS
Item
No. Code No. Part No. Description
0324002 EFX-2
1. Standard Crown
2. 0324036 EFX-36 Control Module Mounting Kit
3. 3324113 EFX-8 Battery Pack
3324114 EFX-13-A
4. Solenoid Valve Caddy 0.5 gpm (1.9 Lpm)
3324115 EFX-14-A
Solenoid Valve Caddy 1.5 gpm (5.7 Lpm)
5. 0324019 EFX-19 Filter / Strainers
6. 3324105 EFX-1003-A Control Module Assembly – 0.5 gpm (1.9 Lpm)
3324106 EFX-1004-A Control Module Assembly with Turbine –
0.5 gpm (1.9 Lpm)
3324107 EFX-1005-A Control Module Assembly – 1.5 gpm (5.7 Lpm)
3324108 EFX-1006-A Control Module Assembly with Turbine –
1.5 gpm (5.7 Lpm)
7. 0324031 EAF-31 120 VAC/6.75 VDC Plug-in Voltage Adapter
0335041 EAF-41 Plug-in Voltage Adapter (EU)
0335039 EAF-39 Plug-in Voltage Adapter (UK)
0335037 EAF-37
Box Type Voltage Adapter
0335000 EAF-1
8A. Faucet Spout Mounting Kit (Pedestal)
8B. 0324021 EFX-21-A Faucet Spout Mounting Kit (Integrated Base)
9. 3324100 EFX-20-A 4-inch (102 mm) Centerset Base Plate Kit
10. 3324101 EFX-26-A 8-inch (203 mm) Centerset Base Plate Kit
3326009 MIX-60-A
11. Below Deck Mechanical Mixing Valve
0326045 MIX-135-A
12. Below Deck Thermostatic Mixing Valve
13. 0324033 ETF-617-A Bak-Chek
14. 0324034 EFX-33 Inlet Hose Fitting
3324102 EFX-34
15. Flexible Supply Hose 18" (45 mm)
3324104 EFX-1002-A
16. 0.5 gpm (1.9 Lpm) Multi-Lam Spray Insert,
includes: insert, o-ring, insert removal tool, and
hex key
3324103 EFX-1001-A
1.5 gpm (5.7 Lpm) Aerated Stream Insert
includes: insert, o-ring, insert removal tool, and
hex key
3324102 EFX-1000-A 1.5 gpm (5.7 Lpm) Laminar Stream Insert
includes: insert, o-ring, insert removal tool, and
hex key
17. 0335023 EAF-23-A Splitter
18. 0335024 EAF-24-A 11-13/16" (300 mm) Extension Cable
0335025 EFX-25-A 47-1/4" (1200 mm) Extension Cable
0335015 EFX-17-A
126" (3200 mm) Extension Cable
NOTE: If changing flow rate, caddy and spray insert must be changed in conjunction.
Manufactured by Sloan Valve Company under one or more of the following U.S. Patents: 7,690, 623; 7,069,941;
6,619,320.
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
ADAPTER
DAISY CHAIN
DAISY CHAIN
ELECTRICAL
ELECTRICAL CABLE
CABLE
154
Tee
®
TO ADDITIONAL
FAUCETS
(6 MAX.)
