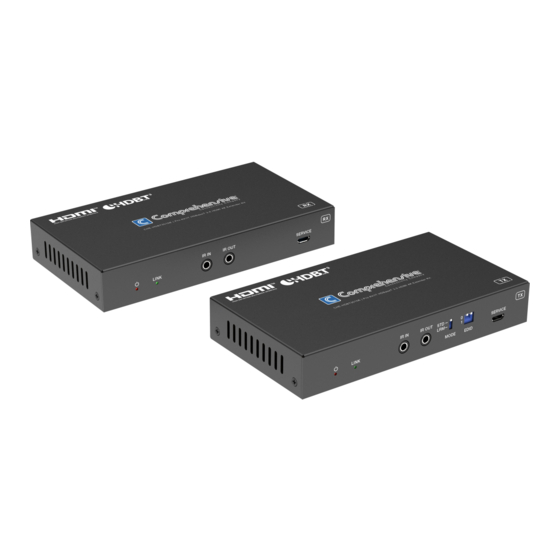

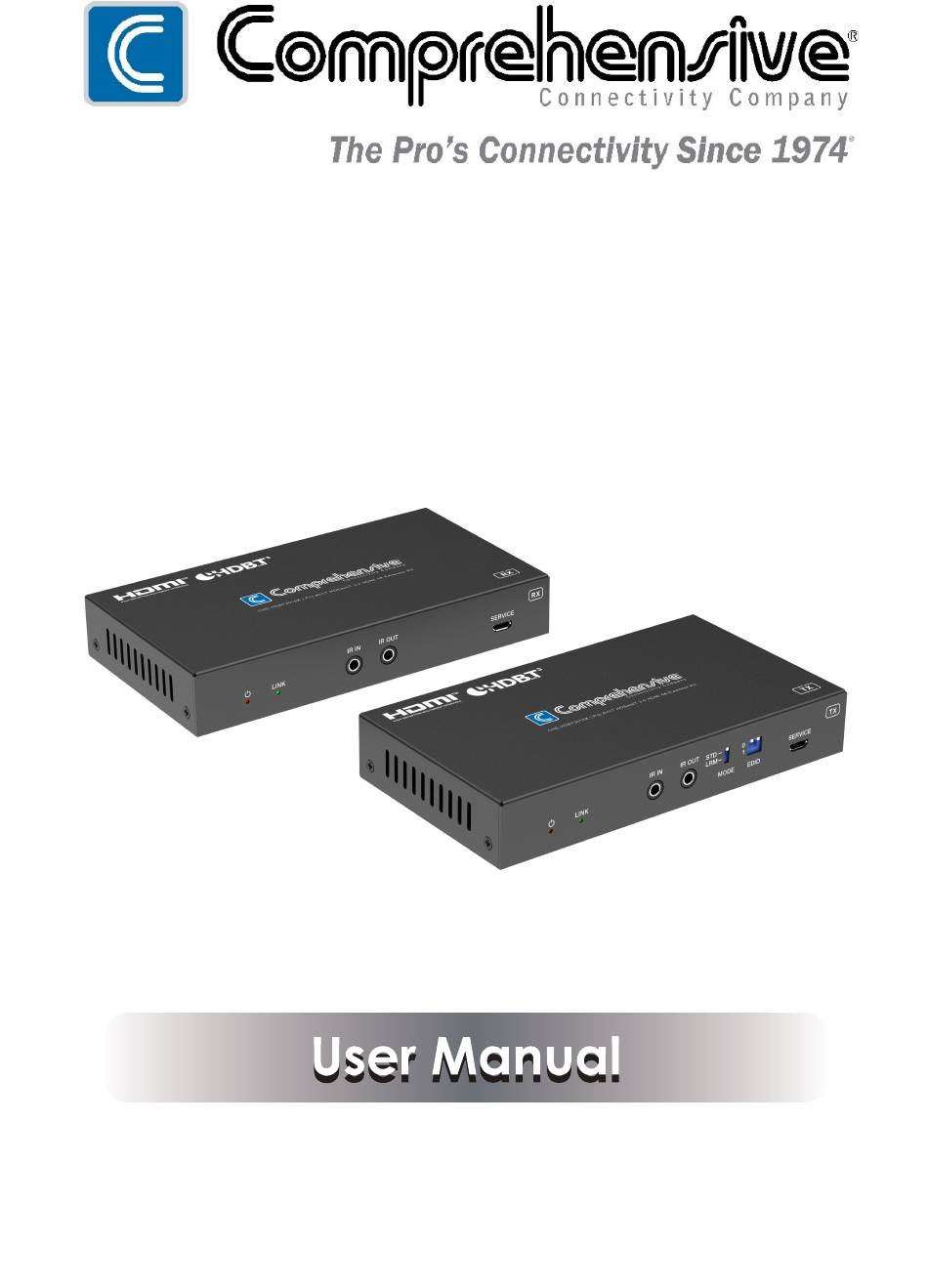

- Page 1 CHE-HDBT3010K Pro AV/IT Integrator Series™ HDBaseT 3.0 HDMI 4K 60Hz 4:4:4 with USB 2.0, Audio, RS232 Extender Kit up to 330ft VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, RS-232, bi-directional IR, and USB 2.0 signals up to 328ft / 100m via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The Transmitter supports HDMI input and audio de-embedding. The Receiver supports HDMI output and audio de-embedding. -
Page 4: Package Contents
3. Package Contents ① 1 × HDBaseT 3.0 Extender (Transmitter) ② 1 × HDBaseT 3.0 Extender (Receiver) ③ 1 × IR Blaster Cable (1.5 meters) ④ 1 × IR Receiver Cable (1.5 meters) ⑤ 2 × 3pin-3.81mm Phoenix Connectors (Male) ⑥... - Page 5 Connection Input: 1 × HDMI IN [Type A, 19-pin female] Outputs: 1 × HDBaseT OUT [RJ45 connector] 1 × L/R OUT [3.5mm Stereo Mini-jack] Controls: 1 × IR IN [3.5mm Stereo Mini-jack] Transmitter 1 × IR OUT [3.5mm Stereo Mini-jack] 1 ×...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel IR IN IR OUT SERVICE LINK MODE EDID HDBaseT OUT HDMI IN USB HOST L/R OUT RS-232 DC 24V ON OFF Name Function Description Power LED Red LED indicates that the Transmitter is powered on. ▪... - Page 7 Used for EDID setting: 00- Copy display’s EDID (as factory default) EDID DIP 01- 4K30 4:4:4 switch 10- 1080p60 4:4:4 11- 1200p60 4:4:4 SERVICE Firmware update port. HDBaseT output port, connected to the HDBaseT IN port of HDBaseT Receiver with a CAT6A/7 cable. It is used for various signals pass-through.
-
Page 8: Receiver Panel
5.2 Receiver Panel IR IN IR OUT SERVICE LINK HDBaseT IN HDMI OUT L/R OUT RS-232 DC 24V ON OFF Name Function Description Power LED Red LED indicates that the Receiver is powered on. ▪ Light on: Transmitter and Receiver are in good connection status. ▪... -
Page 9: Ir Pin Definition
Name Function Description DC 24V/1A power supply input port. Note that the extender supports POC function, it means that either DC 24V transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply. POC switch Use the switch to turn on/off POC function. -
Page 10: Application Example
7. Application Example IR Receiver IR Blaster IR IN IR OUT SERVICE LINK MODE EDID Transmitter HDBaseT OUT HDMI IN USB HOST L/R OUT RS-232 DC 24V HDMI Matrix with DVD or Blu-ray Player Speakers RS-232 function CAT6A/7 cable Keyboard Speakers Mouse Power Supply...
