CHE-HDF18G01
Pro AV/IT HDMI 18G Fiber Extender TX/RX Kit up to 3300ft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHE-HDF18G01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comprehensive CHE-HDF18G01

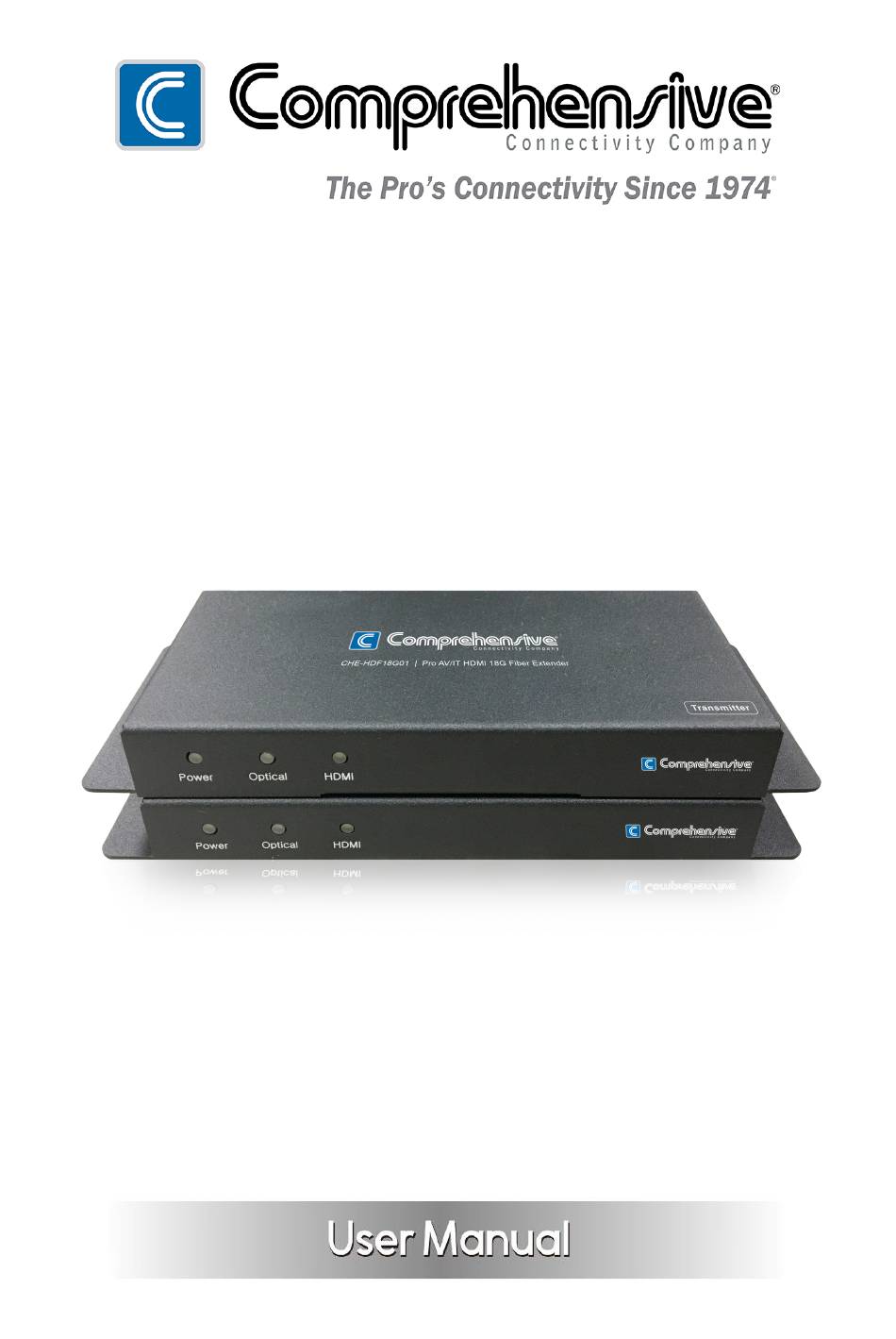

  • Page 1 CHE-HDF18G01 Pro AV/IT HDMI 18G Fiber Extender TX/RX Kit up to 3300ft...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction The HDMI over Optical Fiber Extender can extend HDMI signal up to 4K Ultra HD over 3300 feet/1000 meters (Single-mode cable) or 1000 feet/300 meters (Multi-mode cable) to an HDMI compatible display. It also supports bi- directional infrared control and RS-232 signals transmission. It can allow you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender.
  • Page 4: Specifications

     1 x Fiber Receiver Module  2 x Wideband IR Blaster cable  2 x Wideband IR Receiver cable  2 x 5V/1A Power Adaptor  2 x Phoenix Male Jack  1 x User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance...
  • Page 5 1x IR In [3.5mm Stereo Mini-jack] 1x RS-232 [3.81mm Phoenix connector] Outputs: 1x Optical Fiber Out [LC female] 1x IR Out [3.5mm Stereo Mini-jack] Inputs: 1x Optical Fiber In [LC female] 1x IR In [3.5mm Stereo Mini-jack] Receiver Outputs: 1x HDMI Type A [19-pin female] 1x IR Out [3.5mm Stereo Mini-jack] 1x RS-232 [3.81mm Phoenix connector] Mechanical...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Power LED: System power indicator. Optical LED: Optical link indicator, illuminates when transmitter and receiver establish optical link. HDMI LED: HDMI input signal indicator, illuminates when HDMI input has an active signal. DC 5V: Connect 5V/1A adaptor for power supply.
  • Page 7 Update: Firmware updating port. 5.2 Receiver Panel Power LED: System power indicator. Optical LED: Optical link indicator, illuminates when transmitter and receiver establish optical link. HDMI LED: HDMI output connecting indicator, illuminates when HDMI output has an active TV be connecting. DC 5V: Connect 5V/1A adaptor for power supply.
  • Page 8 RS-232: RS-232 commands will pass through this extender. Update: Firmware updating port. 5.3 IR Cable Pin Assignments 5.4 Optical module instruction ① SFP-BL35T1-02DC is TX optical module. ② SFP-BL531T-02DC is RX optical module. 7 / 8...
  • Page 9: Connection Diagram

    6. Connection Diagram 80 Little Falls Road, Fairfield, NJ 07004 sales@comprehensiveco.com | 800.526.0242 | www.ComprehensiveCo.com 8 / 8...
