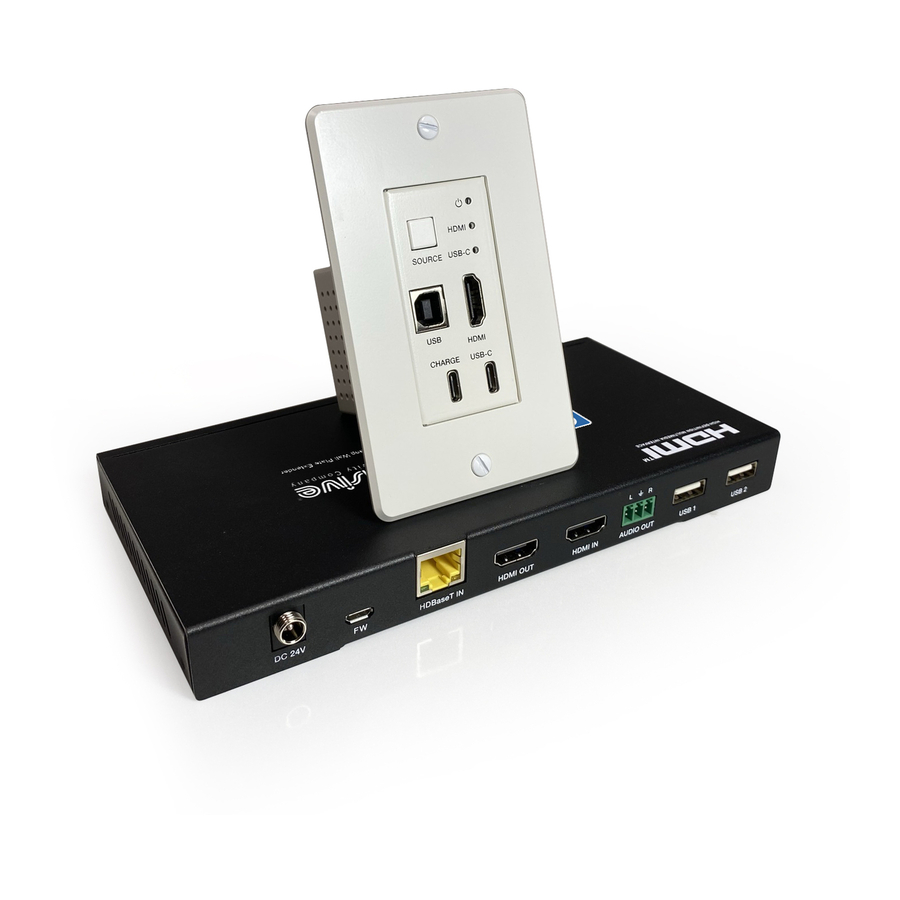

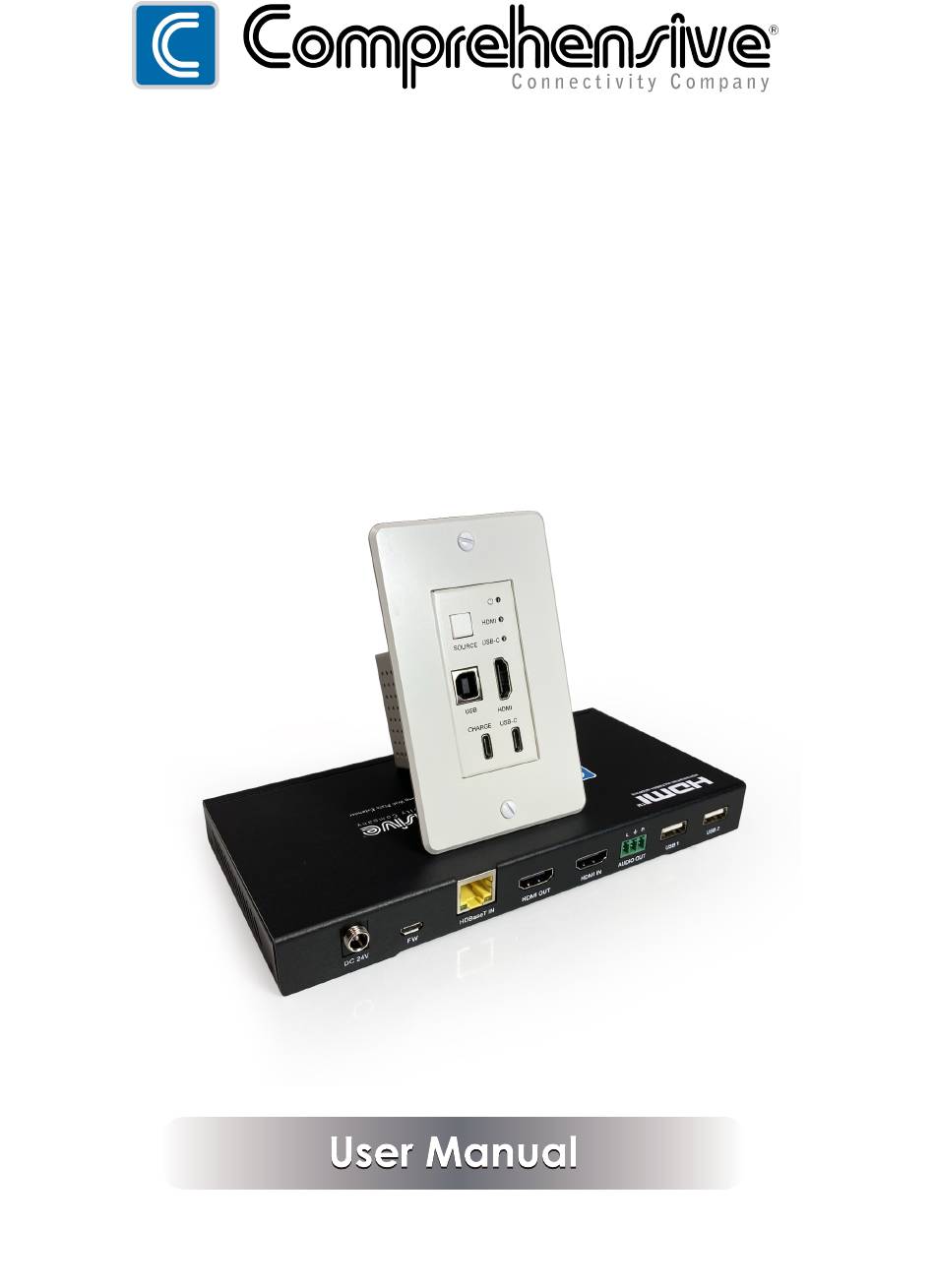

- Page 1 CHE-HDBTWP125MC Pro AV/IT HDBaseT™ 4K Single Gang HDMI + USB-C, USB 2.0 and Audio Wall Plate Extender Kit up to 230ft VER 1.1...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction The Comprehensive CHE-HDBTWP125MC is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one- gang enclosure for Decora-style wall plate openings. The USB-C input provides an ideal AV interface for connecting with new Apple® notebooks and Windows®...
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b, DisplayPort 1.2a HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps 4096×2160@24/25/30/50/60Hz,3840×2160@24/25/ 30/50/60Hz, 2048x1080p,1080p@23.98/24/25/29.97 Video Resolution /30/50/59.94/60Hz,1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit HDR10, HDR10+ Dolby Atmos, TrueHD, Digital+, Digital;...
- Page 5 Mechanical Housing Metal Enclosure Color White / Black Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: Dimensions 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] Weight Wall plate: 196g, Receiver: 511g POE (only from Receiver to Transmitter) Power Supply Power Consumption Wall plate: 9W (Max), Receiver: 11W (Max)
- Page 6 6. Operation Controls and Functions 6.1 Transmitter Panel HDMI USB-C SOURCE HDBaseT OUT HDMI CHARGE USB-C Name Function Description The power LED indicator will illuminate in green Power LED when the product is powered on, and red when the product is on standby. When the HDMI input port is active and the HDMI HDMI LED signal is detected, the green LED will be on.
- Page 7 6.2 Receiver Panel DC 24V HDBaseT IN HDMI OUT HDMI IN AUDIO OUT USB 1 USB 2 Name Function Description When the product is powered on, the red LED Power LED indicator will be on. DC 24V power supply port. DC 24V Firmware update port.
- Page 8 7. Application Example CAT6/6a/7 Cable Receiver HDMI USB-C SOURCE HDBaseT OUT DC 24V HDBaseT IN HDMI OUT HDMI IN AUDIO OUT USB 1 USB 2 HDMI CHARGE USB-C Power Adapter Transmitter Power Supply Speaker Notebook TV or Monitor Apple The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
