- Page 1 CHE-HDBT250 Pro AV/IT HDBaseT™ 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 492ft VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embedded audio for L/R audio output and PoC function. In addition, the CHE-HDBT250 is equipped with two-way IR pass-through which allows for source and display control. -
Page 4: Package Contents
3. Package Contents Item CHE-HDBT250 (Transmitter & Receiver kit) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ear 3-pin Phoenix connector 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4... - Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack]...
-
Page 6: Operation Controls And Functions

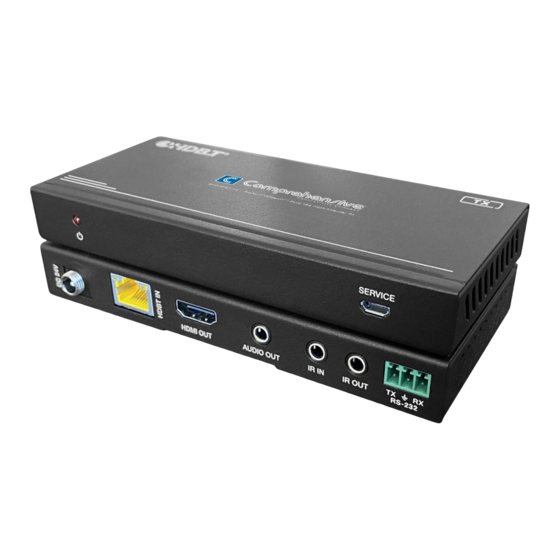

5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE HDMI OUT HDMI IN IR IN IR OUT Name Function Description Power LED Red LED indicates that the transmitter is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either DC 24V transmitter or receiver is powered on by 24V/1A power adapter, the... -
Page 7: Receiver Panel
3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. 5.2 Receiver Panel SERVICE HDMI OUT AUDIO OUT IR IN IR OUT Name Function Description 1 Power LED Red LED indicates that the receiver is powered on. -
Page 8: Ir Pin Definition
IR IN IR input port for receiving the signal of IR remote. IR output port for control of display device. This IR output signal 10 IR OUT is from the IR IN port of transmitter. 3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. - Page 9 The following is IR system diagram about IR cable use method. TV remote DVD remote IR Receiver cable CAT 5e/6 cable H D M I OUT H D M I I N I R I N I R OUT H D M I O U T A U D I O O U T I R I N I R OUT...
-
Page 10: Application Example
6. Application Example L AN U SB U SB RS-2 32 DC 12 V Controller DVD or Blu-ray Player Transmitter IR IN IR OUT HDMI OUT HDMI IN IR Blaster Power Supply IR Receiver IR Receiver CAT 5e/6 cable UHDTV IR Blaster Receiver AUDIO OUT...
