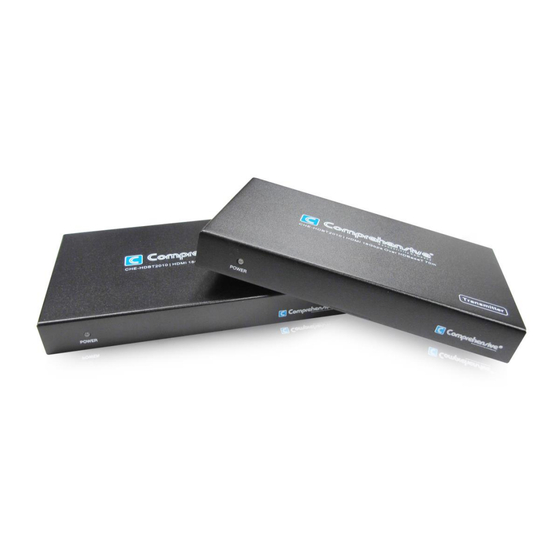

- Page 1 CHE-HDBT2010 Pro AV/IT 4K (18Gbps) HDBaseT™ Extender Kit, 230ft with POC, RS232, HDCP 2.2 1 / 11...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. - Page 3 Caution This extender uses UTP termination, which follows the standard of direct interconnection method as shown below Advanced The extender will start protection mode automatically when using UTP termination, which follows the standard of cross interconnection method as below. 3 / 11...
-
Page 4: Introduction
1. Introduction The 18Gbps HDMI Extender is a tool which can extend an HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to a standard HDBaseT signal which can be transmitted via LAN cable. It also supports Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side at 230ft outside, also you can control the Sink in the Source side at 230ft outside by using the HDMI... -
Page 5: Package Contents
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit; 40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit. 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444) 3. Package Contents 1 x HDMI 18Gbps Transmitter 1 x HDMI 18Gbps Receiver 2 x Wideband IR Tx ... - Page 6 Connections Transmitter :1x HDMI Type A [19-pin female] 1x IR INPUT [3.5mm Stereo Mini-jack] 1x RS232 [Phoenix jack] 1x Service [Mini-USB jack Inputs Receiver: 1x HDBaseT In [RJ45] 1x IR INPUT [3.5mm Stereo Mini-jack] 1x RS232 [Phoenix jack] 1x Service [Mini-USB jack] Transmitter : 1x HDBaseT Out [RJ45] 1x IR OUTPUT [3.5mm Stereo Mini-jack]...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Power LED: System power indicator. DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply. HDBaseT Out: Standard HDBaseT signal output port. Connect HD BaseT receiver with a UTP cable following the standard of direct interconnection method HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4 player... - Page 8 ※Flashing: The Transmitter and Receiver are in poor connections status. ※Dark: The Transmitter and Receiver are not connected. Data Signal Indicator Lamp ※Illuminate: The HDMI signal with HDCP. ※Flashing: The HDMI signal without HDCP. ※Dark: No HDMI signal. 5.2 Receiver Power LED: System power indicator.
- Page 9 IR Out:Channel 2 IR Transmitter. Connect with Wideband IR Tx. RS-232: Phoenix jack provide Serial port control signal from receiver or to receiver. Service: Manufacturer use only. Connection Signal Indicator Lamp ※Illuminate: The Transmitter and Receiver are in good connections status. ※Flashing: The Transmitter and Receiver are in poor connections status.
- Page 10 ※ Description 2 Bidirectional Infrared control Application Example ※ Description 3 Bidirectional RS232 control Application Example 10 / 11...
-
Page 11: Connection Diagram
6. Connection Diagram 80 Little Falls Road, Fairfield, NJ 07004 sales@comprehensiveco.com l 800.526.0242 l www.ComprehensiveCo.com 11 / 11...
