- Page 1 CHE-HD300 Pro AV/IT HDMI Extender over single Cat5e/6/7 up to 330ft Page 1...
- Page 2 Contents ■ Product Overview ..............3 ■ Product Features ..............3 ■ Specifications ................4 ■ Package Contents ..............4 ■ Panel Descriptions ..............5 ■ Installation and Operations ............ 6 ■ Troubleshooting and Maintenance ........7 ■ Warning and Precaution ............7 Page 2...

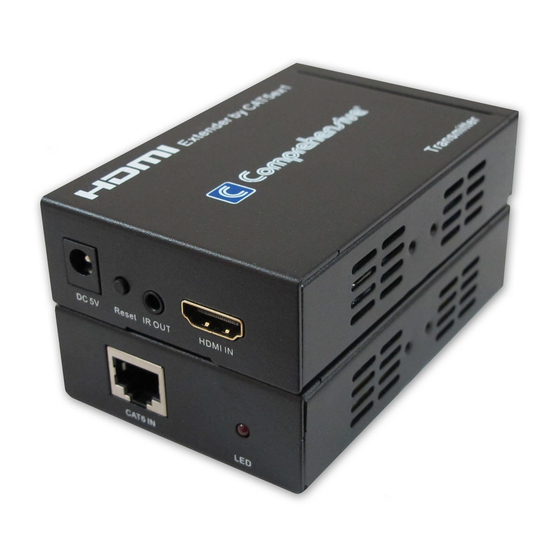

- Page 3 ◼ Product Overview: Comprehensive’s CHE-HD300 HDMI extender can transmit HDMI signals using a single networking cable and supports HDMI 1.3v. The transmission distance between the sending and receiving units can be up to 330ft. It supports infrared extension function and HDMI loop out function.
- Page 4 3.23” x 2.28 x 0.89” Net Weight（Main Unit) 0.9lbs ◼ Package Content: Packing including Item Name 1 set （include TX and RX） CHE-HD300 Extender 5V/1.2A Power supply 2 pcs IR Receiver 1 pcs IR transmitter 1 pcs Usual Manual 1 pcs...
- Page 5 ◼ Panel Description ① DC 5V—DC 5V power supply input Interface ② POWER—Power indicator ③ STATUS—Input signal indicator ④ HDMI IN—HDMI signal input Interface ⑤ Cat5e/a OUT—TX network output port, support CAT5E or CAT6 Cable ⑥ HDMI OUT—HDMI signal looping output Interface ⑦...
- Page 6 ◼ Installation and Operation: 1) Connecting Cables • CHE-HD300 HDMI extender TX HDMI INPUT connects to the signal source (like DVD/PSS) via HDMI cable. • CHE-HD300 HDMI extender TX HDMI OUTPUT connects to the display device with HDMI interface (like TV) via HDMI cable.
- Page 7 ◼ Troubleshooting and Maintenance: If the connected display device has a noisy point, maybe the cable quality is not up to standard, shielded HDMI cable and Ethernet cable is suggested. If color is distorted or no video signal output: a) check the corresponding input signal, if there is no input signal, please check the wire connection, b) Check the output interface is consistent with the right controlled one.
