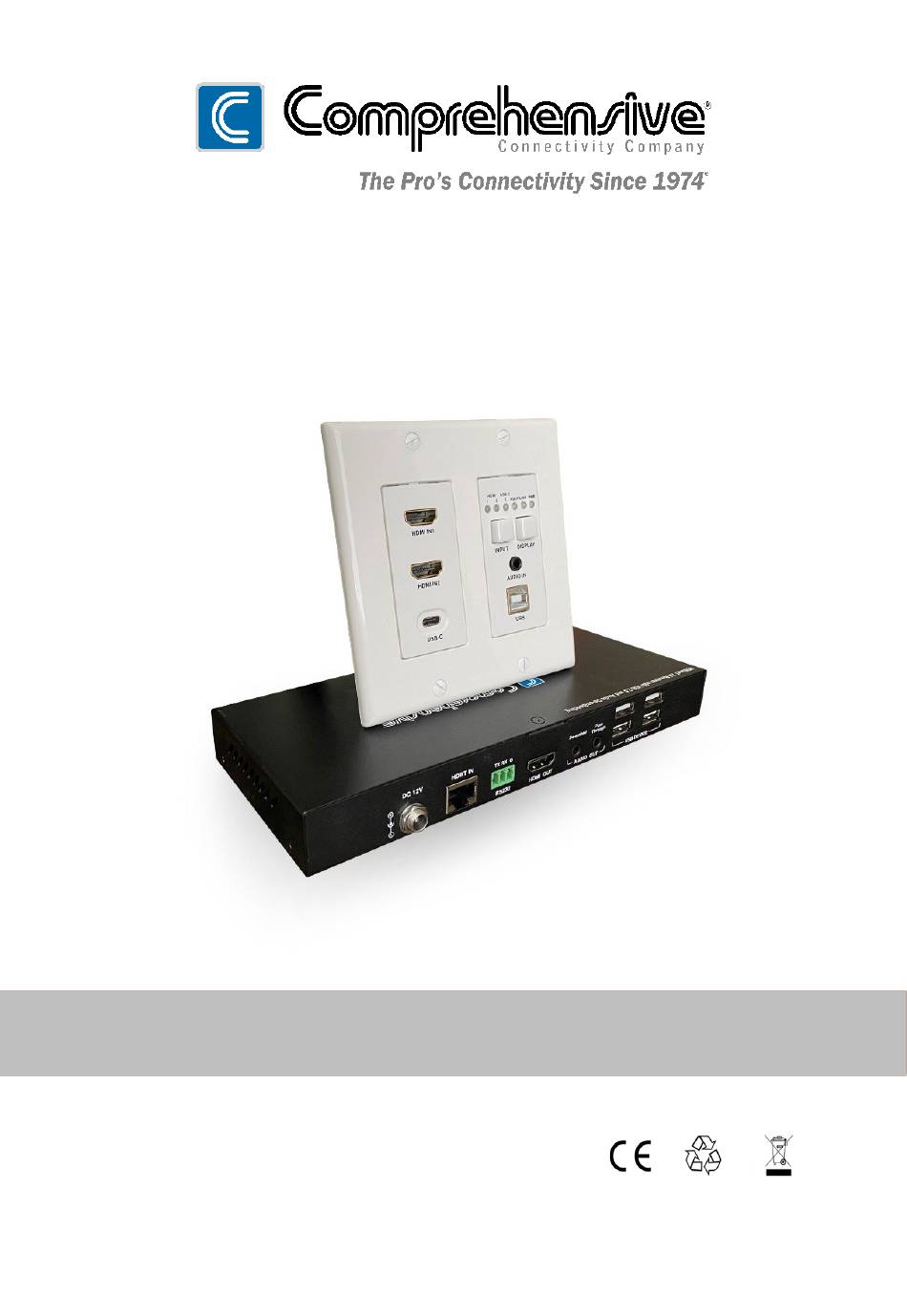

- Page 1 CHE-HDBTWP242K Pro AV/IT HDBaseT™ 4K Dual Gang with HDMI/USB-C and USB, Audio Wall Plate Extender Kit up to 230ft User Manual Version: V1.0.0...
- Page 2 Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with a dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 2.
-
Page 3: Table Of Contents
Table of Contents Introduction ...................... 2 Features ......................2 Package Contents .................... 3 Specifications ....................3 Transmitter ....................... 3 Receiver ......................5 Transmission Distance ..................6 Panel Description ..................... 6 Transmitter ....................... 6 Receiver ......................7 Installation and Wiring ..................9 Installation ...................... -
Page 4: Introduction
Introduction Comprehensive’s CHE-HDBTWP242K is a 3x1 wall-plate extender that features HDMI and USB-C AV inputs with USB 2.0 connectivity. The USB 2.0 connectivity is ideal for connecting devices such as webcams, Interactive panels, external drives, mice & keyboards. Supports video resolution up to 4K@60Hz 4:2:0. The transmitter is remotely powered by the receiver by PoH that can be extended up to 230ft over Cat5e/Cat6. -
Page 5: Package Contents
Package Contents For transmitter: 1 x Transmitter 1 x Wall Plate Plastic Panel (2‐Gang US, with Screws) 1 x USB B to A Cable 1 x Phoenix Male Connector (3.5mm, 4 Pins) 4 x Mounting Screws ... - Page 6 Technical 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz Note: 4096x2160/3840x2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only.
-
Page 7: Receiver
Receiver Technical Video Input 1 x HDBT IN (RJ-45) Input Video Signal HDBT 2.0 Video Output 1 x HDMI OUT Output Video Signal HDMI (4K@60Hz YUV 4:2:0), HDCP 2.2 VESA: 800x600 , 1024x768 , 1024x768 , 1280x768 1280x800 , 1360x768 , 1366x768 , 1440x900 1600x900... -
Page 8: Transmission Distance
Transmission Distance Note: Straight-through category cable wired to T568B standard is recommended. Cable Type Range Supported Video 100m/330ft 1080P@60Hz, 36bpp Cat 5e 90m/197ft 1080P@60Hz, 48bpp 4K@30Hz, 4:4:4 24bpp Cat 6/6a/7 100m/330ft 4K@60Hz, 4:2:0 24bpp Panel Description Transmitter Name Description 1&2 HDMI IN (1~2) Connect to HDMI sources. -
Page 9: Receiver
Name Description On: HDCP-protected content is being transmitted. Blinking: Non-HDCP protected content is being HDCP LED transmitted. Off: No content is being transmitted. On: HDBT link is normal. LINK LED Off/Blinking: No HDBT link or link error. ... - Page 10 Name Description • Blinking/Off: Link error or no link. RS232 DIP Switch for settings of RS232 function. Pass-through (default setting): For controlling the transmitter for input selection. RS232 MCU: For MCU firmware update. VS: For VS firmware update. ...
-
Page 11: Installation And Wiring
Installation and Wiring Installation Note: Before installation, ensure the device is disconnected from the power source. The height of installation should not exceed 2 meters from the ground. Steps to install the receiver in a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. - Page 12 Connect HDBT OUT of the transmitter to HDBT IN of the receiver via a Cat 5e/6/7 cable. 2. Connect an HDMI display and audio receivers (e.g. earphone, speaker) respectively to the receiver. 3. Connect the provided power adapter to the receiver. With PoH support, it is able to send power to the transmitter;...
- Page 13 Transmitter HDMI Audio Laptop USB-C MacBook (Front) (Rear) HDBT Receiver HDMI OUT AUDIO Earphone Speaker Keyboard Mouse USB Camera...
-
Page 14: Automatic Switching
Automatic Switching The transmitter offers automatic switching function. The automatic switching function follows the Last-In-First-Out rule. For example, if a new active source is connected, the transmitter will automatically switch to this source. If the source selected is removed, the transmitter will automatically switch to the source with top priority (default priority: USB-C >... -
Page 15: Device Control
Device Control Advanced users can control the transmitter via API commands through UPDATE port on transmitter or RS232 port on receiver: connect a control PC or control system to the UPDATE port of the transmitter (see Figure 1) or the RS232 port of the receiver (see Figure 2). - Page 16 Transmitter RS232 Port Connected RS232 Device Pins HDBT Receiver RS232 Cable Control System Figure 2- Control the Transmitter through RS232 port of the Receiver. 80 Little Falls Rd, Fairfield, NJ 07004 Phone: 1-800-526-0242 www.ComprehensiveCo.com sales@comprehensiveco.com...
