Hdmi 4k extender with one-way ir up to 230ft (9 pages)
Summary of Contents for Comprehensive CHE-HDBTWP230RX

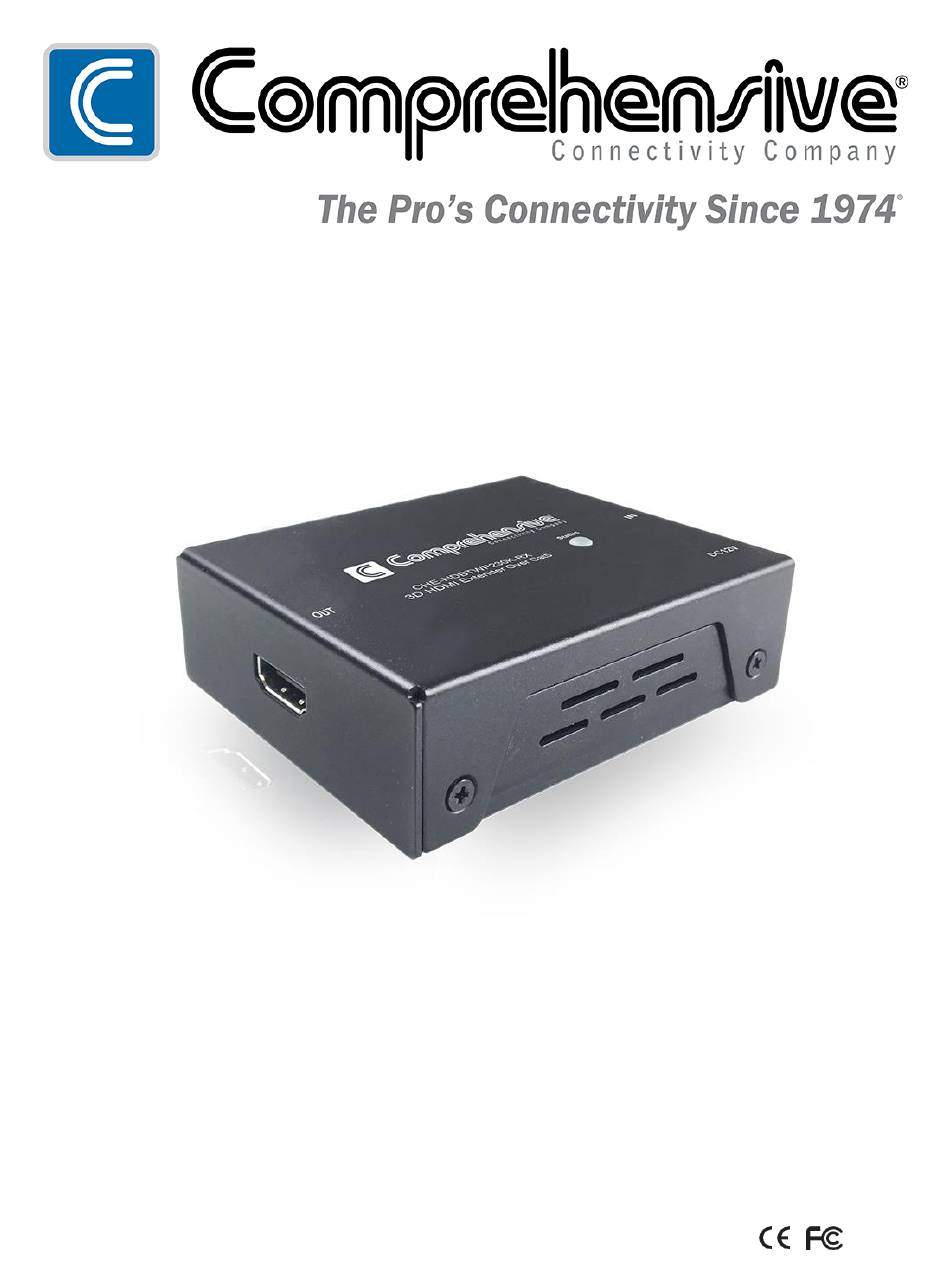

Page 1

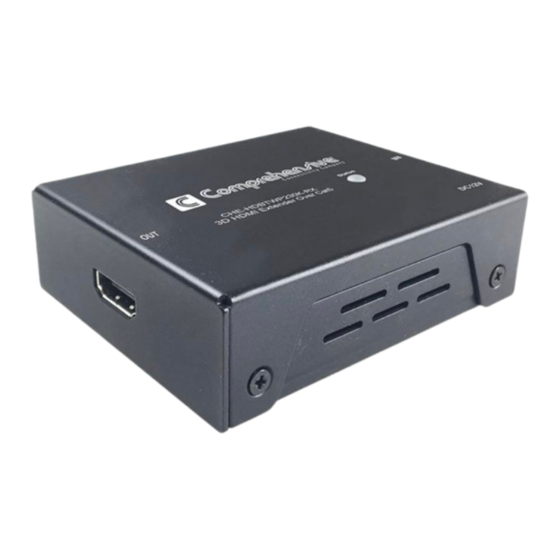

CHE-HDBTWP230RX HDMI Extender Receiver over CAT5 User's Manual Please note: It is strongly recommended to use the proper type of cables and display devices that are capable of handling the resolution and refresh rate selected. Low-quality cables can elevate noise levels and degrade output signals.
Package Contents HDMI Extender Receiver Unit ● Power Adapter (Set / Pc) ● User’s Manual ● Grounding Wire ● Features Send HDMI signal to a display over CAT5e/6 cable of up to 70 meters ● Transmit full uncompressed HD video and audio over cable ●...
Product Description Grounding RJ-45 Jack Use a CATx cable for connection between two units HDMI connector [R2] Connect to an HDMI display LED Indicator [R3] Red: Power on / Blue: Link OK Power Supply Apply power to either one end of two units LED Indicators LED Status Power ON: Green/Link OK: Blue...
Connection Pattern Receiver Unit Grounding Transmitter Unit Grounding To prevent any damage to the product or any connecting devices, and to improve audio/video signal quality, it is important to make sure that the extender systems are properly grounded. Specifications Input → Output RJ-45 →...
