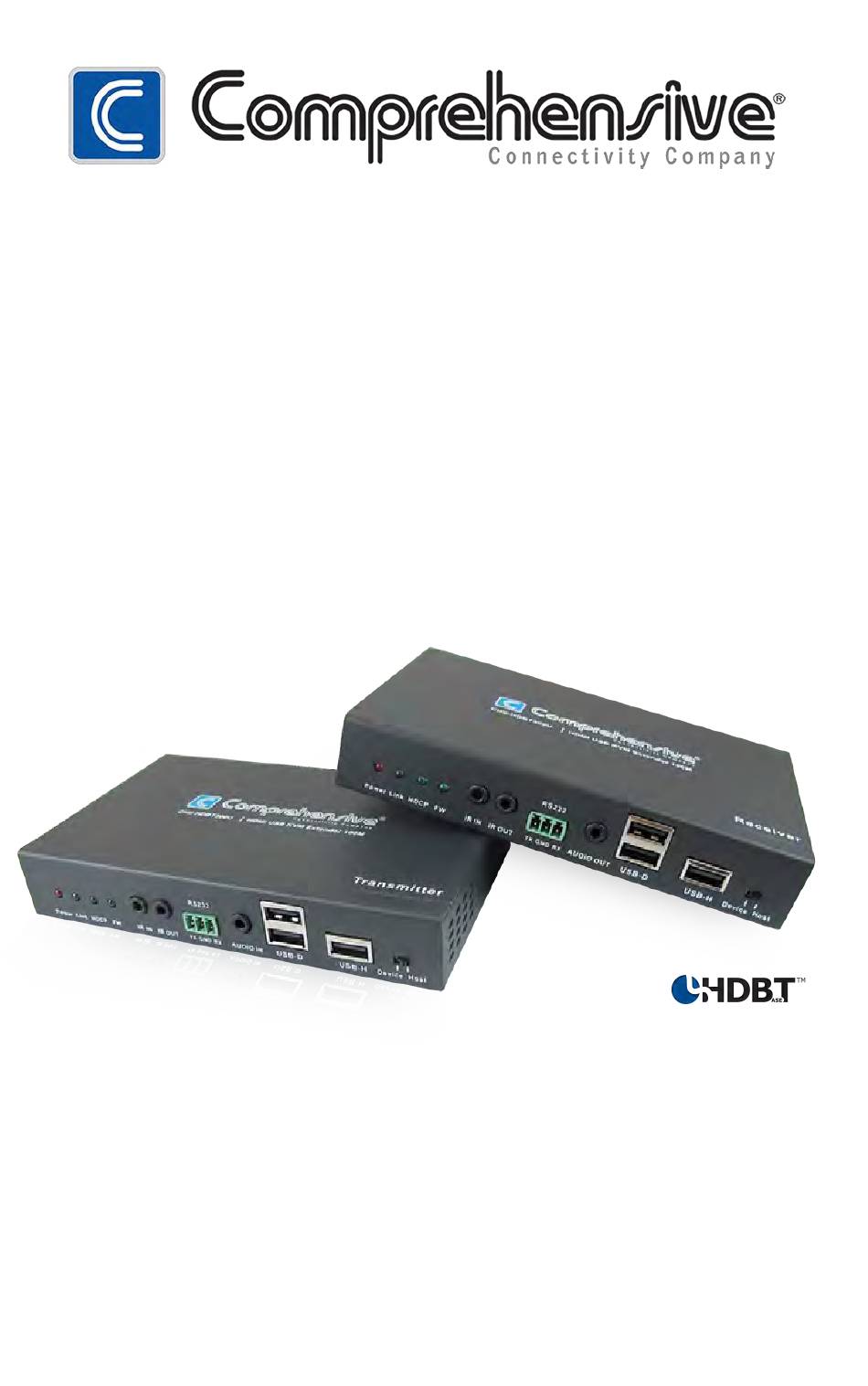

CHE-HDBT300U
HDBaseT™ 2.0 Extender up to 330ft
with USB - Transmitter & Receiver
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHE-HDBT300U and is the answer not in the manual?

Questions and answers

Summary of Contents for Comprehensive CHE-HDBT300U

  • Page 1 CHE-HDBT300U HDBaseT™ 2.0 Extender up to 330ft with USB - Transmitter & Receiver User manual...
  • Page 2 Thank you for purchasing this product. For optimum performance and safety, please read the instruction carefully before connecting, operating or adjusting this product. Please keep the manual for future reference. Caution: The extender using UTP cable termination follows the standard of IEEE-568B.
  • Page 3 2. Features 1. Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with YCbCr 4:2:0 ). 2. HDCP2.2 and DVI compatible. 3. Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 100m/328ft. 4. Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
  • Page 4: Specifications

    4. Specifications 1. Video Bandwidth 340MHz/10.2Gbps 2. Transmitter Input Ports 1x HDMI, 1xLAN, 1xUSB-H, 1xIR in, 1x Audio in, 1xRS232, 1xOptical (Spdif in), Output Ports 1xIR out, 1xOptical (Spdif out), 1xHDBaseT OUT, 2xUSB-D 3. Receiver Input Ports 1xIR in, 1xOptical (Spdif in), 1xHDBaseT IN, 1xUSB-H Output Ports 1x HDMI, 1xLAN, 2xUSB,...
  • Page 5 5. Operation controls and Functions 5.1 Transmitter Front Panel 1. Indicator LED: Power LED: illuminates when power has been supplied to the unit. Link LED: The connection status indicating lamp.  Illuminate: The Transmitter and Receiver is good connections.  Flashing: The Transmitter and Receiver is poor connections. ...
  • Page 6 supply. 5.2 Transmitter Rear Panel 9. UPDATE: Reserved for manufacturer use only. 10. HDBaseT OUT: Standard HDBaseT signal output port. Connect HDBaseT receiver with a Cat5e/6/7 cable. 11. HDMI IN: This slot is where you connect the HDMI source. 12. SPDIF IN(Optical in): Connect to audio source equipment such as DVD or Blu-ray player for audio signal sending to Receiver’s SPDIF OUT(Optical out).
  • Page 7 5.3 Receiver Front Panel 1. Indicator LED: Power LED: illuminates when power has been supplied to the unit. Link LED: The connection status indicating lamp.  Illuminate: The Transmitter and Receiver is good connections.  Flashing: The Transmitter and Receiver is poor connections. ...
  • Page 8: Ir Cable Pin Assignments

    5.4 Receiver Rear Panel 9. UPDATE: Reserved for manufacturer use only. 10. HDBaseT IN: Standard HDBaseT signal output port. Connect HDBaseT Transmitter with a Cat5e/6/7 cable. 11. HDMI OUT: This slot is where you connect the a HDMI equipped TV/monitor. 12.
  • Page 9 6. Connection Diagram 6.1 POE(Power Over Ethernet) Application Example 6.2 Bidirectional Infrared control Application Example 6.3 Bidirectional RS232 control Application Example Ver1.1 Page 8...
  • Page 10 6.4 Bidirectional Ethernet signal Application Example 6.5 USB control Application Example 6.6 Digital Audio bidirectional transmission Application Example Ver1.1 Page 9...
  • Page 11: Application Example

    7. Application Example 80 Little Falls Road, Fairfield, NJ 07004 Phone: 800.526.0242 l Fax: 201.814.0510 www.ComprehensiveCo.com Ver1.1 Page 10...
