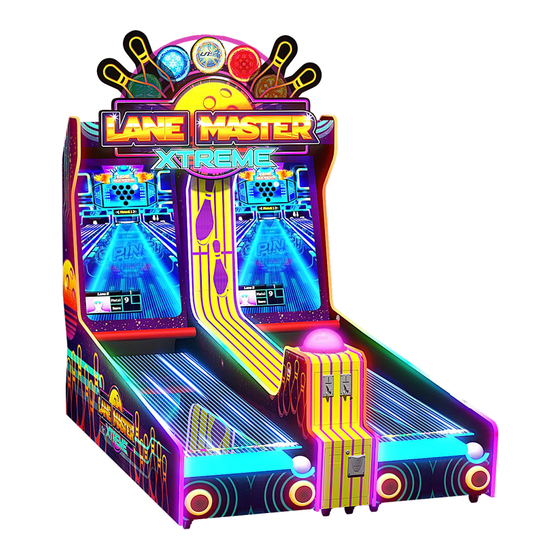

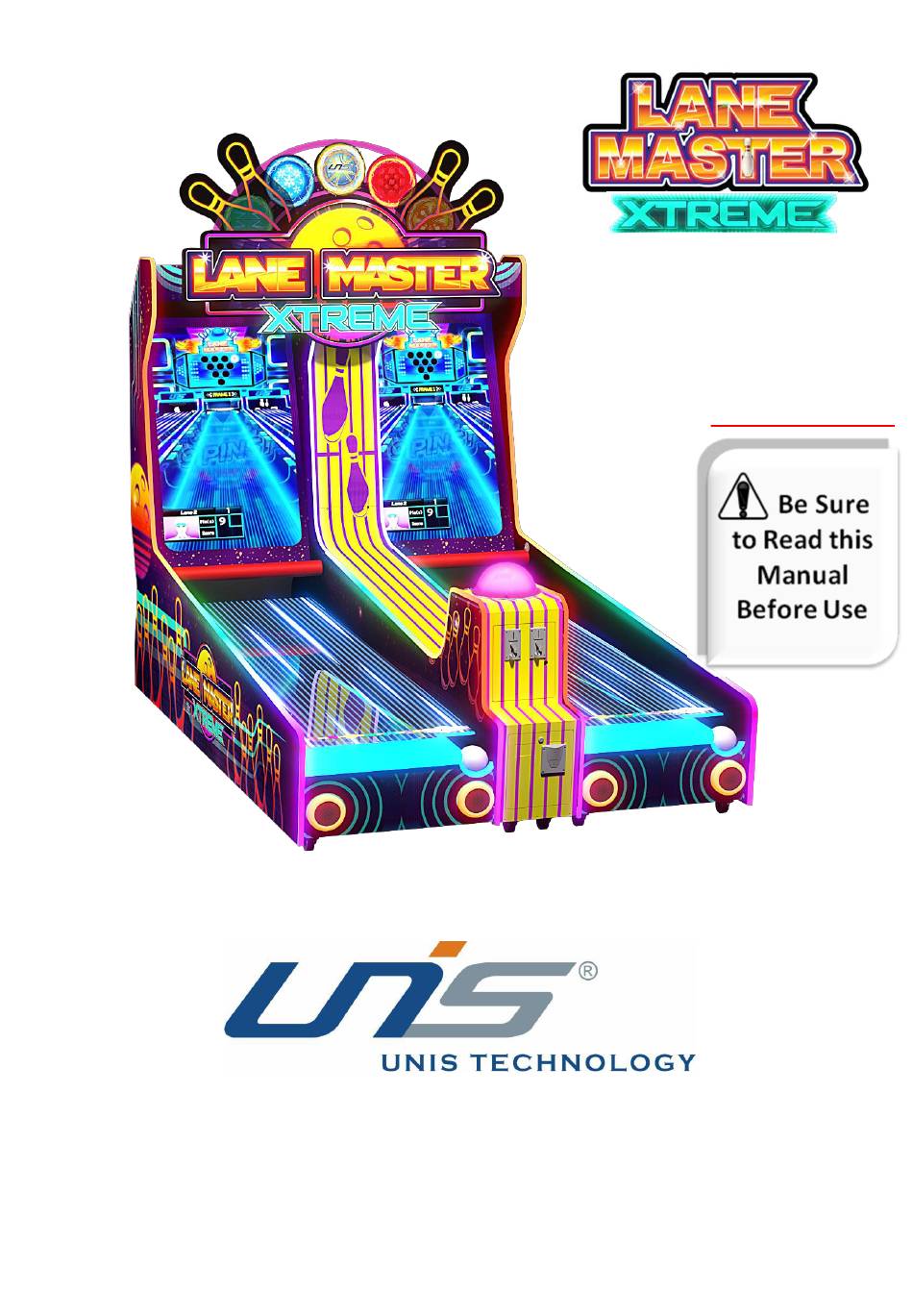

  • Page 1 IMPORTANT NOTE: Some portions of assembly may require additional assistance. Operation Manual...
  • Page 2 Lane Master Xtreme GMP(Tickets) Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Lane Master Xtreme GMP(Tickets) Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................18 6.

  • Page 4: Important Safety Instructions

    Lane Master Xtreme GMP(Tickets) Manual Thank you for purchasing Lane Master Xtreme GMP(Tickets). We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Lane Master Xtreme GMP(Tickets) Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Lane Master Xtreme GMP(Tickets) Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 550W Max. Power consumption: 700W Dimension: H105.41×W65.19×D112.96 in H2677.6×W1656 ×D2869.4 mm Weight：Approximately 1212.54 lb/550 KG Model No: C-793 Part No.: L130 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Lane Master Xtreme GMP(Tickets) Manual This machine will be divided into two parts during transportation. Back Cabinet: H82.27×W65.19×D26.39 in H2089.8×W1656×D669.3 mm 669.3 mm 26.39 in 1656 mm 65.19 in Ally part: H52.32×W65.19×D88.14 in H1329×W1656×D2239 mm 2239 mm 1656 mm 65.19 in 88.14 in...

  • Page 8: Contents Of The Accessory Kit

    Lane Master Xtreme GMP(Tickets) Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code No. Name Picture 1 L130-3401-00 2.53.00171002 171A key 2 L130-3402-00 2.53.00172002 171B key Power cord 3 L130-3404-00 2.33.01.010020...

  • Page 9: Part Name

    Lane Master Xtreme GMP(Tickets) Manual 3. PART NAME Key Components 12/21/2023...

  • Page 10: Set Up & Installation

    Lane Master Xtreme GMP(Tickets) Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 11 Lane Master Xtreme GMP(Tickets) Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 12 Lane Master Xtreme GMP(Tickets) Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver For Marquee Installation& Connect Wrench Lane Assembly Connect Lane Assembly Allen hexagon wrenches & Display Assembly Installation Instructions Step 1 Place the 2 Lane Assemblies together.
  • Page 13 Lane Master Xtreme GMP(Tickets) Manual Step 3 Open the back plate and attach the screws in the red arrow area. 4 pcs Step 4 Install Bowling light cover. 12/21/2023...
  • Page 14 Lane Master Xtreme GMP(Tickets) Manual Step 5 Align Monitor cabinet with the Lane assy. Use the Allen hexagon wrench (Provided) to lock the back box with the lanes as indicated. Step 6 Lower leg levelers into place for initial leveling of the back box and the lanes if the floor is uneven.
  • Page 15 Lane Master Xtreme GMP(Tickets) Manual Step 8 Attach support bracket. Note: It is recommended to have the minimum of two staff members available for this installation. Step 9 Install the bolts as indicated in the green area. Kit list: Name...
  • Page 16 Lane Master Xtreme GMP(Tickets) Manual Step 10 Add ball to each lane and apply power. Step 11 Once game is powered on and operational place it in position. Utilizing the leg levelers to assure the back box and lanes are level with each other.
  • Page 17 Lane Master Xtreme GMP(Tickets) Manual Step 3 Locate Power box. Replace fuse to T10A. Step 4 Locate lane side. Utilize key to open side door, Step 5 Loosen swing screw. Unplug the connectors and take Send ball assembly out. Step 6 Loosen hexagon screw as shown below.
  • Page 18 Lane Master Xtreme GMP(Tickets) Manual Step 7 Loosen 4 screws to remove motor set. Step 8 Loosen 4 screws to remove motor . Step 9 Replace it with new motor( suitable voltage) and install in reversed order. 12/21/2023...

  • Page 19: How To Play

    Lane Master Xtreme GMP(Tickets) Manual 5. HOW TO PLAY 5.1 Insert coins/tap/swipe card to play. Roll the ball down to the lane and hit pins to get points. 5.2 Hit Power Up pins to get Power ups! 12/21/2023...
  • Page 20 Lane Master Xtreme GMP(Tickets) Manual 5.3 Power ups are automatically activated. Try them all! 5.4 Hits as many pins as possible! Strikes earn bonus points!. 5.5 Game Scene: 12/21/2023...
  • Page 21 Lane Master Xtreme GMP(Tickets) Manual 12/21/2023...

  • Page 22: Game Option

    Lane Master Xtreme GMP(Tickets) Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu...
  • Page 23 Lane Master Xtreme GMP(Tickets) Manual 6.2.3 Customized Setting Please set the PC Number to link machines. Options Adjustment Value Default Description Regulation Mode OFF_ON Refill ball Single Player Pro Mode_2 Lanes Play mode Lanes Linking Linking PC Number Multiplayer Join Time...
  • Page 24 Lane Master Xtreme GMP(Tickets) Manual 6.2.4 Input Test Options Adjustment Value 1P Coin OFF_ON 1P Ball Detect OFF_ON 1P Ball Signal OFF_ON 1P Send Ball Error OFF_ON 2P Coin OFF_ON 2P Ball Detect OFF_ON 2P Ball Signal OFF_ON 2P Send Ball Error...
  • Page 25 Lane Master Xtreme GMP(Tickets) Manual 6.2.7 Sensor Test Note:Test Sensor Function Green: ON Red: OFF 1P Ball 2P Ball 1P Ball Location 0-100 1P Ball Speed 0-100 2P Ball Location 0-100 2P Ball Speed 0-100 Press Any Button On The Counter To Back 6.2.8 Game Reset...
  • Page 26 Lane Master Xtreme GMP(Tickets) Manual 6.2.12 Bookkeeping Player Coins Tickets Payout These Settings Are Non-Resettable Back 6.2.13 Daily Record Date Weekday Runtime Coins Tickets Payout Clear Back 12/21/2023...

  • Page 27: Troubleshootings

    Lane Master Xtreme GMP(Tickets) Manual 7. TROUBLESHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 28 Lane Master Xtreme GMP(Tickets) Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 29 Lane Master Xtreme GMP(Tickets) Manual Display Possible Cause Recommended action Loose connection to Loose connection to the sensor’s cables. sensor’s cables. Check and reconnect Check and reconnect the No ball found inside Roll a ball to the lane. the lane.
  • Page 30 Lane Master Xtreme GMP(Tickets) Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 31: Maintenance & Inspection

    Lane Master Xtreme GMP(Tickets) Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 32 Lane Master Xtreme GMP(Tickets) Manual 8.3 Linking setting Kits for linking Name Picture Note Network cable(5M) For two sets linking Switch For three sets linking For two sets linking: Step 1 For two sets linking, please connect the network ports of two machines with Network cable(5M).
  • Page 33 Lane Master Xtreme GMP(Tickets) Manual For three sets linking: Step 1 For three sets linking, please Step 2 For three machines linking, please For three sets linking: connect the Network cable (5M) to the connect all the network cables (5M) to the network port on the power outlet.

  • Page 34: Overall Construction

    Lane Master Xtreme GMP(Tickets) Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name Version Qty L130-0001-00 202.1.2304.170 Monitor lock pin plate V1.1 L130-0002-00 202.1.2304.171 Lane lock pin plate V1.1 L130-0003-00 202.1.2304.172 Inner side lock pin V1.1 L130-0004-00 2.53.00000148 Buckle V1.1...
  • Page 35 Lane Master Xtreme GMP(Tickets) Manual 9.2 Monitor Wooden Frame 12/21/2023...
  • Page 36 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version L130-0201-00 203.1.2304.001 Inner L side board V1.1 L130-0202-00 203.1.2304.002 Front bottom blanking board V1.1 L130-0203-00 203.1.2304.003 Outer L side board V1.1 L130-0204-00 203.1.2304.004 Power supply board V1.1 L130-0205-00 203.1.2304.006 Monitor base board V1.1...
  • Page 37 Lane Master Xtreme GMP(Tickets) Manual 9.3 Monitor Assembly 12/21/2023...
  • Page 38 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-0101-00 202.1.2304.177 Monitor mounting plate V1.1 L130-0102-00 202.1.2304.178 Monitor fixing plate V1.1 L130-0103-00 202.1.2304.179 Monitor cover plate(horizontal) V1.1 L130-0104-00 202.1.2304.180 Monitor side plate V1.1 L130-0105-00 206.1.2304.118 Monitor cover plate V1.1...
  • Page 39 Lane Master Xtreme GMP(Tickets) Manual Monitor assembly back side: Part No. Code No. Name Version Qty L130-0126-00 206.1.1901.025 Protect cover V1.1 L130-0133-00 202.1.1605.043 Power supply plate V1.1 L130-0136-00 2.60.00042001B Wiring box V1.1 L130-0137-00 2.60.00042002B Wiring box cover V1.1 L130-0138-00 202.4.2209.078 GND plate V1.1...
  • Page 40 Lane Master Xtreme GMP(Tickets) Manual 9.5 L Lane Assembly Part No. Code No. Name Version Qty L130-0501-00 203.1.2304.103 L lane middle board V1.1 L130-0503-00 203.1.2304.031 L lane L side board V1.1 L130-0508-00 203.1.2304.038 Door fixing board V1.1 L130-0510-00 203.1.2304.044 Front light support board V1.1...
  • Page 41 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version L130-0502-00 203.1.2304.030 lane back blanking board V1.1 L130-0504-00 203.1.2304.032 lane blocking board V1.1 L130-0505-00 203.1.2304.033 L lane front base board V1.1 L130-0506-00 203.1.2304.034 Panel connect board V1.1 L130-0507-00 203.1.2304.036 L bottom lane front board V1.1...
  • Page 42 Lane Master Xtreme GMP(Tickets) Manual 9.6 R Lane Assembly Part No. Code No. Name Version Qty L130-0508-00 203.1.2304.038 Door fixing board V1.1 L130-0510-00 203.1.2304.044 Front light support board V1.1 L130-0532-00 203.1.2304.037 Drawing fixing board V1.1 L130-0605-00 203.1.2304.075 R lane R side board V1.1...
  • Page 43 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version L130-0502-00 203.1.2304.030 lane back blanking board V1.1 L130-0504-00 203.1.2304.032 lane blocking board V1.1 L130-0506-00 203.1.2304.034 Panel connect board V1.1 L130-0601-00 203.1.2304.077 R bottom lane front side V1.1 L130-0607-00 206.1.2304.188 lane long buffer foam V1.1...
  • Page 44 Lane Master Xtreme GMP(Tickets) Manual 9.7 L&R Side Bottom Box Part No. Code No. Name Version Qty L130-0701-00 203.1.2304.084 Cleaning hook V1.1 1×2 L130-0702-00 202.1.1605D.003 Bolt V1.1 2×2 L130-0703-00 202.1.1605D.004 lock pin V1.1 1×2 L130-0557-00 2.53.00171001 171A lock V1.1 1×2 9.8 L Side Bottom Box Wooden Case...
  • Page 45 Lane Master Xtreme GMP(Tickets) Manual 9.9 R Side Bottom Box Wooden Case Part No. Code No. Name Version Qty L130-0801-00 203.1.2304.079 Drawing door board V1.1 L130-0802-00 203.1.2304.080 Drawing base board V1.1 L130-1001-00 203.1.2304.085 R drawing R side board V1.1 L130-1002-00 203.1.2304.086...
  • Page 46 Lane Master Xtreme GMP(Tickets) Manual 9.11 Ball-Pass Assembly 12/21/2023...
  • Page 47 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-1101-00 202.1.2304.193 Mounting base plate V1.1 1×2 L130-1102-00 202.1.2304.194 Sliding connect plate V1.1 1×2 L130-1103-00 202.1.2304.195 Ball mounting plate V1.1 1×2 L130-1104-00 206.1.2304.137 Buffer plate V1.1 1×2 L130-1105-00 202.1.2304.196 Straight axle V1.1...
  • Page 48 Lane Master Xtreme GMP(Tickets) Manual 9.13 Lane Assembly Part No. Code No. Name Version L130-0401-00 206.1.2304.139 Speaker light plastic V1.1 L130-0402-00 206.1.2304.140 Lane Glass V1.1 L130-0404-00 202.1.2304.202 Speaker cover V1.1 L130-0405-00 202.1.2304.203 Speaker position plate V1.1 L130-1501-00 206.1.2304.141 Ball light cover PE V1.1...
  • Page 49 Lane Master Xtreme GMP(Tickets) Manual 9.14 Lane Middle L Light Plastic Part No. Code No. Name Version Qty L130-1701-00 206.1.2304.178 L side light plastic 1 V1.1 L130-1702-00 206.1.2304.179 L side light plastic 2 V1.1 L130-1703-00 206.1.2304.180 L side light plastic 3 V1.1...
  • Page 50 Lane Master Xtreme GMP(Tickets) Manual 9.16 Lane Middle R Light Plastic Part No. Code No. Name Version Qty L130-1801-00 206.1.2304.183 R side light plastic 1 V1.1 L130-1802-00 206.1.2304.184 R side light plastic 2 V1.1 L130-1803-00 206.1.2304.185 R side light plastic 3 V1.1...
  • Page 51 Lane Master Xtreme GMP(Tickets) Manual 9.18 Front Marquee Assembly Part No. Code No. Name Version Qty L130-2201-00 206.1.2304.159 Marquee L upper light plastic V1.1 L130-2202-00 206.1.2304.160 Marquee L bottom light plastic V1.1 L130-2203-00 206.1.2304.161 Marquee R upper light plastic V1.1 L130-2204-00 206.1.2304.162...
  • Page 52 Lane Master Xtreme GMP(Tickets) Manual 9.19 Marquee Assembly Part No. Code No. Name Version Qty L130-2301-00 202.1.2304.223 Small marquee base plate V1.1 L130-2302-00 206.1.2304.167 Small marquee light plastic V1.1 L130-2101-00 202.1.2304.224 Round light back plate V1.1 L130-2102-00 203.1.2304.099 Round base board V1.1...
  • Page 53 Lane Master Xtreme GMP(Tickets) Manual 9.20 L Ball Pin Marquee Part No. Code No. Name Version Qty L130-2401-00 203.1.2304.096 L ball pin base board V1.1 L130-2402-00 203.1.2304.097 Ball pin pad board V1.1 9.21 R Ball Pin Marque Part No. Code No.
  • Page 54 Lane Master Xtreme GMP(Tickets) Manual 9.23 Decals 12/21/2023...
  • Page 55 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-2212-00 205.1.2304.013 LOGO marquee plastic V1.1 L130-3309-00 205.1.2304.002 Front upper decal L V1.1 L130-2211-00 205.1.2304.012 Marquee plastic V1.1 L130-2108-00 205.1.2304.016 L ball pin plastic V1.1 L130-2109-00 205.1.2304.017 R ball pin plastic V1.1...
  • Page 56 Lane Master Xtreme GMP(Tickets) Manual 12/21/2023...
  • Page 57 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-3313-00 205.1.2304.008 L lane inner decal V1.1 L130-3317-00 205.1.2304.020 R lane inner decal V1.1 L130-3338-00 205.2.2387.101 Lane back black PVC V1.1 L130-3319-00 205.1.2304.026 Lane side decal V1.1 L130-3334-00 205.1.2304.404...
  • Page 58 Lane Master Xtreme GMP(Tickets) Manual 12/21/2023...
  • Page 59 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-3337-00 2.56.00.000116 Recovery stick decal V1.1 L130-3301-00 2.56.00.000036 High voltage label(s) V1.1 L130-3302-00 2.56.00.000037 High voltage label(l) V1.1 L130-3322-00 205.1.2304.033 Counter decal V1.1 L130-3329-00 2.56.00.000095A Maintenance label(l) V1.1 L130-3327-00 2.56.00.000067A...
  • Page 60 Lane Master Xtreme GMP(Tickets) Manual 9.25 Electrical Components 12/21/2023...
  • Page 61 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version L130-2813-00 2.12.01049005 49'' monitor V1.1 L130-2804-00 2.33.07.010012 HDMI-DVI cable V1.1 L130-2813-00 2.12.01049005 49'' monitor V1.1 L130-2803-00 2.33.07.000015A DVI cable V1.1 3 L130-2830-00 2.20.02.020007 Flexible light strip V1.1 64.96 in (1650mm) 4 L130-2830-00 2.20.02.020007 Flexible light strip...
  • Page 62 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-2824-00 297.1.1901002 Drive board V1.1 L130-2823-00 2.28.03.010011 Amplifier V1.1 L130-2823-00 2.28.03.010011 Amplifier V1.1 L130-2811-00 2.17.14.000243A Fuse board V1.1 L130-2808-00 2.16.02.000171 Power supply V1.1 L130-2828-00 2.17.02.000022 Audio adjust board V1.1...
  • Page 63 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-2816-00 2.32.01000001A Filter V1.1 L130-2818-00 2.19.01.000030 Fuse V1.1 L130-2819-00 2.26.01.000005 Rocket SW V1.1 L130-2821-00 2.33.02.000001 Network port V1.1 Part No. Code No. Name Version Qty L130-2814-00 2.11.02000050D V1.1 L130-2829-00 2.11.07.020036...
  • Page 64 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-2814-00 2.11.02000050D V1.1 L130-3217-00 2.11.07.090036 Memory V1.1 L130-3218-00 2.11.07.030106 Video card V1.1 L130-3219-00 2.11.07.220032 PC mainboard V1.1 L130-3220-00 2.66.01.090508 Hard disk V1.1 L130-3221-00 2.16.02.000106 PC power supply V1.1 L130-3222-00 2.11.07.190033...
  • Page 65 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-3202-00 2.30.00000006 Counter V1.1 L130-3211-00 2.24.03.000001 Knob cover V1.1 L130-3212-00 297.9.1400001 POT board V1.1 L130-3203-00 2.24.02.030002 Button(green) V1.1 L130-3204-00 2.24.02.050001 Button(black) V1.1 L130-3205-00 2.24.02.010002 Button(red) V1.1 Send ball assy.
  • Page 66 Lane Master Xtreme GMP(Tickets) Manual Part No. Code No. Name Version Qty L130-3213-00 297.9.0700002 Ticket convert board V1.1 L130-3214-00 297.6.2008002 M6 mainboard V1.1 L130-3215-00 297.9.2011004 M6B board V1.1 Part No. Code No. Name Version Qty L130-2827-00 297.9.2012007 Sensor board V1.1...
  • Page 67 Lane Master Xtreme GMP(Tickets) Manual Monitor: Part No. Code No. Name Version Qty L130-3224-00 2.12.04.030051 Logic board L130-3227-00 2.12.04.030054 Power board L130-3228-00 2.12.04.030055 Drive board L130-3226-00 2.12.04.030053 Key board L130-3225-00 2.12.04.030052 Converted board www.unistechnology.com 12/21/2023...
