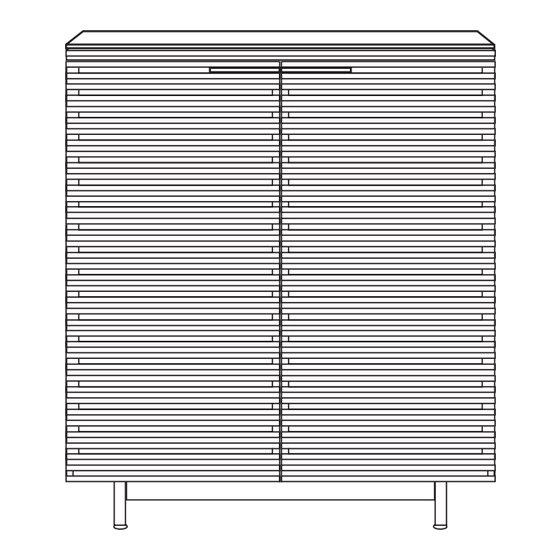

- Page 1 CORRIDOR® BAR 5620 BAR CABINET INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 2 Congratulations on the purchase of your Corridor Bar 5620 from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your cabinet.
- Page 3 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface, such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
- Page 4 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS Metal Leg QTY: 2 Cabinet (A) QTY: 1 (C1 = right & C2 = left) Crossbar (C3) QTY: 1 Glass Top (C4) QTY: 1 4 | BDIUSA.COM CORRIDOR 5620...
- Page 5 STEP 1. BUILD THE BASE ASSEMBLY Slide tab of (C1 & C2) Metal Legs into PART/DESCRIPTION (C3) Crossbar and attach with 4 (H1) Screws and tighten with (T2) Hex Wrench. T2-HEX WRENCH H1-SCREW NEED ASSISTANCE? customerservice@bdiusa.com | 5...
-
Page 6: Step 2. Attach The Base
ASSEMBLY STEP 2. ATTACH THE BASE Using 8 (H1) Screws and 1 (H2) Screw, attach base PART/DESCRIPTION assembly to (A) Cabinet with (T2) Hex Wrench. Start all screws before fully tightening all screws. T2-HEX WRENCH H1-SCREW H2-SCREW 6 | BDIUSA.COM CORRIDOR 5620... - Page 7 2 PERSON TASK STEP 3. INSTALL DOOR PULLS AND RUBBER BUMPER ASSEMBLY With help from another person, carefully position PART/DESCRIPTION (A) Cabinet upright and install (H6) Door Pulls using (H3) Screw and (T1) Phillips Screwdriver. T1-PHILLIPS Adhere (H5) Rubber Bumpers to the top of SCREWDRIVER (A) Cabinet.
- Page 8 ASSEMBLY STEP 4. PLACE GLASS TOP Place (C4) Glass Top onto the rubber bumpers on the (A) Cabinet. Be sure to place the satin etched side up. 8 | BDIUSA.COM CORRIDOR 5620...
-
Page 9: Adjustable Shelf
STEP 4. INSTALL BACK PANELS FINE TUNING ASSEMBLY ADJUSTABLE SHELF PART/DESCRIPTION The shelf pins located inside the right compartment may be repositioned using (T1) Phillips T1-PHILLIPS Screwdriver, allowing you to raise or lower the SCREWDRIVER Adjustable Shelf to the desired level. T3-OPEN MOUTH LEVEL CABINET WRENCH... -
Page 10: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please avoid positioning your BDI cabinet in any area with ample direct sunlight. -
Page 11: Warranty
The decision to repair or replace will be at BDI’s sole discretion. BDI furniture is warranted for three (3) years from the date of purchase, as shown on your sales receipt. The warranty period starts from the date of purchase. This warranty extends only to the original purchasers who acquire new products from BDI Authorized Resellers. - Page 12 USE OF TIP-OVER RESTRAINT MAY REDUCE—BUT NOT ELIMINATE—THE RISK OF TIP-OVER. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2024, BDI | V.01.22.2024...
