BDI CORRIDOR SV BAR 5621 Instruction Manual

Bar cabinet
Hide thumbs Also See for CORRIDOR SV BAR 5621:

Advertisement

Quick Links

Download this manual

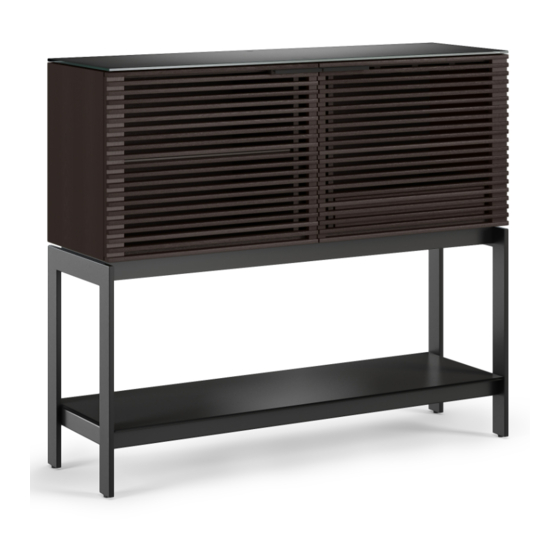

CORRIDOR® SV BAR 5621
BAR CABINET
INSTRUCTION MANUAL
LET'S GET STARTED.
DESIGN MATTHEW WEATHERLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the CORRIDOR SV BAR 5621 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BDI CORRIDOR SV BAR 5621

Summary of Contents for BDI CORRIDOR SV BAR 5621

  • Page 1 CORRIDOR® SV BAR 5621 BAR CABINET INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
  • Page 3 Congratulations on the purchase of your Corridor SV Bar 5621 from BDI. Your bar cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information to ensure you get the most out of your product.
  • Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. If you are missing any hardware, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer. The assembly workspace should be a non-marring surface such as carpet. Do not use power tools for the assembly of this product.
  • Page 5 HARDWARE AND COMPONENTS Lower Frame (C4) QTY: 1 Bottom Shelf (C5) QTY: 1 Top Panel (C6) QTY: 1 Glass Shelf (C7) QTY: 2 Door Pull (C8) QTY: 2 NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 5...
  • Page 6 Place the Upper Frame (C2) on the HEX WRENCH – T1 Cabinet (C1), paying careful attention the side hole orientation. Attach with 8 Screws (H1). Tighten with Hex Wrench (T1). SCREW – H1 Hole orientation 6 | BDIUSA.COM CORRIDOR SV BAR 5621...

  • Page 7: Step 2. Attach Legs

    STEP 2. ATTACH LEGS ASSEMBLY Attach Legs (C3) to Upper Frame (C2) using 8 Screws (H2). Tighten with Hex Wrench (T1). HEX WRENCH – T1 SCREW – H2 NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 7...
  • Page 8 HEX WRENCH – T1 using 8 Screws (H2). Ensure that the "Top" label on the Lower SCREW – H2 Frame (C4) will face up when the Cabinet is flipped over. Tighten with Hex Wrench (T1). 8 | BDIUSA.COM CORRIDOR SV BAR 5621...
  • Page 9 STEP 4. INSTALL SHELF PINS & DRAWER LINER ASSEMBLY ASSEMBLY With help from another person, carefully flip the Cabinet over to its upright position. Shelf pins can be repositioned where desired. Once shelf pins are installed, place the Drawer Liner (C7) in the drawer. Shelf pins NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 9...
  • Page 10 NOT INCLUDED Shelf Pins (H3). Attach the Door Pulls (C9) to the doors using SCREW – H3 4 Screws (H3). Tighten with Phillips Screwdriver (not included). 10 | BDIUSA.COM CORRIDOR SV BAR 5621...
  • Page 11 STEP 6. INSTALL RUBBER BUMPERS, BOTTOM SHELF & TOP PANEL ASSEMBLY Attach the 6 adhesive-backed Rubber Bumpers (H4) to the top of the Cabinet (C1), then attach RUBBER BUMPERS– H4 6 adhesive-backed Rubber Bumpers (H4) to the top of the Lower Frame (C4). Paying attention to the labels on the underside of the glass pieces, place the Bottom Shelf (C5) and Top Panel (C6) on top of the Rubber Bumpers (H4).
  • Page 12 Fully extend the Drawer and slide the plastic tabs inwards. They are found near the ends of the slides on the underside. Gently lift the front of the drawer and pull the drawer toward you to remove it from the sides. 12 | BDIUSA.COM CORRIDOR SV BAR 5621...
  • Page 13 STEP 7. REMOVE DRAWER SLIDES ASSEMBLY Remove the 4 Screws holding the Left Drawer PHILLIPS SCREWDRIVER Slide to the interior wall using a Phillips NOT INCLUDED Screwdriver. Set these screws aside for later. Remove the 4 screws holding the Right Drawer Slide to the metal bracket using a Phillips Screwdriver. Set these screws aside for later.
  • Page 14 Attach the Metal Bracket on the opposite side of the cabinet, reinserting the 4 Bracket Mounting Screws you just removed into the threaded inserts in the bottom panel of the cabinet. Tighten with a Phillips Screwdriver. 14 | BDIUSA.COM CORRIDOR SV BAR 5621...
  • Page 15 STEP 9. MOUNT DRAWER SLIDES ON OPPOSITE SIDE ASSEMBLY Mount the Left Drawer Slide to the Metal PHILLIPS SCREWDRIVER Bracket using 4 of the Drawer Slide Mounting NOT INCLUDED Screws. Tighten with a Phillips Screwdriver. Mount the Right Drawer Slide to the interior wall of the cabinet using the remaining 4 Drawer Slide Mounting Screws.
  • Page 16 ASSEMBLY STEP 10. INSTALL DRAWER Gently place the drawer back on the drawer slides. Slide the drawer all the way back until it drops in place and sits flush on the drawer slides. 16 | BDIUSA.COM CORRIDOR SV BAR 5621...
  • Page 17 STEP 11. SECURE DRAWER INTO PLACE ASSEMBLY Push the plastic pins found near the ends of the drawer slides back into their place. This will secure the drawer in place on the slides. NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 17...

  • Page 18: Care And Maintenance

    Your BDI furniture has been constructed with the finest materials, manufactured with care and is designed to last a lifetime. Regular care of your furniture will prolong your enjoyment and keep it looking its best. Here are some general tips for taking care of BDI furniture. Your surfaces may vary. GLASS The glass surface is maintained using household glass cleaner and a paper towel or cloth.

  • Page 19: Warranty

    BDI’s sole discretion. BDI furniture is warranted for three (3) years from the date of purchase as shown on your sales receipt. The warranty period starts from the date of purchase. This warranty extends only to the original purchasers who acquire new products from BDI Authorized Resellers.
  • Page 20 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2022, BDI | V.10.21.2022 Made in China...
