- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: TP-580Txr HDMI Line Transmitter TP-580Rxr HDMI Line Receiver P/N: 2900-300088 Rev 4...
-
Page 3: Table Of Contents
Figure 2: TP-580Rxr HDMI Line Receiver Figure 3: Connecting the TP-580Txr/TP-580Rxr Transmitter/Receiver Figure 4: Controlling a DVD Player via the TP-580Rxr Figure 5: Controlling an LCD Display via the TP-580Txr Figure 6: RS-232 Control Figure 7: TP PINOUT TP-580Txr/TP-580Rxr – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
The TP-580Txr and TP-580Rxr are a high-performance, extra range, HDBaseT technology Twisted Pair transmitter and receiver for HDMI, bidirectional RS-232 and IR signals. The TP-580Txr converts the HDMI signal, RS-232 and IR input signals to a twisted pair signal. The TP-580Rxr converts the twisted pair signal back into HDMI, RS-232, and IR signals. -
Page 8: About Hdbaset™ Technology
IR, as well as various control signals. The products described in this user manual are HDBaseT certified. Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our BC−HDKat6a digital twisted pair products; (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables. -

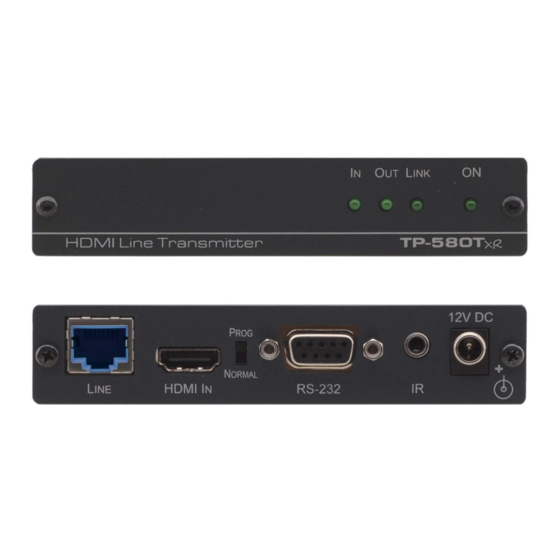

Page 9: Defining The Tp-580Txr Hdmi Line Transmitter
Connector HDMI IN Connector Connects to the HDMI source PROG/NORMAL Switch Slide to PROG to upgrade to the latest Kramer firmware via RS-232, or slide to NORMAL for normal operation RS-232 9-pin D-sub Connects to an RS-232 port for firmware upgrade and... -
Page 10: Defining The Tp-580Rxr Hdmi Line Receiver
Lights green when an HDMI input device is connected OUT LED Lights green when an HDMI output device is detected LINK LED Lights green when the TP connection is active ON LED Lights green when receiving power TP-580Txr/TP-580Rxr - Defining the TP-580Rxr HDMI Line Receiver... -
Page 11: Connecting The Tp-580Txr / Tp-580Rxr Transmitter / Receiver
Transmitter and Receiver. After connecting your Transmitter and Receiver, connect their power and then switch on the power to each device. You can use the TP-580Txr HDMI Line Transmitter and the TP-580Rxr HDMI Line Receiver to configure an HDMI transmitter/receiver system, as shown in the example in... -
Page 12: Figure 3: Connecting The Tp-580Txr/Tp-580Rxr Transmitter/Receiver
Figure 3: Connecting the TP-580Txr/TP-580Rxr Transmitter/Receiver TP-580Txr/TP-580Rxr - Connecting the TP-580Txr / TP-580Rxr Transmitter / Receiver... -
Page 13: Controlling The A/V Equipment Via An Ir Transmitter
DVD player) to send commands (to the A/V equipment) from either end of the transmitter /receiver system. To do so, you have to use the Kramer external IR sensor on one end (P/N: 95-0104050) and the Kramer IR emitter cable on the other end (P/N: C-A35/IRE-10) Two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable. -
Page 14: Figure 5: Controlling An Lcd Display Via The Tp-580Txr
TP-580Rxr using a remote control, via theTP-580Txr. In this example, the External IR Sensor is connected to the IR connector of the TP-580Txr and an IR Emitter is connected between the TP-580Rxr and the LCD display. The LCD display remote control sends a command while pointing towards the External IR Sensor. -
Page 15: Connecting To A Pc
3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC. Figure 6 shows RS-232 bidirectional control of the projector that is connected to TP-580Rxr, via a PC connected to the TP-580Txr: Figure 6: RS-232 Control TP-580Txr/TP-580Rxr - Connecting the TP-580Txr / TP-580Rxr Transmitter / Receiver... -
Page 16: Wiring The Tp Line In / Line Out Rj-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 7: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown TP-580Txr/TP-580Rxr - Connecting the TP-580Txr / TP-580Rxr Transmitter / Receiver... -
Page 17: Technical Specifications
0.6kg (1.4lbs) ACCESSORIES: Power supply (12V, 0.5A) Power supply (12V, 1.25A) RK-3T 19” rack mount; Kramer external IR sensor (P/N: 95-0104050), OPTIONS: Kramer IR emitter cable (P/N: C-A35/IRE-10), Kramer BC−HDKat6a cable Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com... - Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
