Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: KW-11T Wireless High Definition Transmitter KW-11R Wireless High Definition Receiver P/N: 2900-300194 Rev 8... -
Page 3: Table Of Contents
KW-11T Mini USB Pinout FCC Radio Frequency Interference Statement Figures Figure 1: KW-11T Wireless High Definition Transmitter Top and Side Panels Figure 2: KW-11R Wireless High Definition Receiver Front and Rear Panels Figure 3: Connecting the KW-11T and KW-11R Figure 4: KW-11T Mini USB Pinout... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio, and GROUP 14: Collaboration. Thank you for purchasing the Kramer KW-11T Wireless High Definition ® Transmitter and DigiTOOLS... -
Page 5: Getting Started
Always mount the KW-11R vertically using the supplied stand Do not place objects next to the KW-11T transmitter or KW-11R receiver Do not secure the cables in tight bundles or roll the slack into tight coils ... -
Page 6: Recycling Kramer Products
In this environment, the KW-11T and KW-11R can be added to the system ONLY if the connecting equipment has been evaluated and meets the IEC 60601-1-2 EMC standards. -
Page 7: Overview
The KW-11T and KW-11R is a high-definition, wireless, HDMI transmitter and receiver combination for indoor use over short range distances. The KW-11T converts an HDMI signal into a wireless signal. The KW-11R converts the wireless signal back into HDMI. The KW-11T and KW-11R support: ... -
Page 8: Defining The Kw-11T/Kw-11R Line Transmitter And Receiver

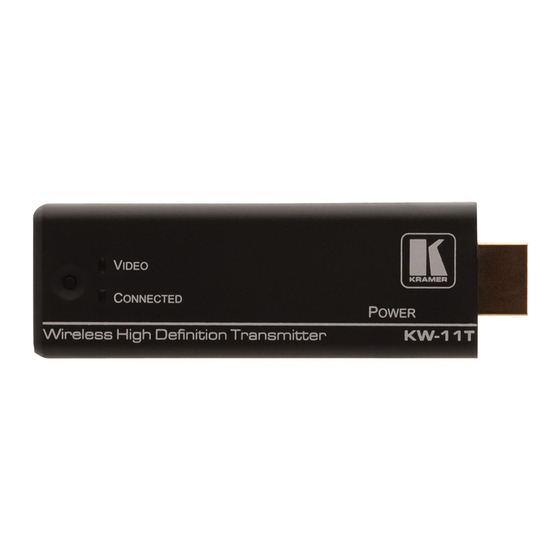

Section 4.2) Defining the KW-11T Wireless High Definition Transmitter The KW-11T encodes an HDMI signal and transmits it uncompressed and without delay over a wireless link to the KW-11R receiver. Figure 1 defines the top and side panels of the KW-11T. -
Page 9: Defining The Kw-11R Wireless High Definition Receiver
Defining the KW-11R Wireless High Definition Receiver The KW-11R receives the wireless signal from the Kramer KW-11T and converts it into an HDMI output. Figure 2 defines the front and rear panels of the KW-11R. Figure 2: KW-11R Wireless High Definition Receiver Front and Rear Panels... -
Page 10: Connecting The Kw-11T And Kw-11R
Always switch off the power to all devices before connecting your KW-11T and KW-11R. Connecting the KW-11T and KW-11R Note: For best performance always mount the KW-11R receiver vertically using the supplied stand. Figure 3: Connecting the KW-11T and KW-11R KW-11T/KW-11R - Connecting the KW-11T and KW-11R... - Page 11 Note: The HDCP status of the KW-11 follows that of the device connected to its output. To connect the KW-11T and the KW-11R as illustrated in the example in Figure 1. On the KW-11T connect: The HDMI source (for example, a VP-81SIDN or laptop computer) to the HDMI connector ...
-
Page 12: Frequently Asked Questions
A: Up to three. Note: Limited to two in Japan and Israel due to frequency limitations. Q: What restrictions are there when using multiple KW-11T/KW-11R pairs in the same room? A: Two devices should be no closer to one another than 50cm (20in). -
Page 13: Technical Specifications
ACCESSORIES: receiver stand, Mini USB to USB power cable The KW-11T and KW-11R are wireless devices and are subject to wireless certification restrictions. They are currently certified for use in various countries including the US and EU. Consult your local sales office for details regarding certification in your country. -
Page 14: Supported Video Formats
800x600 @ 60.317 / 72.188Hz SVGA 1024x768 @ 60 / 70.069Hz 1280x768 @ 60Hz WXGA 1280x1024 @ 60Hz SXGA KW-11T Mini USB Pinout Figure 4: KW-11T Mini USB Pinout USB Pin Description Number Do not connect Do not connect Do not connect 0V Ground... -
Page 15: Fcc Radio Frequency Interference Statement
Consult the dealer or an experienced radio/TV technician for help Kramer Electronics is not responsible for any radio or communication interference caused by using other than specified or recommended cables and battery or by unauthorized changes or modifications to this equipment. Changes or modifications not expressly approved by the manufacturer could void the user’s... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
