Operating Instructions

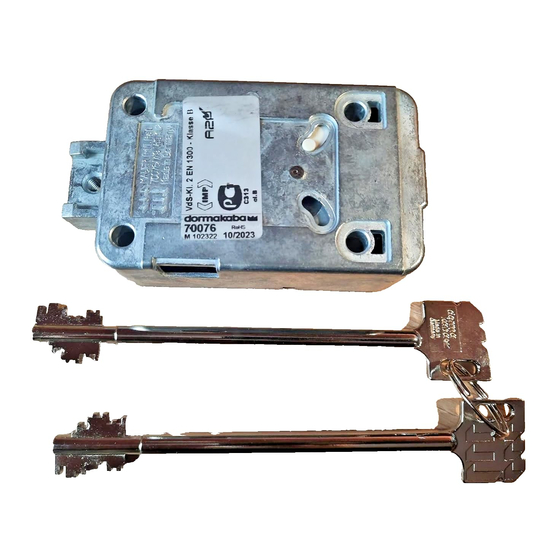

70076 Variator B
1 Important Instructions
• The locking mechanism works smoothly. No force should be applied. This should be particularly
avoided when inserting the key in the lock.
• The locking mechanism can only be changed over to another pair of keys if a valid key is still
available. The lock should be converted to a new pair of keys immediately if a key is lost.
• Opening the lock with a damaged key can result in damage to the lock.
• If damaged or heavily worn out keys are used, the function of the lock cannot be secured. We
recommend checking the condition of the keys before using them. Do not use damaged or
heavily worn out keys but change them.
• The lock must not be lubricated.
• The lock is designed for use in non condensing humidity.
• The lock may only be installed by specialist personnel and only opened by the manufacturers.
Unauthorised opening will lead to invalidation of any warranty claims.
• Only original dormakaba keys are to be used should additional keys be required, as otherwise
no warranty claims may be raised.
• The key has to be removed after closing the lock and to be stored in a safe place where unau
thorized persons have no access.
• After key loss you have to change the coding of the lock or the lock itself immediately.
2 Opening
• Insert the key in the keyhole as specified in the table below. Turn the key in the appropriate di
rection until the stop position is reached (approx. 150°).
• The key cannot be removed when the lock is open.
Lock Installation Position
Bolt left, keyhole horizontal
Bolt down, keyhole vertical
Bolt right, keyhole horizontal* Long bit right
Bolt up, keyhole vertical
* NB: Lock installation position "bolt right, keyhole horizontal" is only possible in connection with option "left
hand lock, opening anti-clockwise" (SLG)!
Key Insertion Position
Long bit left
Long bit down
Long bit up
Direction of Turn
Clockwise
Clockwise
Anti-clockwise
Clockwise
