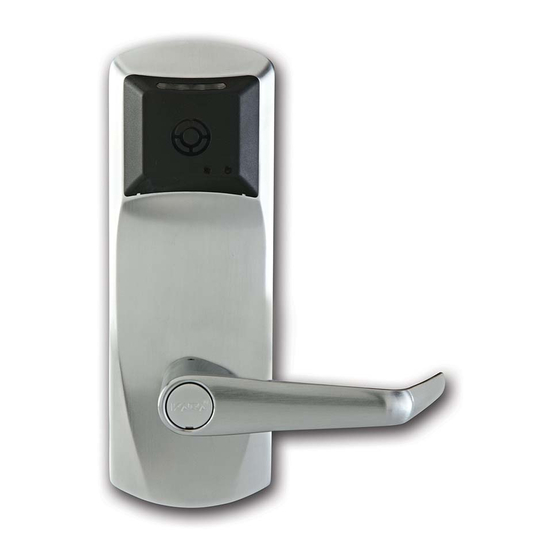

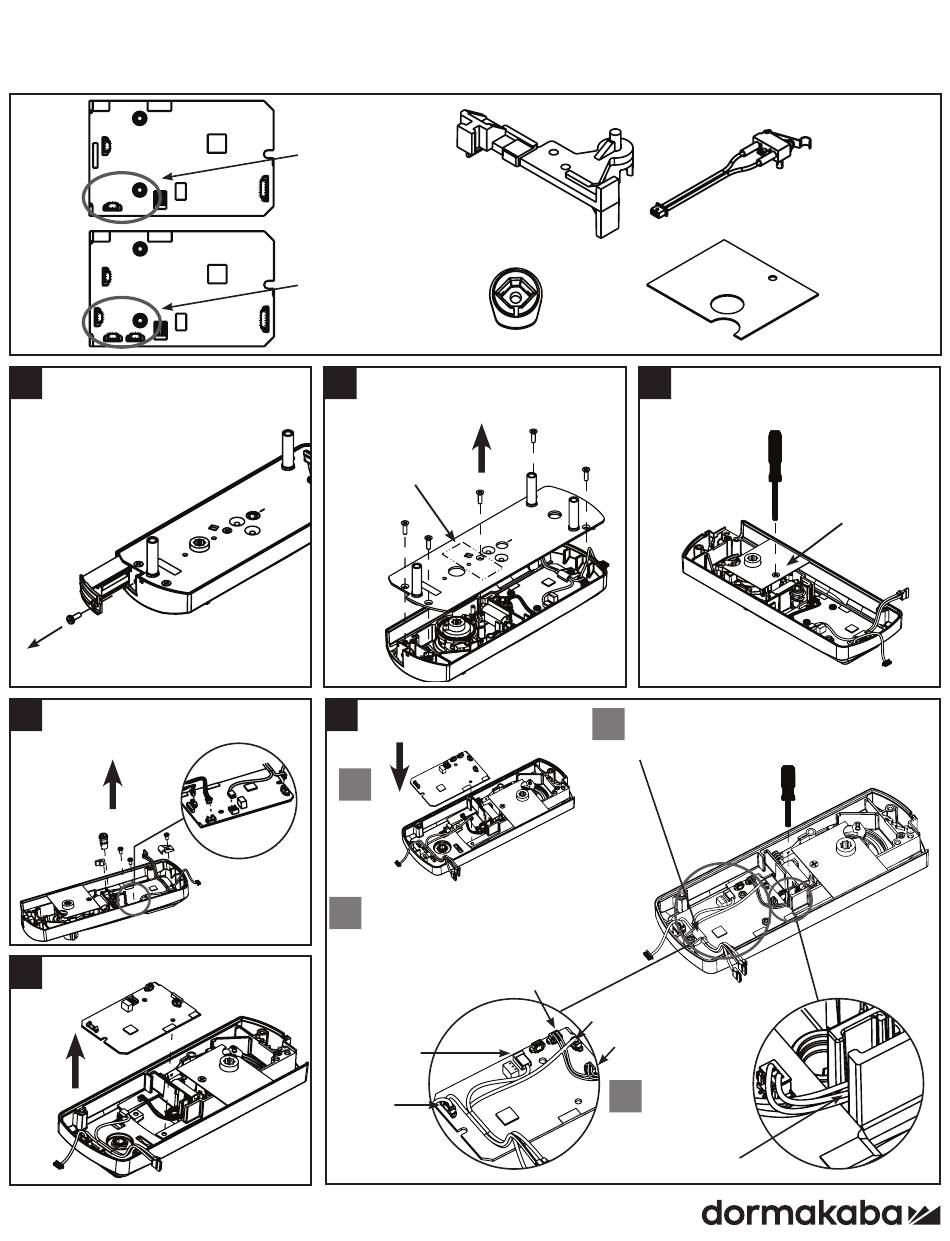

790/79 Series Rework Installation Sheet
IMPORTANT: Wear Safety glasses before starting the replacement of parts.
1
Remove screw and take out
battery pack
4
Remove foam, cam & screws and
disconnect cables
5
Remove PCB
PK 361 2_0 3 _19
Current PCB
New PCB
2
Remove 5 screws and take off the
back plate
Screw below
center label
6
Assemble New PCB
A
Before placing PCB connect stan-
B
dard cables and cables for door
option if applicable at orientation
as shown
Override Switch (See step 4)
Option
Option
790/79 Series LOCK PCB + PRIVACY MECH. PARTS
Switch
Holder
New
Cam
3
Assemble protective bracket and
hold with one of the 5 screws from
step 2
Place the plastic clip to hold the cables
D
in place. Make sure the clip is not on the
cables before to hold it with the screw
Use screws
from step 4
Option
Motor (See step 4)
Pass cables in
C
housing gap
push cables
away from the
screw head
New privacy
Switch
Protective
Bracket
Protective
Bracket
