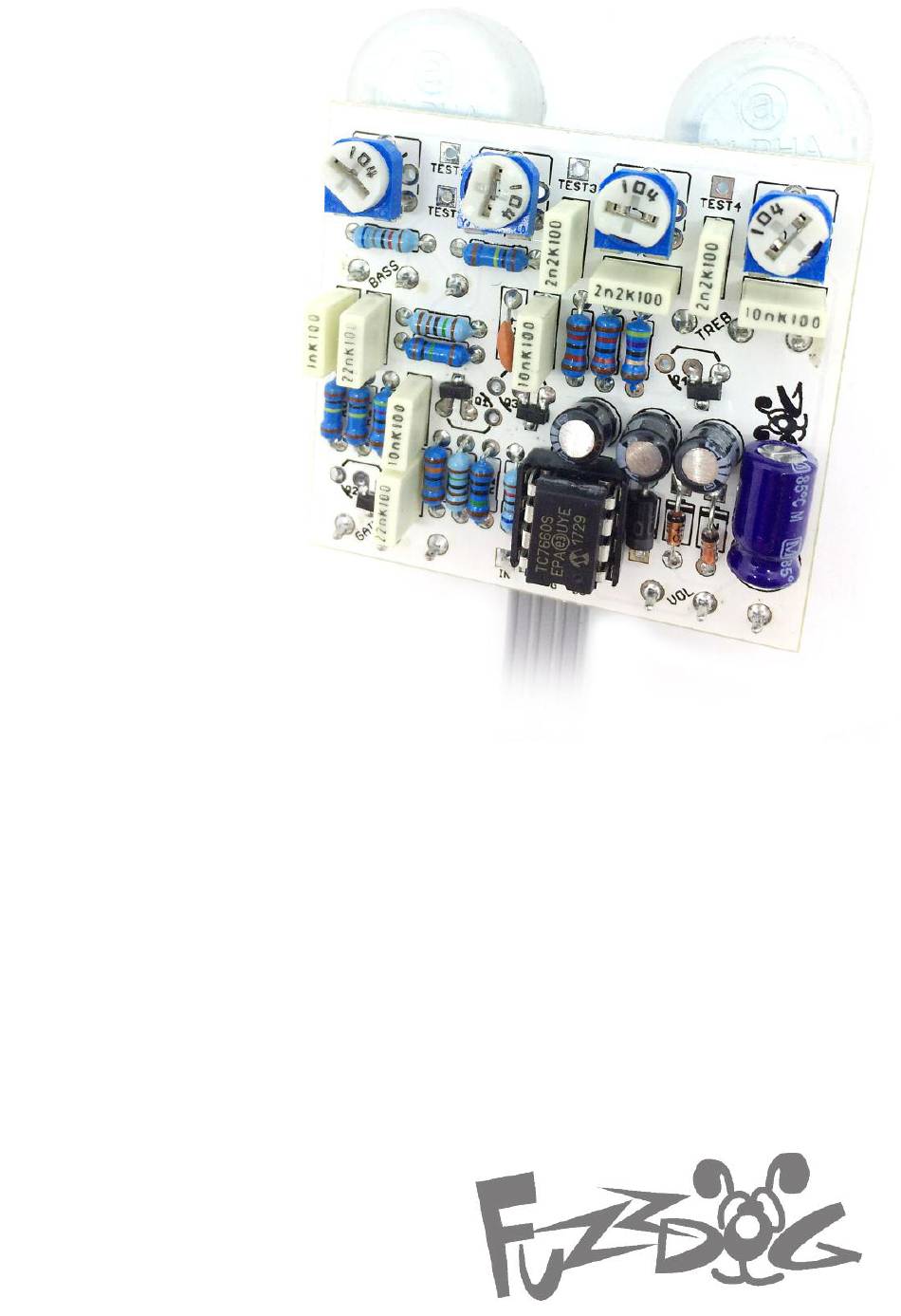

Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
Page 3
Schematic + BOM Values in green are our subsitutions for an altogether nicer result. Honest. 7660S (470p) or MAX1044* (10n) 180K 680p Q1-4 J201** (2K2) 100K D1-2 1N4148/1N4001 (2K2) 1N4001 BASS (500KA) 100K TREB (500KB) 10u elec GAIN 10u elec 100KA 47u elec 100K...
Page 5
0.25V. The power and signal pads on the PCB conform Repeat with Test 2/T2 etc. It doesn’t have to be to the FuzzDog Direct Connection format, so exact. Close to half is fine. can be paired with the appropriate For Q4 it’s best to do it by ear.
Page 6
Test the board! Check the relevant daughterboard document for more info before you undertake this stage. UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
Page 7
Wire it up (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD BOARD BOARD BATTERY Wiring shown above will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. The Board GND connections don’t all have to directly attach to the board.
Page 8
27mm 32mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
