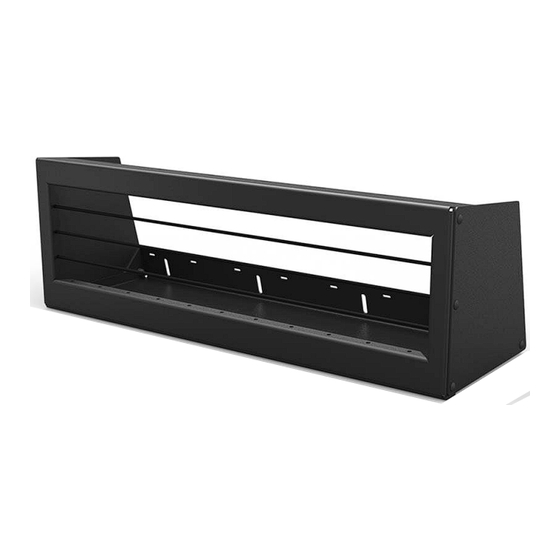

36" SP RINT ER VAN OP EN FACE UP PE R CABI N ET
SP5005 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
TAPE MEASURE
+
3/16" DRILL BIT
+
RATCHET (OPTIONAL)
+
RIVET NUT TOOL
+
7/16" WRENCH (OR SOCKET)
+
1/4" MANDREL
+
POWER DRILL
+
IMPACT DRIVER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP5005B
Summary of Contents for FVC SP5005B
- Page 1 INSTALLATION GUIDE 36” SP RINT ER VAN OP EN FACE UP PE R CABI N ET SP5005 B TOOLS REQUIRED (NOT INCLUDED) TAPE MEASURE 3/16” DRILL BIT RATCHET (OPTIONAL) RIVET NUT TOOL 7/16” WRENCH (OR SOCKET) 1/4” MANDREL POWER DRILL IMPACT DRIVER INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR...
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS FRONT PANEL BOTTOM PANEL ADWAG SIDE PANEL STOCK SIDE PANEL BUNGEE CORD QTY: 1 QTY: 1 QTY: 2 QTY: 2 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 SQUARE NECK 1/4 FLAT WASHER 1/4 NYLON LOCKNUT CARRIAGE BOLT QTY: 12 QTY: 12 QTY: 12 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: TAPE MEASURE 144” HIGH ROOF + LOW ROOF SPRINTER VAN STEP | 01 LAYOUT AND INSTALL PREP Determining where you’d like to install your cabinet is up to you, however there are some tips that make choosing the location a little easier.
- Page 6 7/16” SOCKET OR WRENCH TOOLS REQUIRED FOR THIS STEP: STEP | 02 CABINET SHELL ASSEMBLY 2.1 Determine which side panels you’ll need for your install. In FIG 3, note the difference between the Adwag Side Panel from the Stock Side Panel. The Adwag Side Panel has a straight, steep angle while the Stock Side Panel has a curved edge that matches the shape of the factory headliner.
- Page 7 RIVET NUT METHOD TAPPING SCREWS METHOD TOOLS REQUIRED FOR THIS STEP: POWER DRILL POWER DRILL 3/16” DRILL BIT 3/16” DRILL BIT RIVET NUT TOOL IMPACT DRIVER 1/4” MANDREL 7/16” SOCKET STEP | 03 MOUNTING TO VAN The upper and lower mounting surfaces of the Cabinet have multiple horizontal slots to accept hardware for wherever and however you’d like to install them.
- Page 8 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
