S PRI NTER VAN L-TRACK KIT - 17 0"
SP0313 B + SP0 313S
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
SCREWDRIVER
+
IMPACT DRIVER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1-2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP0313B
Summary of Contents for FVC SP0313B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN L-TRACK KIT - 17 0” SP0313 B + SP0 313S TOOLS REQUIRED (NOT INCLUDED) SCREWDRIVER IMPACT DRIVER INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1-2 HOURS Additional help is suggested for a few of the install steps.
- Page 2 BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.

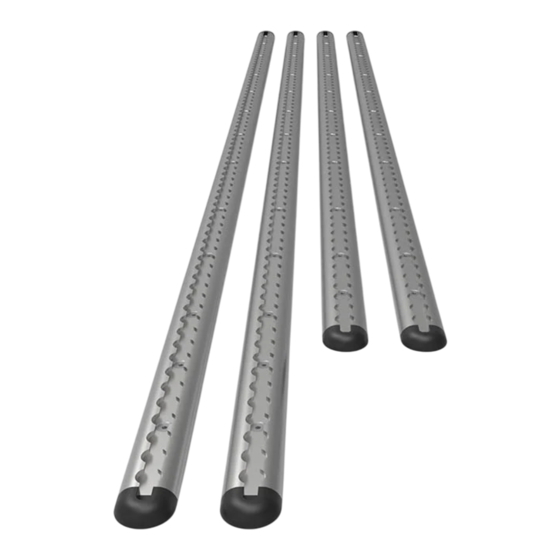

- Page 3 PACKAGE CONTENTS QTY: 1 QTY: 1 QTY: 1 QTY: 1 SPRINTER 170 BED REAR SPRINTER 170 BED FRONT SURFACE MOUNT L L-TRACK L-TRACK TRACK END CAP QTY: 2 QTY: 2 QTY: 8 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 4 HARDWARE #8 X 0.5 FLAT HEAD PHILLIPS DRIVE 1/4-20 X 0.75 FLAT HEAD HEX DRIVE SCREW SCREW QTY: 8 QTY: 48 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 1.1 Identify Mounting Locations: Find the pre-threaded holes highlighted blue in FIG 1 and 2 that you’ll use to install your L-Track Kit to FVC Sprinter Bed Brackets. NOTE - This install will require you to drill clearance holes through your wall panels. Remove them to access your Bed Brackets.
- Page 6 TOOLS REQUIRED FOR THIS STEP: [REAR BRACKETS] STEP | 02 L-TRACK INSTALL 2.1 Identify L-Track Extrusions: See FIG 3 and 4 for relevant dimensions for determining which L-Tracks are spaced for the Front and Rear Bed Brackets. 4” 4” NOTE - For install with Wall Panels, measure and determine the location of the bottom hole of the bed bracket and transfer the mark to the corresponding location along your Wall Panel.
- Page 7 TOOLS REQUIRED FOR THIS STEP: STEP | 02 L-TRACK INSTALL 2.2 Position L-Track to Bracket: Position the appropriate L-Track to your Bed Bracket and flex it to match the contour of the van’s wall. F I G 5 F I G 6 F L AT L I N E VA N C O •...
- Page 8 TOOLS REQUIRED FOR THIS STEP: SCREWDRIVER STEP | 02 L-TRACK INSTALL 2.3 Secure L-Track to Bracket: Starting with the Bottom-Most mounting hole, secure the L-Track in place using 1/4-20 X 0.75 Flat Head Hex Drive Screws. F I G 7 F I G 8 F L AT L I N E VA N C O •...
- Page 9 TOOLS REQUIRED FOR THIS STEP: SCREWDRIVER IMPACT DRIVER STEP | 02 L-TRACK INSTALL 2.4 Attach End Caps (OPTIONAL): If your application necessitates trimming the L-Track Extrusion, we’ve supplied End Caps to use at your discretion. Simply snap it into place in the orientation shown in FIG 9 and finish by driving a #8 Screw into your wall panel (if applicable).
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
