- Page 1 Installation Guide Sprinter Headliner Shelf SP5002B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW HEADLINER SHELF? HERE ARE A FEW THINGS TOOLS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.

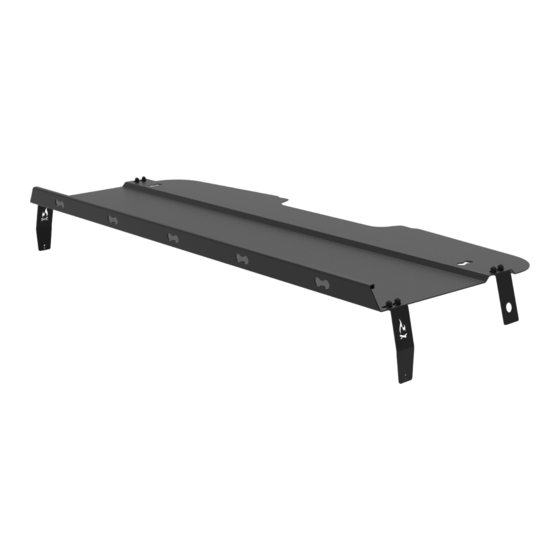

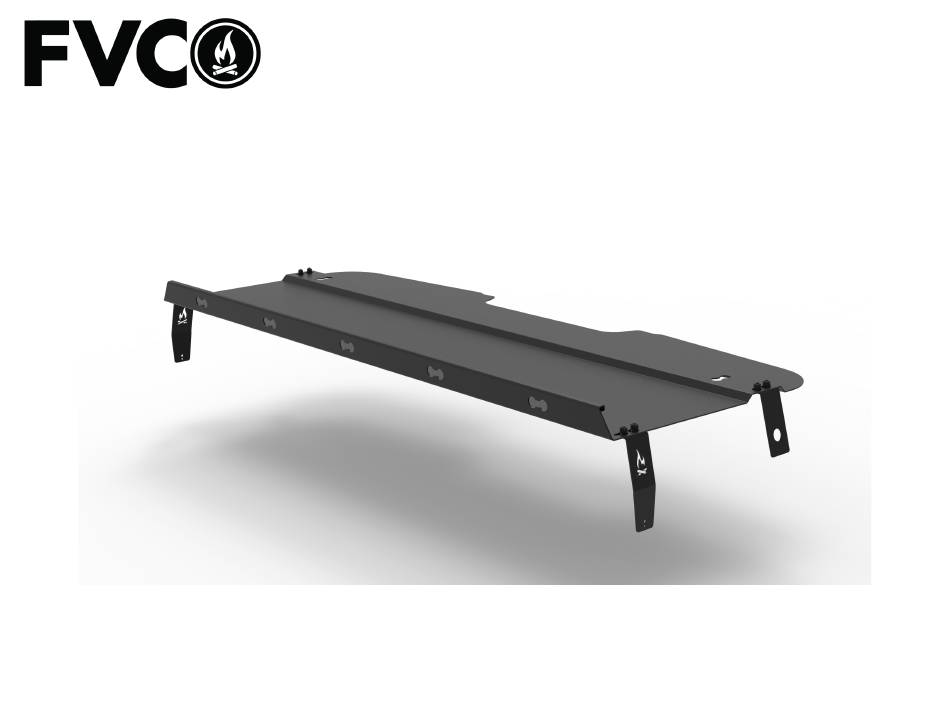

- Page 4 PACKAGE CONTENTS SHELF B PILLAR BRACKET GRAB HANDLE QTY-1 QTY-2 BRACKET QTY-6 1/4-20 BUTTON HEAD SCREW 1/4-20 NYLOCK 1/4 FLAT WASHER QTY-8 QTY-8 QTY-8 INSTALLATION GUIDE STICKER PACK QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! FIRST STEP IS TO REMOVE THE RUBBER COAT HOOK COVERS, AND THE BOLT COVERS (IF THEY’RE THERE) ON THE GRAB HANDLES. NOTE-THIS WHERE A PLASTIC TRIM TOOL CAN COME IN HANDY. NEXT REMOVE THE SCREWS, T25 FOR THE COAT HOOK AND T30 FOR THE GRAB HANDLE.
- Page 6 NOW TAKE THE GRAB HANDLE BRACKETS AND PUT THEM IN PLACE (SEE RIGHT) YOU’LL NEED TO PULL ON THE HANDLE TO GET THE BRACKET TO NESTLE BEHIND IT. THEN SCREW THE BOLT BACK IN, SNUG BUT NOT TIGHT. TAKE THE B PILLAR BRACKET AND SLIDE IT BEHIND THE B PILLAR TRIM OF YOUR VAN, YOU MAY NEED TO PULL THE TRIM OUT JUST A LITTLE TO GET THE BRACKET TO SLIDE DOWN.
- Page 7 NOW, TAKE YOUR SHELF AND SLIDE IT INTO PLACE, THEN LIFT IT UP SO THAT IT RESTS UNDERNEATH THE BRACKET FLANGES (THIS IS WHERE HAVING A HELPER COMES INTO PLAY) WHILE HOLDING IT UP, TAKE YOUR 1/4-20 SCREWS, FLAT WASHERS, AND NYLOCKS AND GET THEM STARTED TO HOLD THE SHELF UP.
- Page 8 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
