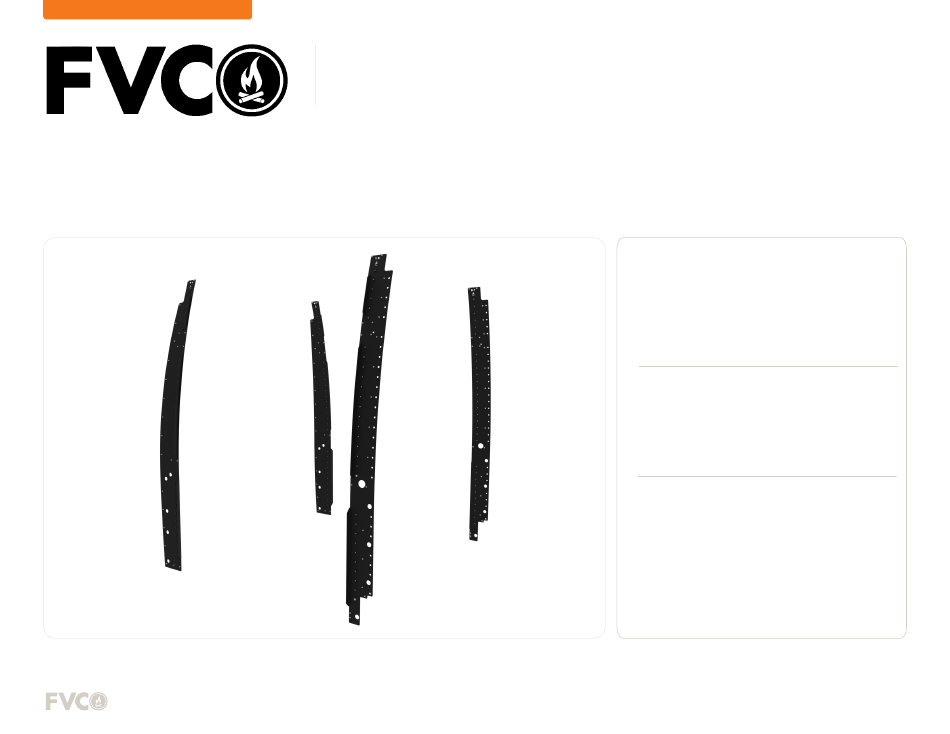

S PRI NTER VAN B ED B RACKETS - 1 44 "
SP0310 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
POWER DRILL
+
POP RIVET TOOL
+
TAPE MEASURE
+
MARKER
+
CLAMP OR SELF DRILLING SCREWS
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP0310B
Summary of Contents for FVC SP0310B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN B ED B RACKETS - 1 44 ” SP0310 B TOOLS REQUIRED (NOT INCLUDED) POWER DRILL POP RIVET TOOL TAPE MEASURE MARKER CLAMP OR SELF DRILLING SCREWS INSTALL INFO TIME TO INSTALL THIS PRODUCT: 2 HOURS Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents

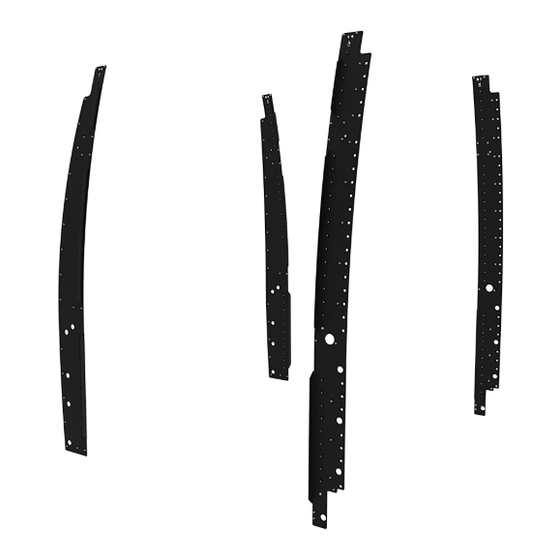

PACKAGE CONTENTS QTY: 1 QTY: 1 QTY: 1 QTY: 1 PASSENGER REAR PASSENGER FRONT DRIVER FRONT DRIVER REAR BRACKET BRACKET BRACKET BRACKET QTY: 1 QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE .1875 X .125-.250 THK DOMED HEAD BLIND #9 SHORT STEEL DRILL BIT ALUMINUM RIVET QTY: 1 QTY: 90 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: STEP | 01 LAYOUT AND INSTALL PREP 1.1 Driver Side Alignment Locations: See FIG 1 for alignment hole locations for Driver Side Bracket installation. DRIVER SIDE 1.2 Passenger Side Alignment Locations: See FIG 2 for ALIGNMENT HOLE LOCATIONS alignment hole locations for Passenger Side Bracket installation...
- Page 6 POWER DRILL TOOLS REQUIRED FOR THIS STEP: QUICK CLAMP SELF TAPPING SCREW STEP | 02 DRIVER SIDE BRACKETS 2.1 Align Driver Side Front Bracket: Align the Driver Side Front Bracket to the Alignment Point as shown in FIG 3. There should also be a Body Seam that you can use as a visual guide.
- Page 7 POWER DRILL TOOLS REQUIRED FOR THIS STEP: QUICK CLAMP SELF TAPPING SCREW STEP | 03 PASSENGER SIDE BRACKETS BODY 3.1 Align Driver Side Front Bracket: Align the Driver Side Front SEAM Bracket to the Alignment Point as shown in FIG 5. There should also be a Body Seam that you can use as a visual guide.
- Page 8 TAPE MEASURE TOOLS REQUIRED FOR THIS STEP: MARKER POWER DRILL POP RIVET TOOL STEP | 04 SECURING DRIVER SIDE 4.1 Measure Bracket Spacing: Once you have the Bed Brackets 55.5” held in place, you’ll need to confirm that the distance between rail mounting points are square at 55.5”...
- Page 9 TAPE MEASURE TOOLS REQUIRED FOR THIS STEP: MARKER POWER DRILL POP RIVET TOOL STEP | 05 SECURING PASSENGER SIDE 5.1 Measure Bracket Spacing: Once you have the Bed Brackets held in place, you’ll need to confirm that the distance between 55.5”...
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
