The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively "Elo") makes no
representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a
particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation
of Elo to notify any person of such revisions or changes.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior
written permission of Elo Touch Solutions, Inc.
Elo and the Elo logo are either trademarks or registered trademarks of Elo Touch Solutions, Inc.
Summary of Contents for Elo TouchSystems I 3 Series
Page 1

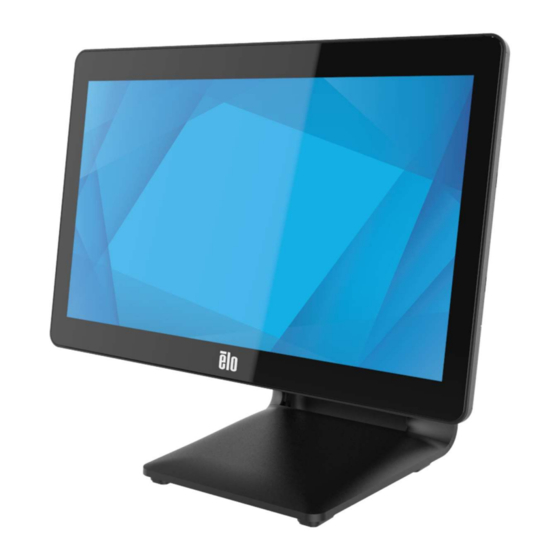

Kit Contents I-Series Touchcomputer DC Power Supply 1.8m US Power Cable 1.8m EU Power Cable 0.9m RJ50 to DB9 Serial Cable 2x Cable Tie 4x M4x12 Screw Quick Installation Guide I-Series 3 with Intel® Revision A P/N E561149 Learn more about Elo at EloTouch.com Americas Europe (EMEA)
Page 2
Unsnap the cable covers from the display. Route cables through guide fingers in display. Tie down cables using included Cable Ties at two loca- tions shown. Cable Tiedowns (2x) Reinstall the cable covers by snapping into the display and tightening the two screws. Mount on stand Connect the power adapter.
