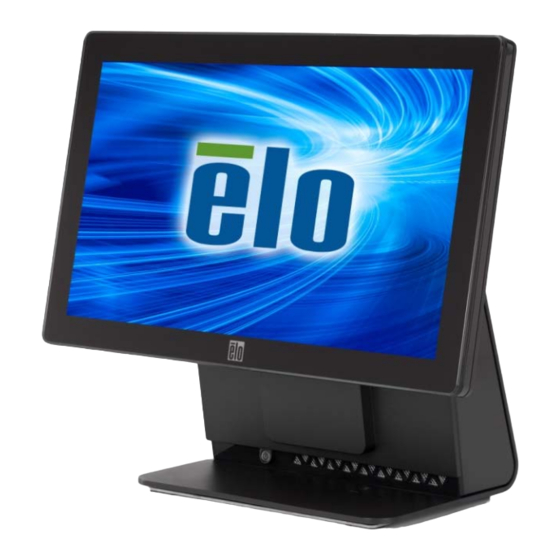

15.6” widescreen e-series revc all-in-one touchcomputer
Hide thumbs Also See for E-Series:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Elo Touch Solutions
15.6" Widescreen E-Series RevC All-in-One Touchcomputer
SW602266 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elo TouchSystems E-Series

Summary of Contents for Elo TouchSystems E-Series

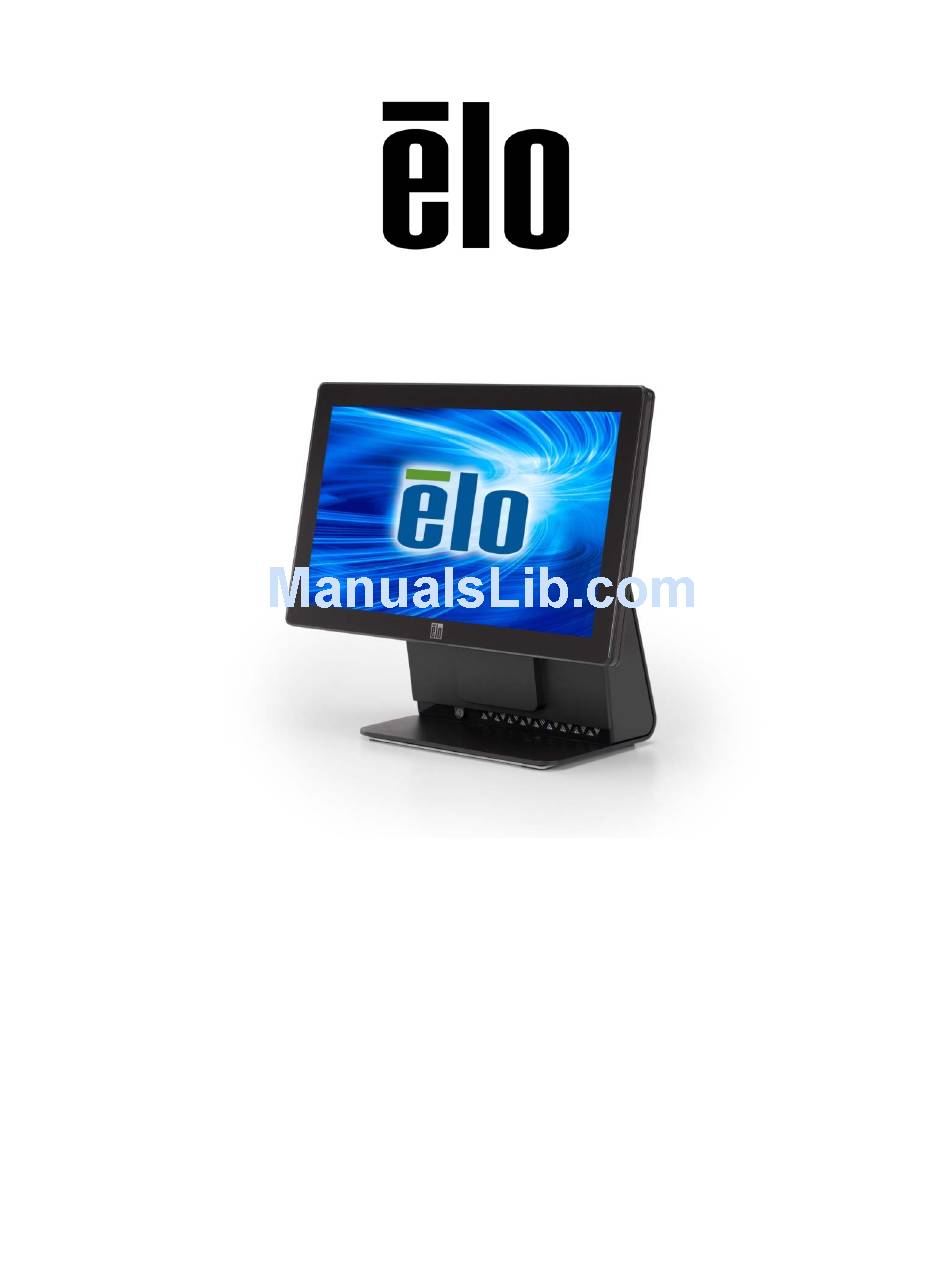

  • Page 1 USER MANUAL Elo Touch Solutions 15.6” Widescreen E-Series RevC All-in-One Touchcomputer SW602266 Rev A...
  • Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments AccuTouch, CarrollTouch, Elo, Elo (logo), Elo Touch, Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch, SecureTouch, TouchTools and VuPoint are trademarks of Elo and its Affiliates.

  • Page 3: Table Of Contents

    ..............7   Additional Mounting Option for Your System   ................8 Chapter 2: Operation ................9   Elo Touch Solutions – E-Series Hardware Monitoring Utility ..........9   LED Functionality ........................10   Accessing the Input/Output Panel ....................11   Setting Up the Operating System .....................12  ...

  • Page 4: Chapter 1: Setup

    Unpacking Your Touchcomputer Check that the following items are present and in good condition: Touchcomputer Power cable US/Canada Power cable Europe Quick Install Guide Extended Cable Cover Power Adapter User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 4 of 32...

  • Page 5: Adjusting The Display

    The display screen can be adjusted from -17 to +75 degrees, as shown below. 75° ° +75° -17° CAUTION: To prevent tipping or dropping, be sure to hold the base when adjusting the display. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 5 of 32...

  • Page 6: Calibrating The Touchscreen

    EloConfig shortcut on the system desktop (for Windows 7 & 8.1) and then click “Calibrate Touch Screens”. This launches the calibration program. The window shown below opens. Follow the instructions to calibrate the touchscreen. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 6 of 32...

  • Page 7: Additional Extended Cable Cover For Your System

    Additional Extended Cable Cover for Your System E-Series RevC provides an additional extended cable cover in the accessory box. You may need to replace the original cable cover to the extended cable cover if most of I/O ports have been connected.

  • Page 8: Additional Mounting Option For Your System

    1) Mounting on the wall REMOVE SCREWS TO REMOVE FOOT PLATE 2) Second monitor mount onto your system (any monitor under 2.5 Kg with 75mm VESA mount) User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 8 of 32...

  • Page 9: Chapter 2: Operation

    OPERATION This chapter describes how to interact with the Elo Touch Solutions diagnostic tool, power LED, and input/output panel. Elo Touch Solutions – E-Series Hardware Monitoring Utility E-Series Hardware Monitor Menu User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 9 of 32...

  • Page 10: Led Functionality

    Alarm About General information for the E-Series diagnostic tool. LED Functionality The E-Series base has a LED indicating the state of the touchcomputer. The table below shows LED state and corresponding color. LED Color to Observer State No input power — Off mode Input power present –...

  • Page 11: Accessing The Input/Output Panel

    A security screw is included and may be used to secure the front cover to the touchcomputer. Below are the I/O descriptions: Note: As a safety precaution, always leave the I/O cover attached when the system is powered on. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 11 of 32...

  • Page 12: Setting Up The Operating System

    1. Power off your system completely. 2. Power on your system. 3. After the Elo splash screen (shown below), press “↑” or “↓” repeatedly to pause on Windows Boot Manager. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 12 of 32...
  • Page 13 4. Select either Restore OS 32bit or Restore OS 64bit depending on your OS environment. 5. The following User Interface (UI) will be presented: 6. Select Inject Language, and the following UI will be presented. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 13 of 32...
  • Page 14 It may cause an error in the language injection process. 9. After the language package is installed correctly, press any key to exit the window. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 14 of 32...
  • Page 15 10. You should see the new injected language in both “Selected Language” and “Injected Language”. 11. Click Cancel  Exit. The system will reboot and new language UI should be presented when the system enters the Desktop. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 15 of 32...

  • Page 16: Creating The Recovery Flash Drive

    USB ports on your system. 4. After the flash drive is inserted, you shall see a window as shown below. Click “Format Drive” to continue the process. PLEASE NOTE THAT ALL User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 16 of 32...
  • Page 17 6. Once the message says “Creation Restore Media success…”, please remove the flash drive and click “Exit” to exit the program. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 17 of 32...
  • Page 18 Note: All data is deleted during the recovery process. The user must back up files when necessary. Elo Touch Solutions does not accept liability for lost data or software. Note: The end user must adhere to Microsoft's Licensing Agreement User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 18 of 32...

  • Page 19: Recovering The Operating System

    1. Power off your system completely. 2. Power on your system. 3. After the Elo splash screen (shown below), press “↑” or “↓” repeatedly to pause on Windows Boot Manager. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 19 of 32...
  • Page 20 5. The following User Interface (UI) will be presented: 6. Select Restore OS. System will test your hardware automatically. Once the process completes, click Start button to perform the system recovery User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 20 of 32...
  • Page 21 8. Once completed, click the Close button. The system will return to the main menu of the Elo Recovery Solution. Then click the Exit button to restart your system. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 21 of 32...
  • Page 22 All data is deleted during the recovery process. The user must back up files when necessary. Elo Touch Solutions does not accept liability for lost data or software. NOTE: The end user must adhere to Microsoft's Licensing Agreement. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 22 of 32...

  • Page 23: Chapter 3: Safety And Maintenance

    It is important that your touchcomputer remains dry. Do not pour liquid into or onto your touchcomputer. If your touchcomputer becomes wet, do not attempt to repair it yourself. Contact Elo Customer Service for assistance. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 23 of 32...

  • Page 24: Care And Handling

    Elo has put in place recycling arrangements in certain parts of the world. For information on how you can access these arrangements, please visit http://www.elotouch.com/AboutElo/ewaste-program/. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 24 of 32...
  • Page 25 Battery Notice E-Series touch computer comes with a lithium coin cell battery, which is located in the motherboard. Take caution to not replace this battery with an unsuitable replacement as that may result in explosion hazard. Discard battery at the end of its useful life according to local laws and regulations.

  • Page 26: Chapter 4: Technical Support

    For current Elo news, product updates, and announcements, or to register to receive our Touchcomputer newsletter, go to www.elotouch.com/go/news. Using the Phone For technical support, see the table at the end of the user guide for contact information. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 26 of 32...

  • Page 27: Chapter 5: Regulatory Information

    Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential or commercial installation. This equipment generates, uses, and can User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 27 of 32...
  • Page 28 Reorient the affected receiver’s antenna. iv) Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 28 of 32...

  • Page 29: Agency Certifications

    Agency Certifications The following certifications have been issued for the touchcomputer: UL/CUL Mexico COC S-Mark Australia (RCM) Japan (VCCI) Taiwan (BSMI) China (CCC) Korea (KC) Ukraine (UKSERTCOMPUTER) User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 29 of 32...

  • Page 30: China Rohs

    Storage Temperature: -30~60 °C / Humidity: 5%~95% (non-condensing). (2). It is encouraged and recommended that this product be recycled and reused according to local laws. The product should not be thrown away casually. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 30 of 32...

  • Page 31: Chapter 6: Warranty Information

    C H A P T E R WARRANTY INFORMATION For warranty information, go to http://www.elotouch.com/Support/warranty.asp User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 31 of 32...
  • Page 32 Fax +32 (0)16 70 45 49 Fax +86 (21) 3329 1400 Fax 305-931-0124 Milpitas, CA 95035 ch.com elosales@elotouch.com www.elotouch.com.cn www.elotouch.com Copyright 2014 Elo Touch Solutions, Inc. All rights reserved. User Guide – E-Series AiO Touchcomputer SW602266 Rev A, Page 32 of 32...
