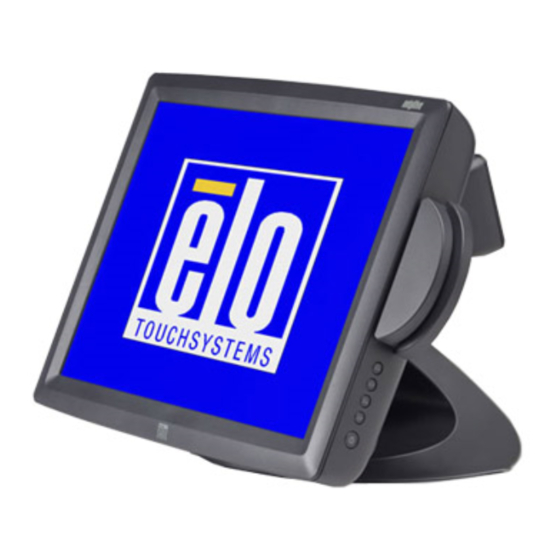

- Page 1 Touchcomputer User Guide 15A1 15" LCD Multifunction Touchcomputer...
-
Page 2: User Guide
Elo TouchSystems Touchcomputer User Guide 15" LCD Multifunction Touchcomputer ESY15A1 Revision C P/N E362310 Elo TouchSystems 1-800-557-1458 www.elotouch.com... -
Page 3: Trademark Acknowledgments
References in this publication to Elo TouchSystems products or services do not imply that Elo TouchSystems intends to make them available in all countries in which Elo TouchSystems operates. Elo TouchSystems reserves the right to... -
Page 4: Table Of Contents
Table of Contents Chapter 1 Setup Unpacking Your Touchcomputer ... 6 Product Overview ... 7 Front View ... 7 Rear View ... 7 Side View ... 8 Base Bottom View ... 8 Display Orientation ... 9 Display Orientation with Peripherals ... 9 Initial Turn-on ... - Page 5 Environmental Specifications ... 43 Temperature Ranges ... 43 Humidity ... 43 Altitude ... 43 Chapter 6 Technical Support Technical Assistance ... 44 Using the Touchcomputer ... 44 Using the Web ... 44 Using the Phone ... 44 Regulatory Information 45 Warranty 48...
-
Page 6: Setup
Unpacking Your Touchcomputer Check that the following items are present and in good condition: Touchcomputer Power cable US/Canadian European power cable PS/2 Y-cable DB9 adapter cable CD and Quick Install Guide Power Adapter Elo TouchSystems 15A1 User Guide 6... -
Page 7: Product Overview
Product Overview Front View Note: Shown with optional peripherals Rear View Elo TouchSystems 15A1 User Guide 7... -
Page 8: Side View
Side View Base Bottom View Note: Shown with optional peripherals Elo TouchSystems 15A1 User Guide 8... -
Page 9: Display Orientation
Display Orientation Elo TouchSystems 15A1 User Guide 9... -
Page 10: Display Orientation With Peripherals
Display Orientation with Peripherals Elo TouchSystems 15A1 User Guide 10... -
Page 11: Initial Turn-On
Language Selection When the following window appears, you have the option of changing the language used in menus and dialogs. Click Customize. The Regional and Language window shown below will appear. Elo TouchSystems 15A1 User Guide 11... - Page 12 Select the Language tab. The window shown below will appear. Select the desired language in the drop-down list labeled Language used in menus and dialogs. Elo TouchSystems 15A1 User Guide 12...
-
Page 13: Time Zone
Time-zone selection When the following window appears, you may change the time-zone, date, and/or time of the touchcomputer. After making any changes, click Next to finish. Windows Setup will complete the initialization of the touchcomputer. Elo TouchSystems 15A1 User Guide 13... -
Page 14: Test Devices
Test icon. The window shown below will open. Click on the Align button. This launches the calibration program. The window shown below will open. Follow the instructions to calibrate the touchscreen. *Calibration may not be applicable for all touch technologies. Elo TouchSystems 15A1 User Guide 14... -
Page 15: Testing The Magnetic Stripe Reader (Msr)
1. Double-click the HID MSR Test icon to start the test application. 2. Click the Read Cards button. 3. Slide the card through the MSR and verify that the data is displayed in the application window. Elo TouchSystems 15A1 User Guide 15... -
Page 16: Convert Keyboard Emulation/Hid Mode
2. Click on HID Mode to switch to HID mode OR click on Keyboard Mode to switch to Keyboard mode. The dimmed box will indicate the current setting. 3. Click Quit to close the window. Elo TouchSystems 15A1 User Guide 16... -
Page 17: Testing The Customer Display
1. Double-click the Cash Drawer Test icon to start the test application. 2. Click the Drawer 1 or Drawer 2 box to open the cash drawer. The status line indicates whether the drawer is open or closed. Elo TouchSystems 15A1 User Guide 17... -
Page 18: Chapter 2 Operation
I/O panel, securely mount the touchcomputer and adjust the display head. All adjustments made to the OSD and Power controls are automatically saved. User settings will remain unchanged after powering off/on or in the case of a power failure. Elo TouchSystems 15A1 User Guide 18... -
Page 19: Osd Control
OSD Horizontal Position Adjusts the OSD position left or right. OSD Orientation Adjusts the rotational orientation of the OSD OSD Language Adjusts the language selection of the OSD among English, French, Italian, German, or Spanish Elo TouchSystems 15A1 User Guide 19... -
Page 20: Shortcut Keys
Press the Menu button and UP simultaneously for 2 seconds. A window will appear displaying "OSD locked". Continue to hold the buttons down for another 2 seconds and when the window toggles to "OSD Unlocked", release both buttons to un- lock the OSD. Elo TouchSystems 15A1 User Guide 20... -
Page 21: Power Control
Press the Menu button and DOWN simultaneously for 2 seconds. A window will appear displaying “Power locked.” Continue to hold the buttons down for another 2 seconds. When the window toggles to “Power Unlocked” release both buttons to un- lock the Power button. Elo TouchSystems 15A1 User Guide 21... -
Page 22: Using The I/O Panel
Use the supplied DB9 adapter cable to change the interface to DB9. Microphone Input There is one 3.5mm microphone input jack for connecting an external microphone Audio Output There is one 3.5mm stereo audio output jack for connecting headphones or external powered speakers. Elo TouchSystems 15A1 User Guide 22... -
Page 23: Vga
PS/2 universal port. A PS/2 mouse should NOT be connected directly to the PS/2 universal port without the Y-cable. Kensington Lock The Kensington lock is a security device that prevents theft. To find out more about this security device, go to http://www.kensington.com. Elo TouchSystems 15A1 User Guide 23... -
Page 24: Securing The Touchcomputer Base
Securing the Touchcomputer Base Base Bottom View Note: Shown with optional peripherals Mounting Pattern Elo TouchSystems 15A1 User Guide 24... -
Page 25: Display Angle
For viewing clarity, you can tilt the LCD forward up 30 to 75 degrees. CAUTION In order to protect the LCD, be sure to hold the base when adjusting the LCD, and take care not to touch the screen. Elo TouchSystems 15A1 User Guide 25... -
Page 26: Chapter 3 Upgrades
C H A P T E R Upgrades Adding Peripherals The availability of peripheral options may vary. Please contact Elo TouchSystems for more information (see page 54 for contact information). Elo TouchSystems 15A1 User Guide 26... -
Page 27: Chapter 4 Maintenance
C H A P T E R Maintenance Elo TouchSystems 15A1 User Guide 27... -
Page 28: Care And Handling
Waste Electrical and Electronic Equipment (WEEE) Directive In the European Union, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recov- ery and recycling. Elo TouchSystems 15A1 User Guide 28... -
Page 29: Servicing The Hard Disk Drive
Slide the hard drive to the right until it stops. Then push the hard drive up into the SATA connector and make sure that it locks into place. 3. Secure the Hard Drive to the touchcomputer using 2 screws. Reinstall the screws to close the chassis. Elo TouchSystems 15A1 User Guide 29... -
Page 30: Recovering The Operating System
DVD drive (if available) and reboot the touchcomputer. Follow the on-screen instructions to complete recovery. NOTE: All data will be deleted during the recovery process. User must back up files when necessary. Elo TouchSystems does not accept liability for lost data or software. Elo TouchSystems 15A1 User Guide 30... -
Page 31: Chapter 5 Technical Specifications
C H A P T E R Technical Specifications Elo TouchSystems 15A1 User Guide 31... -
Page 32: Touchcomputer Specifications
Touchcomputer Specifications Note: Not all operating systems or options are supported in all regions. Please contact your local Elo TouchSystems representative for details. Processor Northbridge Southbridge Video Operating systems Ports BIOS Real Time clock Storage Power supply Power dissipation Temperature Humidity Intel Celeron M 1.0GHz CPU w/400MHz Front-Side Bus... - Page 33 75 mm VESA mount Other features Removable base Fanless User accessible hard drive Energy save mode (less than 2 watts) Touchscreen sealed to bezel and LCD Security lock receptacle Peripheral Options May vary and Upgrades Elo TouchSystems 15A1 User Guide 33...
-
Page 34: Com1/2 Pin Definition
RS422 Mode Pin Definition(for COM2 only) Pin # Signal Name Ground Signal ground +5 vdc +5 vdc return RS485 Mode Pin Definition(for COM2 only) Pin # Signal Name Ground DATA+ DATA- Signal ground +5 vdc +5 vdc return Elo TouchSystems 15A1 User Guide 34... -
Page 35: Power Input Pin Definition
DB9 connector Pin Definition Pin # Signal Name Receive Data (RD) Transmit Data (TD) Signal Ground Request to send Clear to Send (CTS) Power Input Pin Definition Pin # Signal Name +12V Ground Ground +12V Elo TouchSystems 15A1 User Guide 35... -
Page 36: Cash Drawer Port Signal Definition And Control
#define GP_LVL3 #define GPIO_2 0x08 #define GPIO_3 0x10 #define CASH_STS_MSK 0x20 #define DRAWER1 0x01 #define DRAWER2 0x02 void Sleep(clock_t t); int open_drawer(int drawer); ============================================================================= Function: Parameters: Return: Exit: Description: ============================================================================= 0x800 GPIO_BASE + 0x0F Elo TouchSystems 15A1 User Guide 36... - Page 37 Return: Exit: Description: ============================================================================= int is_open(void) int data = 0;/* Chipset register data */ /* Clear status register. */ _outp(GPE0_STS3,CASH_STS_MSK); Sleep(10); /* Read status register. */ _inp(GPE0_STS3); data &= CASH_STS_MSK; data >>= 5; return(data); Elo TouchSystems 15A1 User Guide 37...
- Page 38 Sleep(50); if( drawer == DRAWER1 ) data |= GPIO_2; if( drawer == DRAWER2 ) data |= GPIO_3; _outp(GP_LVL3,data); return(1); void Sleep(clock_t t) clock_t t2; t2 = t + clock(); while( t2 > clock() ); Elo TouchSystems 15A1 User Guide 38...
-
Page 39: Display Specifications
200 cd/m (Typical) 230 cd/m (Typical) 230 cd/m (Typical) Tr= 2 msec, Tf= 6 mesc typical 16.2 million color (L/R)= -70 /+10 (typical), (U/D) -60 DDC1 / 2B AccuTouch, IntelliTouch and CarrollTouch, Elo TouchSystems 15A1 User Guide 39 /+65 (typical) -
Page 40: Power Supply Specifications
The touchcomputer shall be powered by 12VDC from a universal type power supply brick with the following characteristics: Input voltage Input frequency Output voltage Output line and load regulation Output current 100 to 240 V~ 50/60 Hz 12 V +/- 5% 10 Amps minimum Elo TouchSystems 15A1 User Guide 40... -
Page 41: Touchscreen Specifications
Touchscreen Specifications Available with Accutouch five-wire resistive (AT), and IntelliTouch surface-wave technology. For detailed specifications, please visit our website at www.elotouch.com. Note: Touch options may vary depending on region. Elo TouchSystems 15A1 User Guide 41... -
Page 42: Peripheral Specifications
It consists of a VFD and VFD controller. USB Version Optional Parameters Characters per row Number of rows Character configuration Character Height Character width Character configuration Character color MTBF 5x7 dot matrix 9.5mm 6.2mm ASCII Blue green 300,000 hours Elo TouchSystems 15A1 User Guide 42... -
Page 43: Environmental Specifications
Operating (non-condensing) Non-Operating (38.7 Altitude Operating Non-Operating C maximum wet bulb temperature) Elo TouchSystems 15A1 User Guide 43 C to 35 C to 60 20% to 80% 5% to 95% 0 to + 12,000 feet [3,658m]. Equivalent to 14.7 to 10.1 psia. -
Page 44: Chapter 6 Technical Support
• Click on the "Start Button" and select "control panel" and Double click on the "System" icon . Using the Web www.elotouch.com/go/contactsupport Using the Phone Call toll-free 1-800-557-1458 C H A P T E R Technical Support Elo TouchSystems 15A1 User Guide 44... -
Page 45: Regulatory Information
C) Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment. Substitution of provided cords and cabling may compromise electrical safety or CE Mark Certification for emissions or immunity as required by the following standards: Elo TouchSystems 15A1 User Guide 45... - Page 46 RF emission levels and may also present a lethal shock hazard to the user.) vii) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. Elo TouchSystems 15A1 User Guide 46...
-
Page 47: Safety Label
III. Safety Label The following marks have been issued for the unit and appear on the safety label as shown in the illustration below: Elo TouchSystems 15A1 User Guide 47... -
Page 48: Warranty
Product to conform to the warranty set forth above, then Seller shall, at Seller’s option, either refund to Buyer or credit to Buyer’s account the purchase price of the Product less depreciation calculated on a straight-line basis over Seller’s stated Warranty Period. Elo TouchSystems 15A1 User Guide 48... - Page 49 Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. Elo TouchSystems 15A1 User Guide 49...
-
Page 50: Product Information
Tyco Electronics Raychem N.V. Sun Hamada Bldg. 2F (Elo TouchSystems Division) 1-19-20 ShinYokohama Diestsesteenweg 692 Kanagawa 222-0033 B-3010 Kessel-Lo Japan Belgium Tel +32(0)(16)35 21 00 Tel +81(45)478-2161 Fax +32(0)(16)35 21 01 Fax +81(45)478-2180 elosales@elotouch.com www.tps.co.jp Elo TouchSystems 15A1 User Guide 50...
