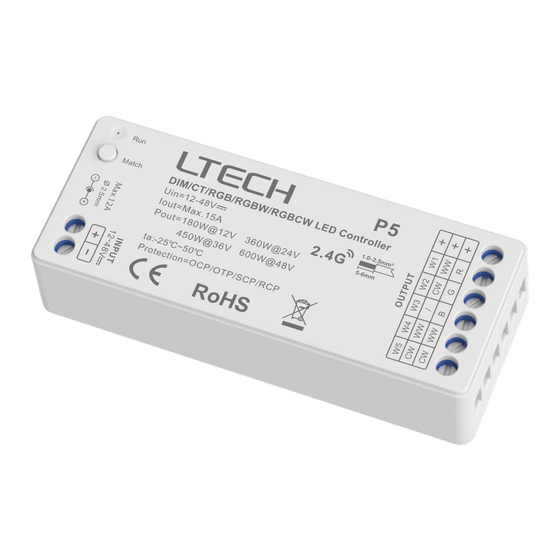

DIM/CT/RGB/RGBW/RGBCWLEDController
Small size and light weight. The housing is made from V0 flame retardant
PC materials from SAMSUNG/COVESTRO.
Soft-on and fade-in dimming function enhances your visual comfort.
2.4GHz wireless signal , eliminating the need for signal wiring.
5 channel constant voltage output.
Control DIM, CT, RGB, RGBW, RGBCW light.
Work with a MINI series RF 2.4GHz remote.
Built-in 9 dynamic modes.
One controller can be paired up with 10 remotes .
Sync dynamic effects between controllers in the same group/zone.
Technical Specs
Model
P1
Input Signal
RF2.4GHz
Input Voltage
12-48V
Output Voltage
12-48V
Load Current
Max. 11A
132W@12V 240W@24V
Load Power
288W@36V 384W@48V
Protection
Over Temperature Protection, Anti Reverse Connection Protection
Working Temp.
-25°C~50°C
Dimension
L91×W37×H21(mm)
Package Size
L94×W39×H22(mm)
Weight(G.W.)
46g
Note: P4 and P5 controllers do not support short circuit protection when the output voltage exceeds 24V
Product Size
Uu
:mm
it
37
21
P2
P3
Max. 12A
Max. 15A
144W@12V 240W@24V
180W@12V 360W@24V
288W@36V 384W@48V
432W@36V 432W@48V
91
1
P1, P2, P3, P4, P5
P4
P5
Max. 15A
Max. 15A
180W@12V 288W@24V
180W@12V 360W@24V
360W@36V 480W@48V
450W@@36V 600W@48V
.
