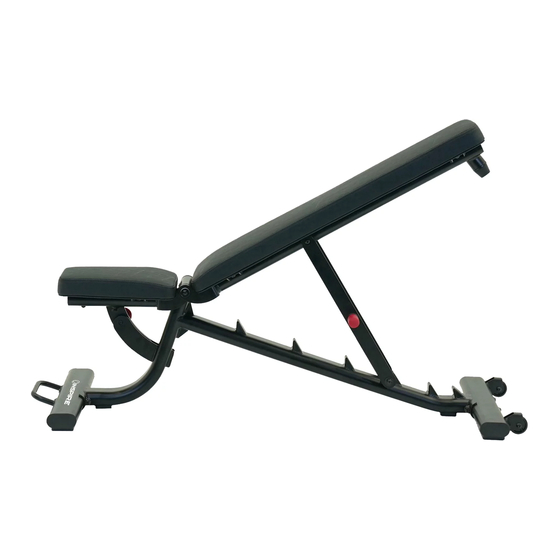

Flat-incline-decline weight bench

Advertisement

Available languages

Available languages

Quick Links

Model # FID3.1PK
ITM. / ART. 1680024
USER MANUAL
USER MANUAL
START HERE
FLAT-INCLINE-DECLINE
WEIGHT BENCH
Record Serial Number Here
Health in Motion LLC
V09202022-C2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FID3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inspire FID3

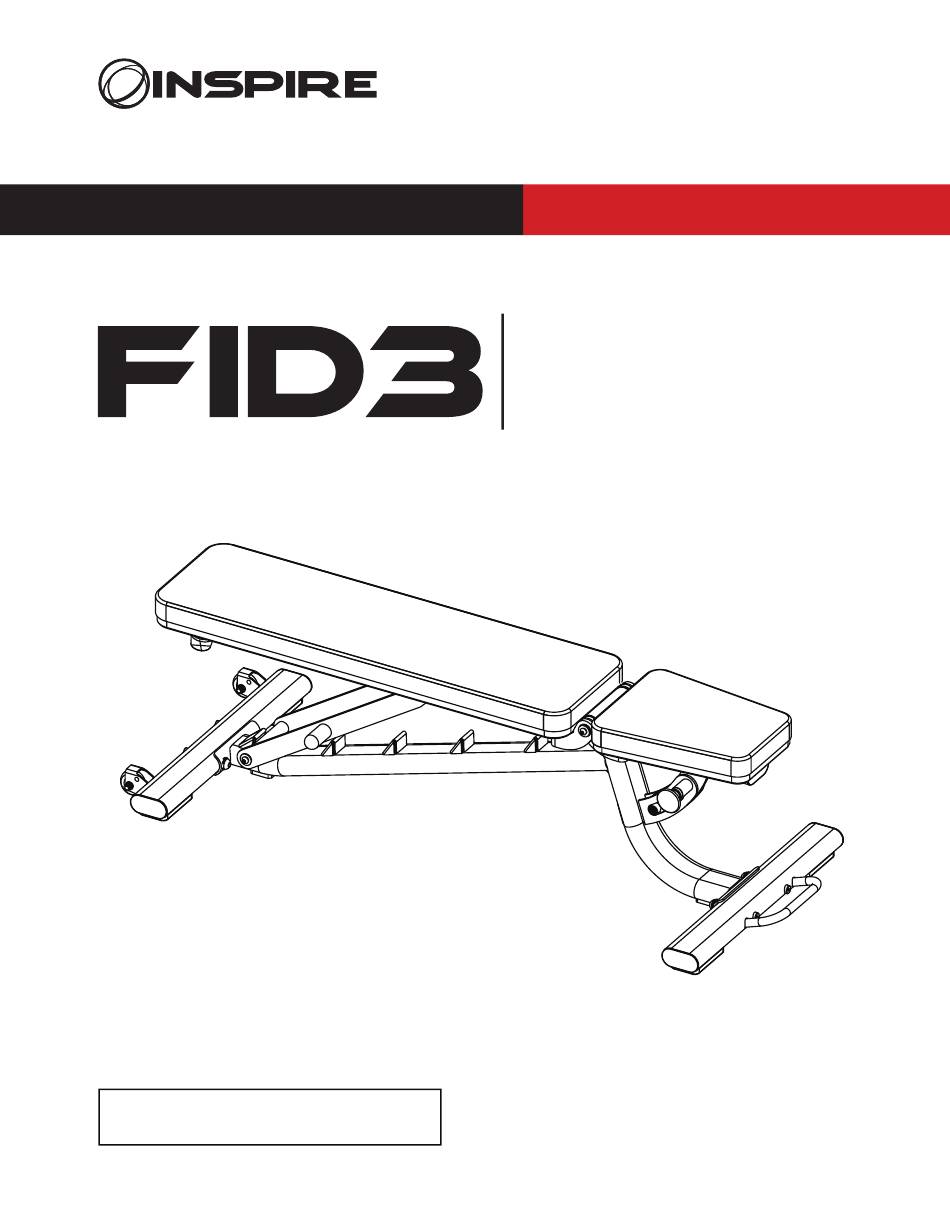

  • Page 1 Model # FID3.1PK ITM. / ART. 1680024 USER MANUAL USER MANUAL START HERE FLAT-INCLINE-DECLINE WEIGHT BENCH Record Serial Number Here Health in Motion LLC V09202022-C2...
  • Page 2: Important Safety Notice

    BEFORE YOU BEGIN Thank you for selecting the Inspire Fitness FID3. Service of your bench should only be performed by an authorized Inspire retailer. Service performed by anyone else can result in loss of warranty. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to providing you complete customer satisfaction.
  • Page 3: Product Warranty

    PRODUCT WARRANTY To view full warranty details, or to register your product for warranty, visit inspirefitness.com/support AUSTRALIA Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 4: Hardware Pack

    HARDWARE PACK FID3.1PK STEP 1 #23 M12x25mm Buttonhead Screw, 4PCS #32 M12 Flat Washer, 4PCS #34 M12 Spring Washer, 4PCS STEP 2 #22 M8x25 Buttonhead Screw, 6PCS #26 M8x65 Buttonhead Screw, 1PCS #30 M8 Flat Washer, 7PCS #33 M8 Spring Washer, 7PCS...
  • Page 5 STEP 1 Start by attaching the Front Frame Tube (8) to the Main Frame (1) using two M12 x 25 Buttonhead Screws (23), each with M12 Spring Washers (34) and M12 Flat Washers (32). Next, attach the Rear Frame Tube (7) to the Main Frame (1) using two M12 x 25 Buttonhead Screws (23), each with M12 Spring Washers (34) and M12 Flat Washers (32).
  • Page 6 STEP 2 Attach the Seat Pad (5) to the Seat Frame (6) using one M8 x 65 Buttonhead Screw (26) and two M8 x 25 Buttonhead Screws (22) each with M8 Spring Washers (33), and M8 Flat Washers (30). Next, attach the Back Pad (4) to the Back Frame (2) using four M8 x 25 Buttonhead Screws (22), each with M8 Spring Washers (33), and M8 Flat Washers (30).
  • Page 7: Exploded View

    EXPLODED VIEW V09202022-C2 Pg. 7...
  • Page 8: Parts List

    PARTS LIST Part Number Description Qty. 2010010307057001 Main Frame 2010010307057002 Back Frame 2010010307057003 Support Tube 2010010307057004 Back Pad 2010010307057005 Seat Pad 2010010307057006 Seat Frame 2010010307057007 Rear Frame Tube 2010010307057008 Front Frame Tube 2010010307057009 Long Shaft 2010010307057010 Short Shaft 2010010307057011 Step Shaft 3010010307058047 Spacer 4060060500078...
  • Page 9: Manuel D'utilisation

    Modèle n° FID3.1PK ITM. / ART. 1680024 MANUEL D’UTILISATION MANUEL D’UTILISATION COMMENCER ICI BANC DE MUSCULATION PLAT, INCLINABLE ET DÉCLINABLE Inscrire le numéro de série ici Health in Motion LLC V09202022-C2...
  • Page 10 AVANT DE COMMENCER Merci d’avoir choisi le banc FID3 de Inspire Fitness. L’entretien de ce banc doit être confié à un revendeur autorisé de Inspire. Toute réparation réalisée par une autre personne pourrait invalider la garantie. Par mesure de sécurité et pour optimiser l’utilisation, prière de lire attentivement le présent manuel avant d’utiliser l’appareil.
  • Page 11: Garantie Du Produit

    GARANTIE DU PRODUIT Pour afficher tous les détails de la garantie ou pour enregistrer votre produit pour la garantie, visitez inspirefitness.com/support AUSTRALIE Les produits de Health In Motion sont assortis de garanties qui ne peuvent être exclues, conformément à la loi sur la protection du consommateur de l’Australie.
  • Page 12 FID3.1PK ÉTAPE 1 STEP 1 (23) Vis à tête ronde M8 x 25 (4) #23 M12x25mm Buttonhead Screw, 4PCS (32) Rondelles plates M12 (4) #32 M12 Flat Washer, 4PCS (34) Rondelles élastiques M12 (4) #34 M12 Spring Washer, 4PCS STEP 2 ÉTAPE 2...
  • Page 13 ÉTAPE 1 Fixer d’abord le tube de cadre avant (8) au cadre principal (1) avec deux vis à tête ronde M12 x 25 (23), deux rondelles élastiques M12 (34) et deux rondelles plates M12 (32). Ensuite, fixer le tube de cadre arrière (7) au cadre principal (1) avec deux vis à tête ronde M8 x 25 (23), deux rondelles élastiques M12 (34) et deux rondelles plates M12 (32).
  • Page 14 ÉTAPE 2 Fixer le siège coussiné (5) au cadre de siège (6) avec une vis à tête ronde M8 x 65 (26) et deux vis à tête ronde M8 x 25 (22), deux rondelles élastiques M9 (33) et deux rondelles larges M8 (31).
  • Page 15: Vue Éclatée

    VUE ÉCLATÉE V09202022-C2 Pg. 7...
  • Page 16 PARTS LIST N° Numéro de pièce Description té 2010010307057001 Cadre principal 2010010307057002 Cadre de dossier 2010010307057003 Tube de soutien 2010010307057004 Dossier coussiné 2010010307057005 Siège coussiné 2010010307057006 Cadre de siège 2010010307057007 Tube de cadre arrière 2010010307057008 Tube de cadre avant 2010010307057009 Longue tige 2010010307057010 Courte tige...
  • Page 17 Modelo n.° FID3.1PK ITM. / ART. 1680024 MANUAL DE USUARIO COMENZAR PLANO-INCLINADO- DECLINADO BANCO DE MUSCULACIÓN Ingresar el número de serie aquí Health in Motion LLC V09202022-C2...
  • Page 18: Aviso Importante De Seguridad

    ANTES DE COMENZAR Gracias por elegir el FID3 de Inspire Fitness. El mantenimiento de su banco lo debe realizar, únicamente, un vendedor autorizado de Inspire. Si otra persona realiza el mantenimiento, podría perder la garantía. Por su seguridad y beneficio, lea el manual con atención antes de usar la máquina.
  • Page 19 LA GARANTÍA DEL PRODUCTO Para ver los detalles completos de la garantía o para registrar su producto para la garantía, visite inspirefitness.com/support AUSTRALIA Nuestros productos vienen con garantías que no pueden excluirse según la Ley del Consumidor Australiano. Usted tiene derecho a recibir un reemplazo o reembolso por una falla importante y para compensar cualquier otra pérdida o daño razonablemente predecible.
  • Page 20 FID3.1PK PASO 1 STEP 1 (23) Tornillos de cabeza redonda M12 x 25 (4) #23 M12x25mm Buttonhead Screw, 4PCS (32) Arandelas planas M12 (4) #32 M12 Flat Washer, 4PCS (34) Arandela de resorte M12 (4) #34 M12 Spring Washer, 4PCS...
  • Page 21 PASO 1 Acople el tubo delantero del marco (8) al marco principal (1) usando dos tornillos de cabeza redonda M12 x 25 (23), cada uno con arandelas de resorte M12 (34) y arandelas planas M12 (32). A continuación, acople el tubo trasero del marco (7) al marco principal (1) usando dos tornillos de cabeza redonda M12 x 25 (23), cada uno con arandelas de resorte M12 (34) y arandelas planas M12 (32).
  • Page 22 PASO 2 Acople la almohadilla del asiento (5) al marco del asiento (6) usando un tornillo de cabeza redonda M8 x 65 (26) y dos tornillos de cabeza redonda M8 x 25 (22), cada uno con arandelas de resorte M9 (33) y arandelas grandes M8 (31). A continuación, acople la almohadilla del respaldo (4) al marco trasero (2) usando cuatro tornillos de cabeza redonda M8 x 25 (22), cada uno con arandelas de resorte M9 (33) y arandelas planas M8 (30).
  • Page 23 VISTA DE DESPIECE V09202022-C2 Pg. 7...
  • Page 24 LISTA DE PIEZA N.° Número de pieza Descripción Cant. 2010010307057001 Marco principal 2010010307057002 Marco del respaldo 2010010307057003 Tubo de soporte 2010010307057004 Almohadilla del respaldo 2010010307057005 Almohadilla del asiento 2010010307057006 Marco del asiento 2010010307057007 Tubo del marco trasero 2010010307057008 Tubo del marco delantero 2010010307057009 Eje largo 2010010307057010...
  • Page 25 Distributed by: Costco Wholesale Korea, Ltd. Costco Wholesale Corporation 40, Iljik-ro P.O. Box 34535 Gwangmyeong-si Seattle, WA 98124-1535 Gyeonggi-do, 14347, Korea 1899-9900 1-800-774-2678 www.costco.co.kr www.costco.com Importado por: Costco Wholesale UK Ltd / Importadora Primex S.A. de C.V. Costco Online UK Ltd Blvd.
