6. Target Board

The C8051F00x/01x Development Kit includes a target board with a C8051F005 device pre-installed for evaluation
and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyp-
ing using the target board. Refer to Figure 2 for the locations of the various I/O connectors.
P1
Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1
Connects SW2 to port pin P1.7
J2
64-pin I/O connector providing access to all I/O signals
J3
Connects LED D3 to port pin P1.6
J4
JTAG connector for Debug Adapter interface
J6
Analog I/O configuration connector
X1
Analog I/O terminal block
Pin 1
Pin 2
Pin 1
Pin 2
X1
Prototyping Area I/O Connection Points

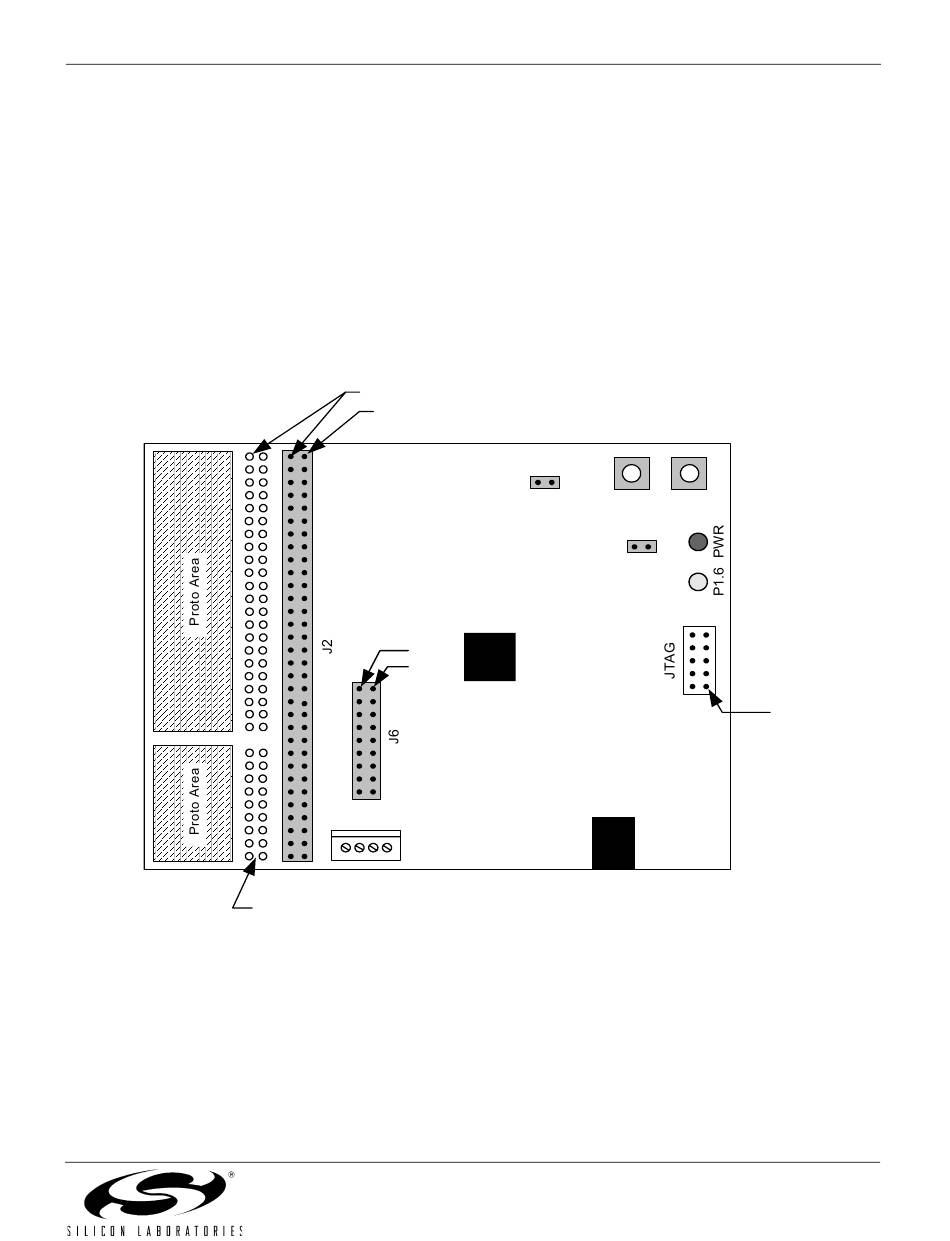

Figure 2. C8051F005 Target Board
C8051F00x/01x-DK
J1
P1.7
C8051F005
P1
Rev. 0.6
RESET
J3
Pin 1
5
