1. Kit Contents
The C8051F06x Development Kit contains the following items:
• C8051F060 Target Board
• C8051Fxxx Development Kit Quick-Start Guide
• Silicon Laboratories IDE and Product Information CD-ROM. CD content includes:
• Silicon Laboratories Integrated Development Environment (IDE)
• Keil 8051 Development Tools (macro assembler, linker, evaluation 'C' compiler)
• Source code examples and register definition files
• Documentation
• C8051F06x Development Kit User's Guide (this document)
• AC to DC Power Adapter
• USB Debug Adapter (USB to Debug Interface)
• USB Cable
2. Hardware Setup using a USB Debug Adapter

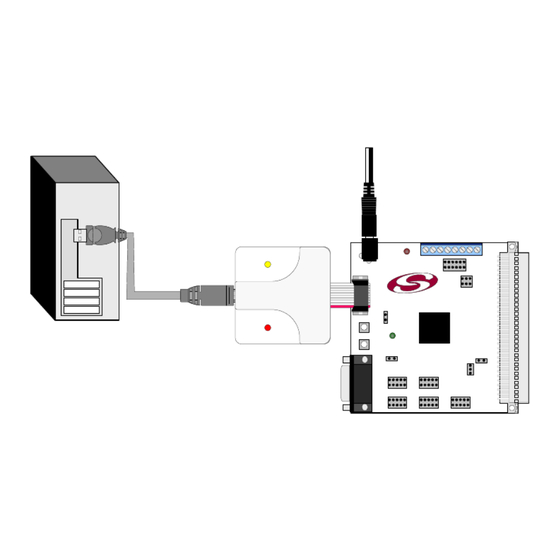

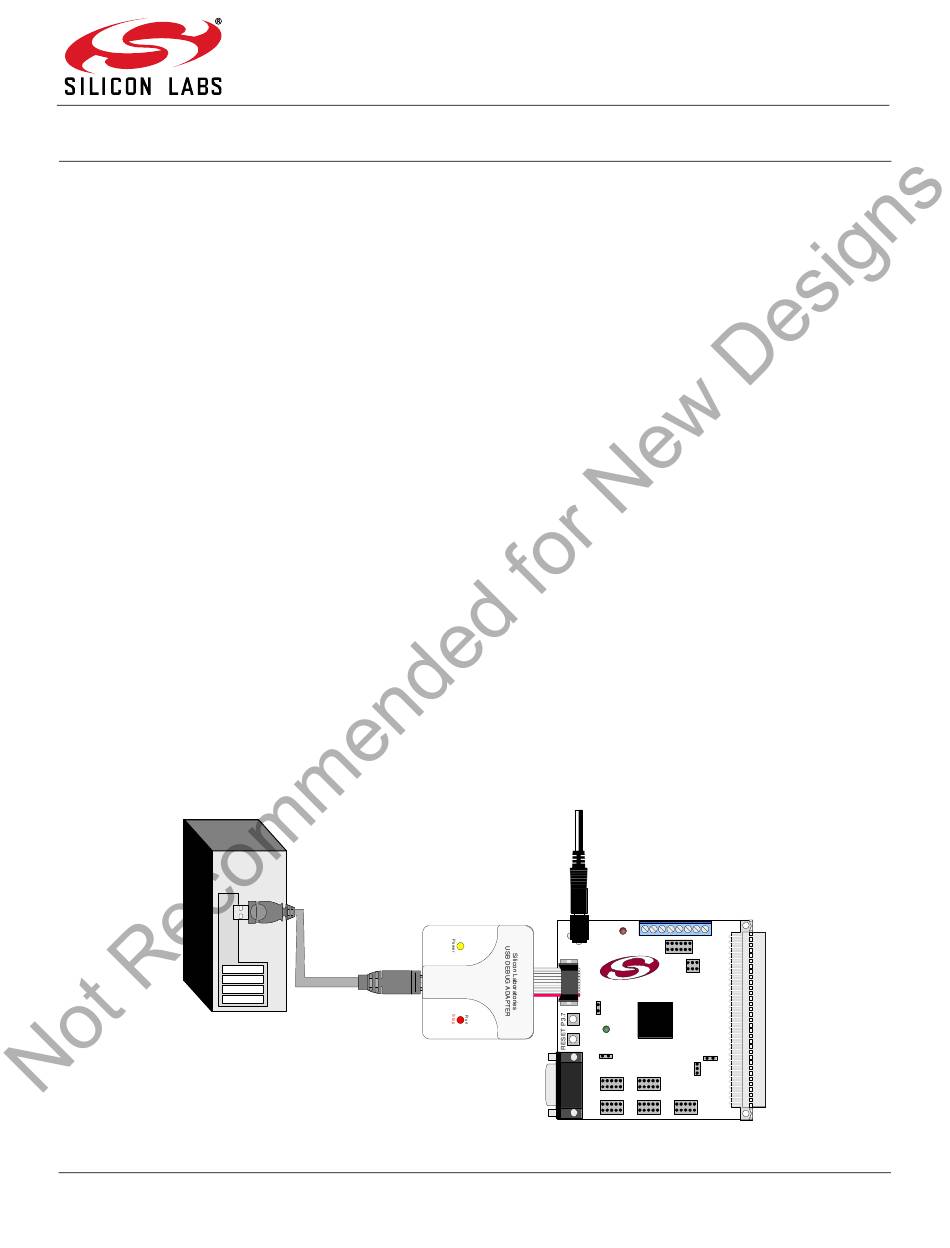

The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown
in Figure 1.
1. Connect the USB Debug Adapter to the JTAG connector on the target board with the 10-pin ribbon cable.
2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
3. Connect the other end of the USB cable to a USB Port on the PC.
4. Connect the ac/dc power adapter to power jack P1 on the target board.
Notes:
• Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.
• Remove power from the target board and the USB Debug Adapter before connecting or disconnecting the
ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power can
damage the device and/or the USB Debug Adapter.
PC
Rev. 0.7 9/06
EVELOPMENT
USB
Cable
Figure 1. Hardware Setup using a USB Debug Adapter
Copyright © 2006 by Silicon Laboratories
C 8 0 5 1 F 0 6 x - D K
K
U
'
G
IT
SER
S
AC/DC
Adapter
USB Debug Adapter
SILICON LABORATORIES
P1.6
Port 2
Port 1
U I D E
Target Board
PWR
MCU
Port 0
Port 3
Port 4
C8051F06x-DK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Silicon Laboratories C8051F06 Series
Summary of Contents for Silicon Laboratories C8051F06 Series
- Page 1 • USB Cable 2. Hardware Setup using a USB Debug Adapter The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown in Figure 1. 1. Connect the USB Debug Adapter to the JTAG connector on the target board with the 10-pin ribbon cable.
-
Page 2: Software Setup
ROM for additional information on using the Keil 8051 tools with the Silicon Laboratories IDE. To build an absolute object file using the Silicon Laboratories IDE project manager, you must first create a project. A project consists of a set of files, IDE configuration, debug views, and a target build configuration (list of files and tool configurations used as input to the assembler, compiler, and linker when building an output object file). - Page 3 C8051F06x-DK 4.4.1. Creating a New Project 1. Select Project New Project to open a new project and reset all configuration settings to default. 2. Select File New File to open an editor window. Create your source file(s) and save the file(s) with a rec- ognized extension, such as .c, .h, or .asm, to enable color syntax highlighting.
-
Page 4: Example Source Code
C8051F06x-DK 5. Example Source Code Example source code and register definition files are provided in the “SiLabs\MCU\Examples\C8051F06x” directory during IDE installation. These files may be used as a template for code development. Example applications include a blinking LED example which configures the green LED on the target board to blink at a fixed rate. 5.1. -
Page 5: Target Board
C8051F06x-DK 6. Target Board The C8051F06x Development Kit includes a target board with a C8051F060 device pre-installed for evaluation and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping using the target board. Refer to Figure 2 for the locations of the various I/O connectors. Power connector (accepts input from 7 to 15 VDC unregulated power adapter) Connects SW2 to P3.7 pin Connects LED D3 to P1.6 pin... - Page 6 C8051F06x-DK 6.1. System Clock Sources The C8051F060 device installed on the target board features a calibrated programmable internal oscillator which is enabled as the system clock source on reset. After reset, the internal oscillator operates at a frequency of 3.0625MHz (±2%) by default but may be configured by software to operate at other frequencies. Therefore, in many applications an external oscillator is not required.
- Page 7 C8051F06x-DK 6.4. Serial Interface (J5) A RS232 transceiver circuit and DB-9 (J5) connector are provided on the target board to facilitate serial connec- tions to UART0 of the C8051F060. The TX, RX, RTS and CTS signals of UART0 may be connected to the DB-9 connector and transceiver by installing shorting blocks on headers J6, J8, J9 and J10.
- Page 8 C8051F06x-DK 6.7. Analog Inputs (AIN_0, AIN_1) Two mini BNC connectors are provided on the C8051F060 target board, AIN_0 and AIN_1. These analog inputs can be used to input an analog signal to the 16-bit ADCs located on the device, ADC0 and ADC1. Additionally, op- amp circuitry is provided to filter the analog signals.
- Page 9 C8051F06x-DK 6.11. Expansion I/O Connector (J24) The 96-pin expansion I/O connector J24 is used to connect daughter boards to the main target board. J24 provides access to many C8051F060 signal pins. Pins for analog and digital grounds and voltage supplies are also avail- able.
- Page 10 C8051F06x-DK 7. Schematic Rev. 0.7...
- Page 11 C8051F06x-DK Rev. 0.7...
- Page 12 C8051F06x-DK Rev. 0.7...
- Page 13 C8051F06x-DK OCUMENT HANGE Revision 0.5 to Revision 0.6 Section 1, added USB Debug Adapter and USB Cable. Section 2, changed name from "Hardware Setup" to "Hardware Setup using an EC2 Serial Adapter". Section 2, added 2 Notes bullets. ...
- Page 14 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
