6. Target Board

The C8051F06x Development Kit includes a target board with a C8051F060 device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the target board. Refer to Figure 2 for the locations of the various I/O connectors.
P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1 Connects SW2 to P3.7 pin
J3 Connects LED D3 to P1.6 pin
J4 JTAG connector for Debug Adapter interface
J5 DB-9 connector for UART0 RS232 interface
J6 Connector for UART0 TX (P0.0)
J8 Connector for UART0 RTS (P5.0)
J9 Connector for UART0 RX (P0.1)
J10 Connector for UART0 CTS (P5.1)
J11, J14 External Memory Interface connectors
J12, J15 Port 0 - 1 connectors
J16, J18 Port 2- 3 connectors
J20 Enable the -5 V supply for analog inputs
J17, J28 Set analog input VREF options
J26, J27 Set analog input external conversion start options
J22 VREF connector
J23 VDD Monitor Disable
J24 96-pin Expansion I/O connector
J25 DB-9 connector for CAN interface
AIN_0,1 Mini BNC conncectors for analog inputs
P1.6 J3
P3.7
J1
J12
Port 1
Pin 1
J18
Port 2
Pin 1
J16
C8051
F06X
Port 3
Pin 1
J15
Port 0
Pin 1 Pin 1
J22
J4
JTAG
Pin 1

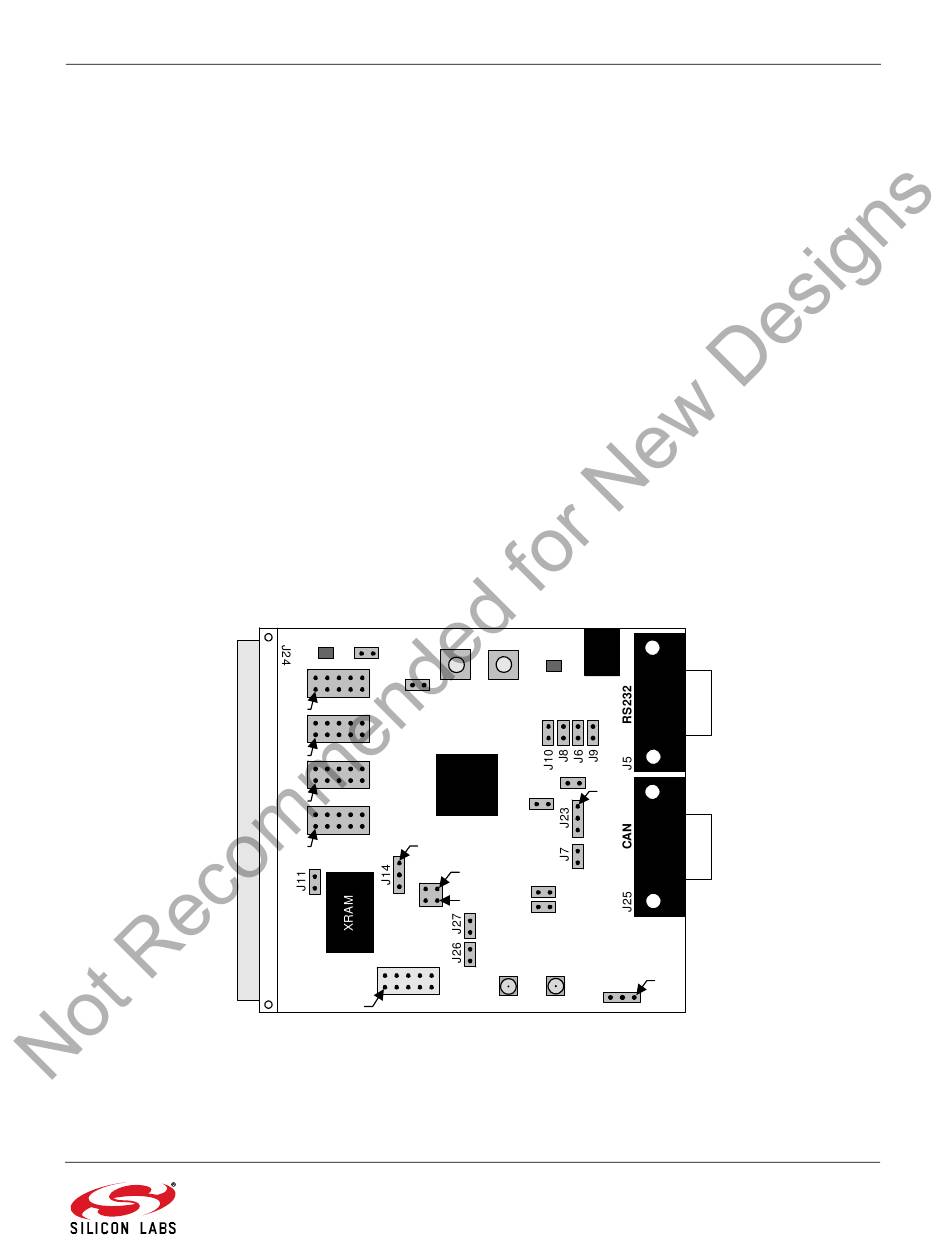

C8051F060 Target Board
Figure 2.
Rev. 0.7
RESET
PWR
P1
J2
Pin 1
J21
Pin 2
J28
Pin 1
J17
J20
AIN_1 AIN_0
C8051F06x-DK
Pin 1
5
