Summary of Contents for Eizo RadiForce LX300W

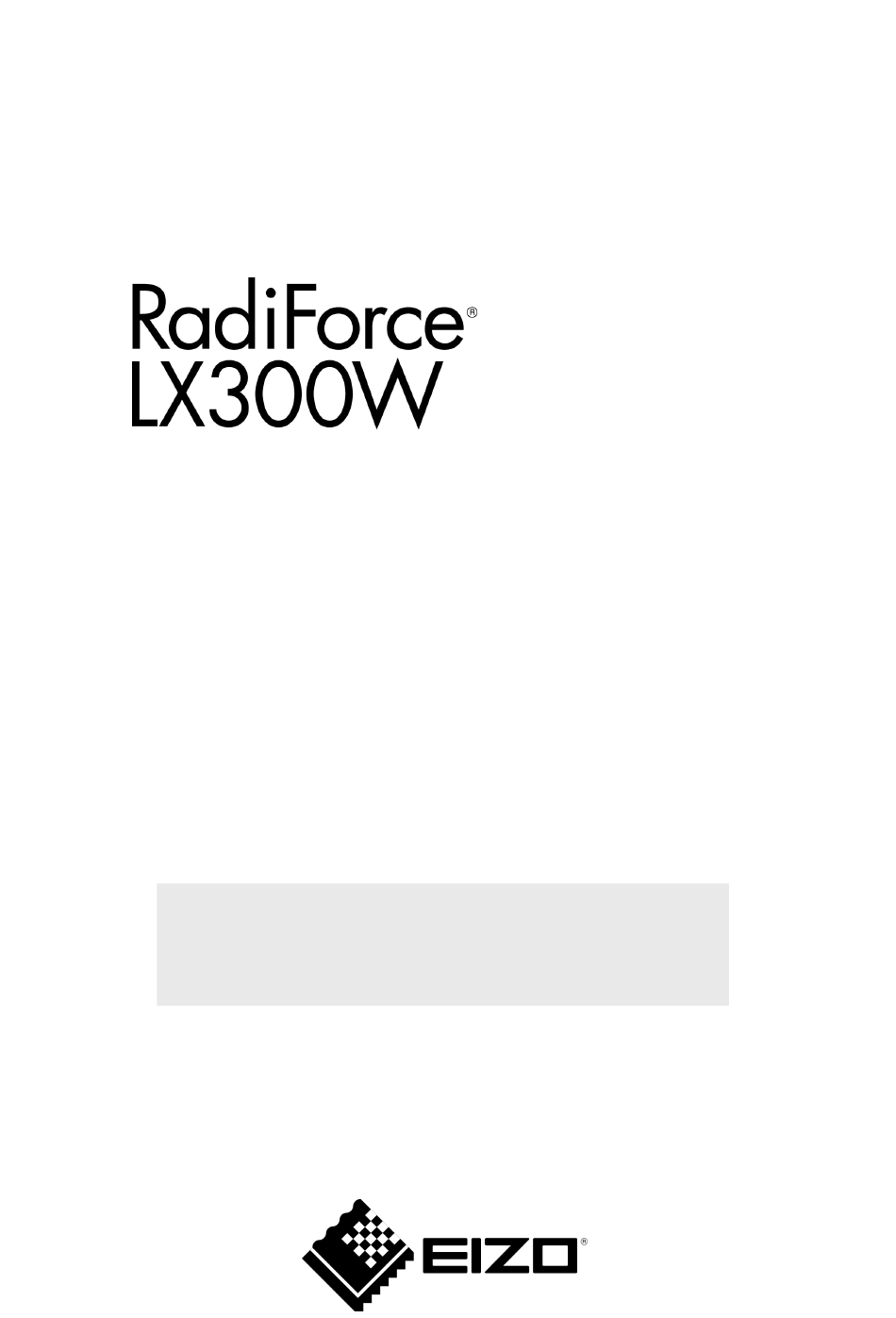

- Page 1 Instruction for Use 4MP 29.8" LCD Monitor Important Please read the Safety Information and the information delivered with the product carefully to familiarize yourself with safe and effective usage.
-
Page 2: Legal Information
Note the following: WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech‐ nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 3: Table Of Contents
7.3.2 "Picture Layout" main menu............... 32 7.3.3 "Power Manager" main menu ..............35 7.3.4 "Other Options" main menu ............... 35 7.3.5 "Information" main menu................36 7.3.6 "Signal" main menu..................37 Messages during operation..................37 RadiForce LX300W Instruction for Use, 03/2014... - Page 4 13.1 Guidance and manufacturer's declaration – electromagnetic emissions ....51 13.2 Markings and Symbols.................... 52 13.3 Environmental protection ..................53 13.4 Accessory devices ....................53 13.5 Contact........................53 13.6 Trademarks ......................53 13.7 China RoHS (Restriction of Hazardous Substances)..........54 Index ..........................56 RadiForce LX300W Instruction for Use, 03/2014...
-
Page 5: Introduction
Introduction Contents of this document This document explains the functionality and the approved use of the RadiForce LX300W. To ensure clarity, it does not contain all detailed information on this product. The contents of this document are neither part of a previous or existing agreement, commit‐... -
Page 6: Safety Notes
General safety notes Correct transport, professional storage, installation and connection, as well as careful opera‐ tion and maintenance, are required to ensure that the EIZO devices operate safely and cor‐ rectly. The devices may only be used for applications for which they are commonly used. - Page 7 Touching the components may be fatal. No contact between device and patients The device is not suitable for direct contact with patients. Device and patient must never be touched simultaneously. Otherwise there is a danger to life and limb. RadiForce LX300W Instruction for Use, 03/2014...
- Page 8 Only use power cables approved for China. These power cables are identified by the labels "CCC" or "CQC". Observe the country-specific regulations Observe all regulations of the country in which the device is used. RadiForce LX300W Instruction for Use, 03/2014...
- Page 9 If the device is brought into a room with a higher or rising temperature, condensed water will form in and on the device. Do not switch on the device until the condensed water has evaporated. Otherwise the device could be damaged. RadiForce LX300W Instruction for Use, 03/2014...
- Page 10 Note that monitors can fail as a result of aging, and that image properties such as brightness, con‐ trast, and color value can change. Do not touch the monitor screen Due to mechanical pressure or electrostatic discharging, touching the screen can result in brief dis‐ turbances to the image. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 11: Product-Specific Safety Instructions
Ensure that the monitor is stable after the stand is installed. An unstable stand could cause the monitor to tip over, resulting in injuries or damage. To ensure stand stability: • Use only the height-adjustable stand recommended by EIZO. Monitor stability has been tested with this stand. -
Page 12: Description
RadiForce® LX300W-S has a stand. Otherwise, the versions are identi‐ cal. Product Order No. Description RadiForce® LX300W 6GF6200-5LA01 Without stand, without protec‐ tive glass RadiForce LX300W-P 6GF6200-5LA02 Without stand, with protective glass RadiForce LX300W-S 6GF6200-5LA03 With stand, without protective glass Components The following components are included in the scope of delivery: •... -
Page 13: Monitor Performance Features
3.2 Monitor performance features Monitor performance features The RadiForce LX300W has the following features that permit a wide range of applications: LED backlight The LX300W is equipped with a white LED backlight. This means that a long service life can be achieved even with high luminance. -
Page 14: Monitor Operating Modes
The operation in progress can thus continue uninterrupted. Monitor operating modes The following presents the screen layouts that can be selected in the OSD menu, with spec‐ ification of the maximum resolution and possible connections. Screen layout for one video source RadiForce LX300W Instruction for Use, 03/2014... - Page 15 Description 3.3 Monitor operating modes Screen layout for two video sources (PaP) Screen layout for two video sources (PiP) Screen layout for three video sources RadiForce LX300W Instruction for Use, 03/2014...
- Page 16 Description 3.3 Monitor operating modes Screen layout with fail-safe function RadiForce LX300W Instruction for Use, 03/2014...
-
Page 17: Setup And Installation
Changes to device Do not make any mechanical or electric changes to the device. EIZO GmbH will not be held liable if changes are made to the device. Installation site The following conditions must be met at the location where the monitor is to be set up. -
Page 18: Installing The Monitor
Holders must be tested and approved by the manufacturer for the weight to be support‐ • An installed stand must be sufficiently stable such that tilting up to 10° does not result in the monitor toppling. RadiForce LX300W Instruction for Use, 03/2014... -
Page 19: Connecting
CAUTION Changes to device Do not make any mechanical or electric changes to the device. EIZO GmbH will not be held liable if changes are made to the device. CAUTION Shielding measures Follow all shielding measures according to the country-specific EMC Directive. If these guidelines are not observed, device malfunction may result. -
Page 20: Device Connections
5 V connections The monitor has two 5 V outputs which can be used to supply external devices. Display port The monitor has a display port 1.1 connector. Digital signals can be processed using this connector. RadiForce LX300W Instruction for Use, 03/2014... - Page 21 (toggle source, etc.) can be connected to the stereo jack con‐ nections. This is a future function. For this reason, the two connections are not active at this time. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 22: Power Connector
Molded power supply plugs must comply with the requirements for "hospital grade attach‐ ments" CSA Std. C22.2 No. 21 and UL 498. Note Installations in China Power cables, power supply plugs and appliance plugs must be CCC-certified. RadiForce LX300W Instruction for Use, 03/2014... -
Page 23: Dvi Connection
• DVI 2 can only process single link signals. • Only use the dual link DVI cables specified by EIZO or the transmission links supplied by EIZO. The picture quality, interference resistance, and electromagnetic interference of the en‐ tire system depend on the length and quality of the cables. - Page 24 – First insert the latch of the upper side of the cover on the monitor. – Then press in the latches from the side. 7. If necessary, secure the device with a Kensington lock on the Kensington lock slot. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 25: Commissioning
Image sticking may occur with LCD monitors. Image sticking is an effect whereby a faint im‐ age of the previous screen contents can be seen after the display contents have changed. The following measures can reduce or prevent image sticking: RadiForce LX300W Instruction for Use, 03/2014... -
Page 26: Check For Pixel Defects
2. Once the driver has been installed successfully, the resolution can be configured using the driver- or operating system settings. Note Installation and parameterization of the graphics card Please refer to the graphics controller manufacturer’s manual for detailed information about installation and configuration of the graphics controller. RadiForce LX300W Instruction for Use, 03/2014... -
Page 27: Operation
⑦ Operation LED Control panel The LX300W has a touch-sensitive control panel. The keys are located on the front of the monitor, centered at the bottom. Key functions The keys have the following functions: RadiForce LX300W Instruction for Use, 03/2014... -
Page 28: Locking Or Unlocking The Osd Menu
2. The press the "Down" key ③ 27] three times. The LED display brightness changes when the keys are pressed as feedback. The OSD menu is now locked or unlocked, depending on its initial state. RadiForce LX300W Instruction for Use, 03/2014... -
Page 29: Description Of Osd Menu
The OSD menu is used to make settings for operation of the monitor with up to three video sources. The layout of the OSD menu is shown in the following figure. Fig. 1: OSD menu layout RadiForce LX300W Instruction for Use, 03/2014... -
Page 30: Display" Main Menu
Change the brightness of the backlight Default: 800 You change the backlight brightness here. If you adjust brightness, the gay scale values no longer correspond to the set DICOM curve. The calibrated values therefore cannot be guaranteed. RadiForce LX300W Instruction for Use, 03/2014... - Page 31 Off: No synchronization to the input sig‐ nal. As a result, tearing and image rolling can occur with video images. The picture is delayed up to one frame. • Status: Shows the active synchronization. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 32: Picture Layout" Main Menu
Single Source A single video source is displayed full screen By default, the video source connected to DVI 1 is displayed. Open the "Window Configuration" menu to change the video source or display size. RadiForce LX300W Instruction for Use, 03/2014... - Page 33 "Window Configuration" menu In the "Window Configuration" menu, the video source and display size are assigned to ev‐ ery window in the selected window arrangement. RadiForce LX300W Instruction for Use, 03/2014...
- Page 34 Default: 64 You set the position and size of the picture- V-Position in-picture display here. The zero position is Default: 64 the upper left corner of the window. H-Size Default: 96 V-Size Default: 80 RadiForce LX300W Instruction for Use, 03/2014...
-
Page 35: Power Manager" Main Menu
Default: 255 window or an image from the Fail-Safe func‐ tion. Corresponding entries are suppressed or the OSD menu position is corrected auto‐ matically. Use "Transparency" to change the transpar‐ ency of the OSD background. RadiForce LX300W Instruction for Use, 03/2014... -
Page 36: Information" Main Menu
If this function is selected, the following infor‐ mation about the monitor displayed: Working Hours ### • Serial number Temperature (°C) ## • Asset number Firmware ##### FPGA 1 ##### • Installed firmware, FPGA, and OSD ver‐ sions. OSD Version ##### RadiForce LX300W Instruction for Use, 03/2014... -
Page 37: Signal" Main Menu
Activate Fail Safe or PiP, Triple Fail Safe and the picture layouts Deactivate Fail Safe or set the "Dual Source (PiP)" or "Triple "Dual Source (PaP)" or "Single Source" cannot operate simulta‐ Source" picture layout. neously.. RadiForce LX300W Instruction for Use, 03/2014... -
Page 38: Cleaning And Maintenance
Morning Mist Surfanios Fraicheur Citron (Anios Labs) Guanidine derivatives Lysoformin Quaternary compounds Incidur spray, undiluted Standard household washing-up such as Fairy Ultra, Pril, Palmolive liquid Pyridine derivatives Activ spray, undiluted Water Tap water Distilled water RadiForce LX300W Instruction for Use, 03/2014... -
Page 39: Maintenance
• Correct the settings if necessary. Checking image quality All quality tests can be performed using the EIZO RadiCS program. Changing the settings The monitor's settings can be changed by using a photometer and the suitable software. Checking and calibrating settings The monitor's settings can be checked and calibrated if necessary by using a photometer and the suitable software. - Page 40 Cleaning and Maintenance 8.2 Maintenance • VeriLum image: Successful calibration can be verified if the small squares are displayed correctly in all gray shades. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 41: Troubleshooting
Lamp warm-up period: • Wait for the warm-up period to expire. Setting is active, and the monitor is in • The LED turns green when the lamp has the warm-up period. reached the stabilized luminance level. RadiForce LX300W Instruction for Use, 03/2014... - Page 42 Set lower brightness for standard operation. the brightness is reduced significantly. Internal error • Inform service personnel Dark "LED timeout" activated • Without error • Switch off the "LED timeout" setting Operation LED is defective • Inform service personnel RadiForce LX300W Instruction for Use, 03/2014...
-
Page 43: Technical Specifications
Line frequency 50 ... 60 Hz (± 5 %) Current consumption max. 1.5 A ... max. 0.7 A Maximum current consumption 150 W Energy saving mode < 20 W Standby mode Typically 1 W RadiForce LX300W Instruction for Use, 03/2014... -
Page 44: Inputs/Outputs
IP20 according to EN 60529 Connector panel On rear panel, under cover Weight (without stand) RadiForce LX300W: 15.5 kg +/- 1 kg RadiForce LX300W-P: 18.5 kg +/- 1 kg RadiForce LX300W-S: 19.5 kg +/- 1 kg Dimensions (W x H x D) in mm 701.5 x 472.6 x 107.4... -
Page 45: Climatic Conditions
57 ... 500 Hz at 10 m/s², 8 cycles per axis Shock According to EN 60068-2-27 50 m/s² half-sine, 3 shocks per axis Packaged unit Vibrations According to EN 60068-2-64 Shock According to EN 60068-2-27 RadiForce LX300W Instruction for Use, 03/2014... -
Page 46: Electromagnetic Compatibility
Alternating fields 1000 Aeff/m (maximum) Voltage fluctuations EN 61000-4-11 Edition 2010-08 Line reaction to harmonics EN 61000-3-2 Edition 2009-04 GB17625.1 Line reaction to voltage fluctuations EN 61000-3-3 Edition 2008-06 Limits of radio disturbance characteristics GB9254 RadiForce LX300W Instruction for Use, 03/2014... -
Page 47: Dimensional Drawings
Dimensional drawings 11.1 View from the front and above Dimensional drawings All dimensions in mm 11.1 View from the front and above RadiForce LX300W Instruction for Use, 03/2014... -
Page 48: View From Behind, With Cover
Dimensional drawings 11.2 View from behind, with cover 11.2 View from behind, with cover RadiForce LX300W Instruction for Use, 03/2014... -
Page 49: View With Base
Dimensional drawings 11.3 View with base 11.3 View with base RadiForce LX300W Instruction for Use, 03/2014... -
Page 50: Spare Parts / Accessories
The cable can also be easily routed through small openings. Order no.: 6GF6010‑2DB36 DVI-D Dual Link signal cable EIZO recommended DVI-D Dual Link signal cable, 2 m in length. Order no.: 6GF6980-1TA10 RadiForce LX300W Instruction for Use, 03/2014... -
Page 51: Appendix
Harmonic emissions Class A public low-voltage power supply network that IEC 61000-3-2 supplies buildings used for domestic purposes. Voltage fluctuations / Complies flicker emissions IEC 61000-3-3 RadiForce LX300W Instruction for Use, 03/2014... -
Page 52: Markings And Symbols
Marking according to ACPEIP (China-RoHS). (nameplate) "On" symbol (voltage). (power switch) "Off" symbol (voltage). (power switch) Input for service calls. (PS2 socket) Symbol for "Observe operating instructions". (device) Symbol for "Authorized service personnel only". (device) RadiForce LX300W Instruction for Use, 03/2014... -
Page 53: Environmental Protection
13.6 Trademarks EIZO Logo is a registered trademark of EIZO Corporation in Japan and other countries. EIZO is a registered trademark of EIZO Corporation in Japan and other countries. RadiForce is a registered trademark of EIZO Corporation in Japan and other countries. -
Page 54: China Rohs (Restriction Of Hazardous Substances)
EFUP shall be done in accordance with the Product Maintenance Procedures. This product must not be disposed of as unsorted municipal waste, and must be collect‐ ed separately and handled properly after decommissioning. RadiForce LX300W Instruction for Use, 03/2014... - Page 55 Applications of hazardous substances in this medical device are required to achieve its intended clinical uses, and/or to provide better protection to human beings and/or to environment, due to lack of reasonably (economically or technically) available substitutes. 产品中有毒有害物质或元素的名称及含量 Table of hazardous substances’ name and con‐ centration. RadiForce LX300W Instruction for Use, 03/2014...
-
Page 56: Index
Rotation Fully Automated Stability Screen brightness Serial interface Service General safety notes Service connection Grounding screw Service personnel Shielding measures System messages Image quality Integrated stability system Troubleshooting Messages Landscape format USB connections User RadiForce LX300W Instruction for Use, 03/2014... - Page 57 Index Ventilation Video source Window arrangement Zoom Window Configuration Zero error rate RadiForce LX300W Instruction for Use, 03/2014...
- Page 58 Siemensallee 84 76187 Karlsruhe Germany Instruction for Use, 03/2014 RadiForce LX300W 1046904-001 Copyright © 2014 EIZO GmbH. All rights reserved.
