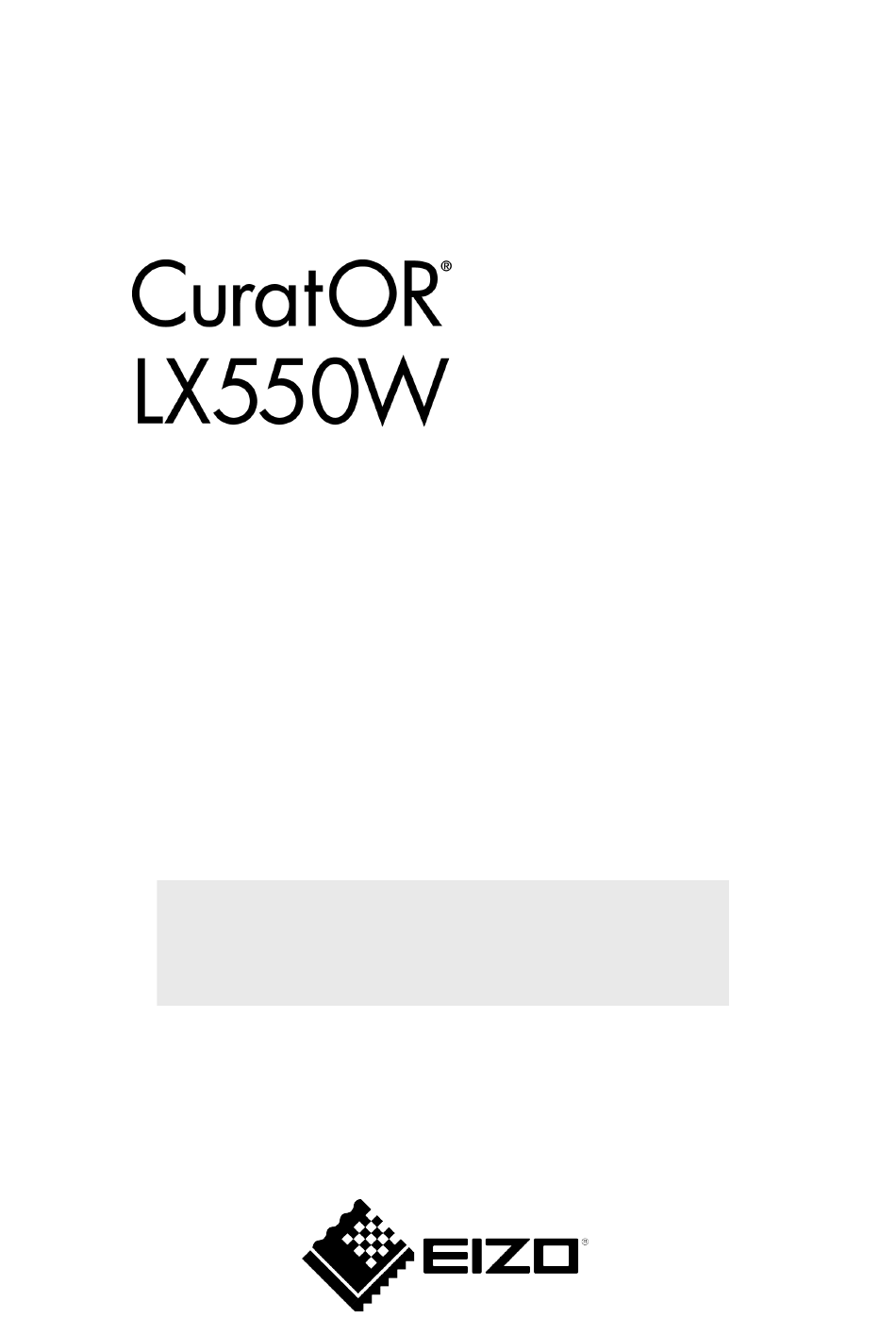

- Page 1 Instructions for Use 8MP 55" LCD Monitor Important Please read the safety information and all information delivered with the product carefully to familiarize yourself with safe and effective usage.
-
Page 2: Legal Information
Use of EIZO products WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech- nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 3: Table Of Contents
Locking or unlocking the OSD menu .............. 28 Operator controls .................... 29 Description of OSD menu .................. 30 7.3.1 Display menu .................... 30 7.3.2 Power Manager menu................ 33 7.3.3 Other Options menu.................. 33 7.3.4 Information menu .................. 34 7.3.5 Signal menu .................... 35 CuratOR LX550W Instructions for Use, 04/2021... - Page 4 12.3 FCC Declaration of Conformity................ 53 12.4 China RoHS (Restriction of Hazardous Substances) .......... 54 12.5 Declaration of compliance with India RoHS............ 55 12.6 Environmental protection .................. 56 12.7 Additional devices.................... 56 12.8 Repairs ........................ 56 12.9 Contact ........................ 56 12.10 Trademarks...................... 56 Index .......................... 57 CuratOR LX550W Instructions for Use, 04/2021...
-
Page 5: Introduction
1.2 Intended use Intended purpose The CuratOR LX550W is intended for the display of still images and moving images from various commercially available devices commonly used in a medical environment, in partic- ular radiology. The monitor is optimized for the reproduction of grayscale X-ray images. The monitor is not suitable for mammography. -
Page 6: User
Cleaning staff "Cleaning staff" refers to personnel responsible for cleaning medical devices. CuratOR LX550W Instructions for Use, 04/2021... -
Page 7: Safety Information
2 Safety information 2.1 General safety instructions Correct and safe operation of EIZO devices assume professional transport, storage, installa- tion, and connection, as well as careful operation and service. The devices may only be used for applications for which they are intended. - Page 8 Only use power cables approved for China. These power cables are identified by the labels "CCC" or "CQC". Observe the country-specific regulations Observe all regulations of the country in which the device is used. CuratOR LX550W Instructions for Use, 04/2021...
- Page 9 If the device is brought into a room with a higher or rising temperature, condensed water will form in and on the device. Do not switch on the device until the condensed water has evaporated. Other- wise, the device could be damaged. CuratOR LX550W Instructions for Use, 04/2021...
- Page 10 Note that monitors can fail as a result of aging, and that image properties such as brightness, con- trast,and color value can change. Do not touch the monitor screen Due to mechanical pressure or electrostatic discharges, touching the screen can result in brief distur- bances to the image. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 11: Product-Specific Safety Instructions
Note Image quality To maintain constant image quality, EIZO recommends cleaning the monitor on a regular basis and checking image properties in accordance with all applicable local regulations. CuratOR LX550W Instructions for Use, 04/2021... -
Page 12: Description
Note Keep the packaging material for subsequent transport of the device. Device The CuratOR LX550W is a 8MP 55" LCD Monitor for mounting in a ceiling suspension unit or wall mount. Product Order number... - Page 13 They are then given priority and displayed on the monitor. This ensures that the treating physician only sees one picture on the monitor at all times. The operation in progress can continue uninterrupted. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 14: Setup And Installation
In the worst case, deposits are possible which become evident as dark spots in a white picture and result in deterioration of the luminance. • Protect the monitor from dust, for example through appropriate construction measures at the installation site. CuratOR LX550W Instructions for Use, 04/2021... - Page 15 If the monitor is installed such that it can move, make sure that persons or objects in the facility are not endangered by the monitor's range of movement. Note During transport, use the original packaging or service packaging. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 16: Unpacking The Monitor
1. Carefully open the packaging and remove the upper section of the carton as well as all accessible packing parts. 2. Lift the monitor from the base of the packing carton. Hold it on the side and underside. CuratOR LX550W Instructions for Use, 04/2021... -
Page 17: Mounting The Monitor
• Mounts must be tested and approved by the manufacturer for the weight to be sup- ported. • An installed stand must be sufficiently stable to withstand tilting of up to 10° without top- pling the monitor. CuratOR LX550W Instructions for Use, 04/2021... -
Page 18: Connecting
Device settings may only be adjusted by service personnel. NOTICE Disconnecting from line power Always set the power switch to "Off" before disconnecting the device from power. Other- wise the device could be destroyed. CuratOR LX550W Instructions for Use, 04/2021... -
Page 19: Device Connections
RJ45 connector (for service only) ④ DVI - dual link connection DVI 1 ⑩ 1 USB Type B (upstream) ⑤ DisplayPort connector DP1 ⑪ 2 USB Type A (downstream) ⑥ DisplayPort connector DP2 ⑫ Power connector CuratOR LX550W Instructions for Use, 04/2021... -
Page 20: Power Connector
Center fan cover Serial interface USB Type A (Downstream) • USB: USB ports type A or B are used by Service for software updates. • Serial interface: Service uses the serial interface to connect a photometer. CuratOR LX550W Instructions for Use, 04/2021... -
Page 21: Monitor Main Inputs
DVI2 or DP1 and DP2 connectors are provided for this. NOTICE Video source settings The monitor sends the correct settings to the video source via the DDC interface. If you change the settings, the images will not be displayed correctly. CuratOR LX550W Instructions for Use, 04/2021... -
Page 22: Pip Connector (Hdmi Connector)
• The connecting cables must not be kinked. The minimum bending radius of the cable generally equals ten times the cable diameter. • Use only the cables specified by EIZO or the transmission links available from EIZO. The picture quality, interference immunity, and emitted interference of the entire system depend on the quality and cable length. -
Page 23: Description Of The Connection Procedure
5.3.1 Connect the DVI receiver modules If you want to use the TDL transmission links from EIZO with the monitor, connect the corre- sponding DVI receiver modules as follows: 1. Loosen the connector panel Combi-Torx screws and remove the cover. - Page 24 7. Connect the appliance plug to the monitor power socket. 8. Secure appliance cable with cable ties to the lug to prevent unintentional loosening. 9. Secure the cover on the connection panel with the Combi-Torx screws. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 25: Commissioning
If the operation LED does not light green after the equipment has been switched on and a video signal has been applied: • check the system for basic connection and operating errors before contacting service personnel. CuratOR LX550W Instructions for Use, 04/2021... -
Page 26: Avoiding Image Sticking
– The graphics card must support a resolution of 3840 x 2160 pixels (8 MP) in stretched mode. – To operate the monitor at the desired resolution, a driver for the graphics card used must be installed. CuratOR LX550W Instructions for Use, 04/2021... -
Page 27: Check For Pixel Defects
6.4 Check for pixel defects Pixel defects (small bright or dark dots) can occur in LCD monitors. During the manufactur- ing process, all monitors are checked for the permitted number of defective pixels. Defective pixels cannot be corrected. CuratOR LX550W Instructions for Use, 04/2021... -
Page 28: Operation
To lock or unlock the OSD menu, proceed as follows: Enter Downward 1. Press the "Enter" key once. 2. Then press the "Down" key three times. The OSD menu is now locked or unlocked, depending on its initial state. CuratOR LX550W Instructions for Use, 04/2021... -
Page 29: Operator Controls
Opens the main menu. • Returns to the higher level menu or closes the top OSD menu. • Jumps to the element to the left. Mode • Opens the CAL Switch. • Selects LUT. CuratOR LX550W Instructions for Use, 04/2021... -
Page 30: Description Of Osd Menu
By using a different LUT for example, you can highlight specific grayscale levels. The LUT names displayed provide a brief de- scription of the model for which the LUT is valid. Note: Select a DICOM LUT to view radiographic images. CuratOR LX550W Instructions for Use, 04/2021... - Page 31 This function enables you to make any LUT set- tings in the "CAL Switch" function selectable (1) or non-selectable (0). The names of the selectable LUT settings are taken from the "CAL Switch" function. Note: An active LUT setting cannot be replaced. CuratOR LX550W Instructions for Use, 04/2021...
- Page 32 CAUTION: Only use the test patterns during maintenance. The PiP functions are deactivated when a test pattern is displayed. Note: After selecting a test pattern, select "None" in order to display the video signals of the connected system again. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 33: Power Manager Menu
Note: The brightness of the operation LED in- creases again automatically when an error occurs in the monitor. The color of the operation LED then indicates a possible cause of the error [} 39]. CuratOR LX550W Instructions for Use, 04/2021... -
Page 34: Information Menu
Serial number S/N Working Hours 151 • Asset number A/N Temperature (°C) 25 • Operating hours Firmware 4.161 • Temperature in the device FPGA 1.023 • Installed firmware, FPGA, and OSD version. OSD 3.002 CuratOR LX550W Instructions for Use, 04/2021... -
Page 35: Signal Menu
If the update software is valid, a start window is displayed. 3. Start the update. 4. If the message “Pull Stick to finish Updates” is displayed, remove the USB stick from the USB port. CuratOR LX550W Instructions for Use, 04/2021... -
Page 36: Cleaning And Check Settings
Terrain 0.5% by vol. Quartamon Med Disinfectants Perform 3% by weight Morning Mist (1:64) Terralin Protect 2% by vol. Melisepton rapid; direct Microbac Tissues Glucoprotamine Incidin Plus 8% by vol. Guanidine derivatives Lysoformin 2% by vol. CuratOR LX550W Instructions for Use, 04/2021... - Page 37 Light gasoline Cleaning solvent, petroleum Petroleum ether spirit close to boiling Note Cleaning other components Information on cleaning or disinfection of other system components can be obtained from the respective instructions for use. CuratOR LX550W Instructions for Use, 04/2021...
-
Page 38: Check The Settings
After calibration, the monitor must be visually inspected to verify successful and correct completion of the calibration procedure. Various test patterns are stored in the monitor and can be activated in the OSD; for example, Measure, Graybars, Cross, Pixel on off, Grayramp, TG18-OIQ. CuratOR LX550W Instructions for Use, 04/2021... -
Page 39: Troubleshooting
Device is off • Switch on power switch Power cable is not inserted or incor- • Check the power cable rectly inserted. Power cable is defective • Replace power cable Blown fuse • Inform service department CuratOR LX550W Instructions for Use, 04/2021... -
Page 40: Picture Displayed
Inform service department Green yel- No error: Update being performed. low red flashing Dark LED timeout activated • No error • Switch off the LED timeout setting Operation LED is defective • Inform service department CuratOR LX550W Instructions for Use, 04/2021... -
Page 41: Messages During Operation
Do not turn off the display dur- ing an update. Pull stick to finish Updates An attempt was made to close Remove the USB stick. Close OSD when the USB stick with OSD. update software was connected. CuratOR LX550W Instructions for Use, 04/2021... -
Page 42: Technical Specifications
Line voltage AC 100 ... 240 V (± 10%) Line frequency 50 ... 60 Hz (± 5%) Current consumption < 2.0 A @ 240 V / 5.0 A @ 100 V Maximum current consumption 400 W CuratOR LX550W Instructions for Use, 04/2021... -
Page 43: Inputs / Outputs In The Connection Panel
For transport and storage (packed) Temperature range -20 °C - +60 °C ambient temperature Temperature gradient Max. 6 °C/h, no condensation Humidity 10 - 95%, non condensing, at 25 °C Air pressure 500 - 1060 hPa or up to an altitude of 5600 m CuratOR LX550W Instructions for Use, 04/2021... -
Page 44: Safety Regulations
Safety regulations Safety standards • IEC/EN 60601-1 • CAN/CSA - C 22.2 No. 60601-1 • UL 60601-1 • ANSI/AAMI ES60601-1 Protection class Protection class I Degree of protection IP20 Medical device classification (EU) Class 1 CuratOR LX550W Instructions for Use, 04/2021... -
Page 45: Dimension Drawings
Dimension drawings 11.1 View from front, side, top, and below 11 Dimension drawings All dimensions in mm 11.1 View from front, side, top, and below CuratOR LX550W Instructions for Use, 04/2021... -
Page 46: Rear View
Dimension drawings 11.2 Rear view 11.2 Rear view CuratOR LX550W Instructions for Use, 04/2021... -
Page 47: Appendix
Marking according to ACPEIP (China-RoHS). Degree of protection according to DIN EN 60529. "On" symbol (voltage). "Off" symbol (voltage) Input for service calls. Symbol for "Comply with the instructions for use". Symbol for "Authorized service personnel only". CuratOR LX550W Instructions for Use, 04/2021... -
Page 48: Information On Electromagnetic Compatibility (Emc)
IEC/EN 60601-1-2. Electromagnetic radiation The CuratOR LX550W is intended for use in the electromagnetic environments noted below. Customers and users of the CuratOR LX550W have to ensure that the device is used in such an en- vironment. Radiation test Conformity... - Page 49 The CuratOR LX550W was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60610-1-2. Customers and users of the CuratOR LX550W have to ensure that the monitor is used in such an environment.
- Page 50 12.2 Information on electromagnetic compatibility (EMC) Electromagnetic interference immunity The CuratOR LX550W was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60601-1-2. Customers and users of the monitor have to ensure that the monitor is used in such an environment.
- Page 51 Recommended minimum distance between portable or mobile RF communications devices and the CuratOR LX550W The CuratOR LX550W is intended for use in an electromagnetic environment in which interference due to electromagnetic radiation is controlled. For other portable and mobile RF communication de- vices (transmitters), the recommended minimum distance between the portable and mobile RF com- munication devices (transmitters) and the monitor applies as listed below.
- Page 52 Recommended minimum distance between portable or mobile RF communications devices and the CuratOR LX550W The CuratOR LX550W is intended for use in an electromagnetic environment in which interference due to electromagnetic radiation is controlled. The customer or user of the monitor can help prevent electromagnetic interference by maintaining the recommended minimum distance between portable and mobile RF communications devices (transmitters) and the monitor.
-
Page 53: Fcc Declaration Of Conformity
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interfer- ence within the limits of a Class B digital device. •... -
Page 54: China Rohs (Restriction Of Hazardous Substances)
EFUP shall be done in accordance with the Product Maintenance Procedures. This product must not be disposed of as unsorted municipal waste, and must be col- lected separately and handled properly after decommissioning. CuratOR LX550W Instructions for Use, 04/2021... -
Page 55: Declaration Of Compliance With India Rohs
产品中有毒有害物质或元素的名称及含量 Table of hazardous substances’ name and concentration. 12.5 Declaration of compliance with India RoHS We, EIZO Corporation, hereby declare and guarantee that this product has been designed and manufactured in compliance with the E-Waste management rule 2016 which prohibit the inclusion of the following substances except for the exemptions listed in schedule II. -
Page 56: Environmental Protection
12.10 Trademarks The EIZO Logo is a registered trademark of EIZO Corporation in Japan and other countries. EIZO is a registered trademark of EIZO Corporation in Japan and other countries. RadiForce is a registered trademark of EIZO Corporation in Japan and other countries. -
Page 57: Index
DVI transmission links (TDL) 24 Technical specifications 42 Troubleshooting 39, 41 Energy saving 26 Update 35 Features 12 User 6 General safety instructions 7 Grounding 18 Grounding screw 20 Image Sticking 26 Installation site 14 Messages 41 CuratOR LX550W Instructions for Use, 04/2021... - Page 58 Carl-Benz-Straße 3 76761 Rülzheim Germany Instructions for Use, 04/2021 CuratOR LX550W 1084582-004 Copyright © 2021 EIZO GmbH. All rights reserved.
