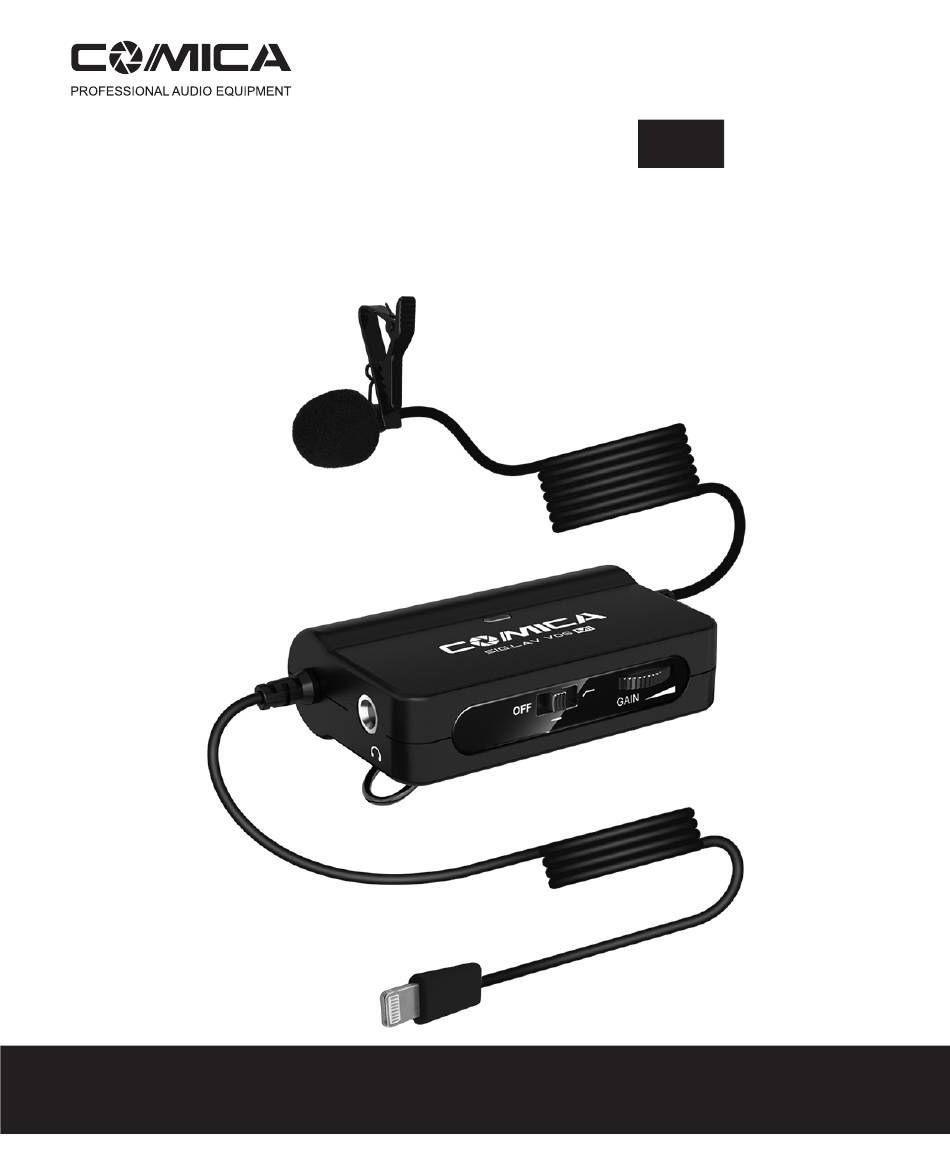

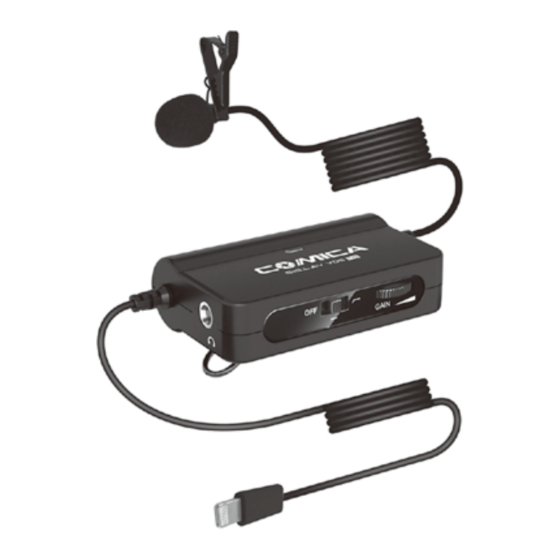

- Page 1 SIG.LAV V05 Multi-functional Single Lavalier Microphone (For Iphone with Lightning Interface, MFI Certified) User Manual...
- Page 3 Foreword Thanks for purchasing Comica SIG.LAV V05 MI multi-function single lavalier microphone . This product can be equipped with smartphone and camera for audio recording. It is designed with functions of supporting adjustable sensitivity, smartphone and camera switch, real-time monitoring, work indicator light, CR2032 3V battery power supply,...
-
Page 4: Main Functions
Main Functions . Design for Iphone with Lightning Interface . Super-shield and Low Noise Mic . Stepless Gain Control . LED Working Indicator . Real-time Monitor Stepless Gain Real-time Super-shield Working Indicator Design for Iphone Audio Monitor and Low Noise Mic Adjustment with Lightning Interface Package List... - Page 5 Components Microphone Lightning Interface audio output line Monitoring jack Work indicator light Gain control wheel Power / Record / Low Cut Off function switch Back clip Battery holder...
-
Page 6: Installation And Use
Installation and Use 1. Move to Record / Low Cut Off function switch , the indicator light turns green Move to Record / Low Cut Off function switch the indicator light turns green... - Page 7 2. Insert the Lightning Interface output connector into the Lightning Interface input interface of the smartphone and used with the recording system of smartphone for recording a.While the product is used for IOS system phones, it supports both Iphone original audio recording mode and video recording mode.
-
Page 8: Function Description
Function Description 1. Gain Control Wheel During the usage, the gain control wheel can adjust the output sensitivity of microphone Gain Control Wheel 2. 3.5mm monitoring jack You can monitor the recording situation through the 3.5mm monitoring jack 3. On and off function switch When the power of the battery is low, the indicator light turns red, and the battery should be replaced. -
Page 9: Specification
Specification Polar Pattern +5.0 -2.0 -2.0 -4.0 -6.0 -8.0 -10.0 -10. 0 -12.0 -14.0 -16.0 -18.0 -20.0 -20. 0 -22.0 -24.0 -25.0 dB rel. 1V/Pa Frequency: 500 Hz : 1000 Hz : 4000 Hz : Frequency Response 20Hz 1000 10 000 20 000... -
Page 10: Product Features
Product Features Polar Pattern Omni-directional Sensitivity -35dB ±2dB Gain Range Maximum increase +10dB Frequency Response 60Hz - 18kHz >65dB Max SPL 100dB Battery CR2032 3V 0 ℃ ~ +50 ℃ Working Temperature -20 ℃ ~ +60 ℃ Storage Temperature... - Page 11 SIG.LAV V05 多功能单领夹式麦克风 （Iphone Lightning 接口专用,MFI 认证） 用户使用手册...
- Page 12 前 言 感谢您购买科唛SIG.LAV V05 MI多功能单领夹式麦克风（ Iphone Lightning 接口专用,MFI 认证 ）。 此产品可搭配手机、相机进行音频录制。它设计有支持增益调 节、手机/相机切换开关、实时监听、工作指示灯、CR2032 3V电池 供电、灵活的背夹等功能，能带给您更好的体验及音质效果。无 所顾虑！ 使用前请认真阅读此使用说明书，本产品在出厂时已进行精密校 准，请勿自行组装拆卸零部件，否则不予保修！ 注意事项 该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及视频录 模式下均可正常工作 当用于手机时，请将手机设置为飞行模式，以避免信号干扰 使用时请远离热源或干扰源 使用时请避免掉落，碰撞或重击 请勿在下雨或潮湿环境环境中使用，否则会有短路的危险...
- Page 13 产品主要功能 . Iphone Lightning接口专用 . 超强屏蔽、抗噪咪头 . 无级增益可调 . LED工作指示灯 . 实时监听 实时监听 超强屏蔽 LED工作指示灯 无级 Iphone Lightning 增益可调 抗噪咪头 接口专用 包装清单 麦克风主体 背夹 手提袋 说明书 保修卡...
- Page 14 部件介绍及说明 麦克风 Iphone Lightning音频输出线 监听孔 工作指示灯 咪头 增益调节拨盘 电源/录音/低切转换开关 背夹 电池仓...
- Page 15 安装与使用 1.将开关拨至录音或低切，指示灯亮绿灯 拨至录音或低切 指示灯亮绿灯...
- Page 16 ２.把Iphone Lightning输出接头插入到手机的Iphone Lightning 输入 接口，打开手机的录音软件，即可以进行录音 a.该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及 视频录模式下均可正常工作 b.当用于手机时，请将手机设置为飞行模式，以避免信号干扰...
- Page 17 功能解析 1. 增益调节拨盘 使用过程中，增益调节拨盘可以调节麦克风输出灵敏度 增益调节拨盘 ２. 3.5mm监听孔 通过监听孔，可以实时了解录音情况 ３.开/关功能切换 电池低电时，指示灯亮红灯，此时应该更换新电池使用。机器 不使用时，请将开关拨动OFF，关闭机器 拨至左侧电源开关...
- Page 18 技术参数 指向图 +5.0 -2.0 -2.0 -4.0 -6.0 -8.0 -10.0 -10. 0 -12.0 -14.0 -16.0 -18.0 -20.0 -20. 0 -22.0 -24.0 -25.0 dB rel. 1V/Pa Frequency: 500 Hz : 1000 Hz : 4000 Hz : 频响图 20Hz 1000 10 000 20 000...
- Page 19 产品特征 指向性 全指向 咪头灵敏度 -35dB ±2dB 增益调节 最大增加+10dB 频响 60Hz - 18kHz 信噪比 >65dB 最大声压级 100dB 电池 CR2032 3V 工作温度 0℃ ~ +50℃ 储存温度 -20℃ ~ +60℃...
