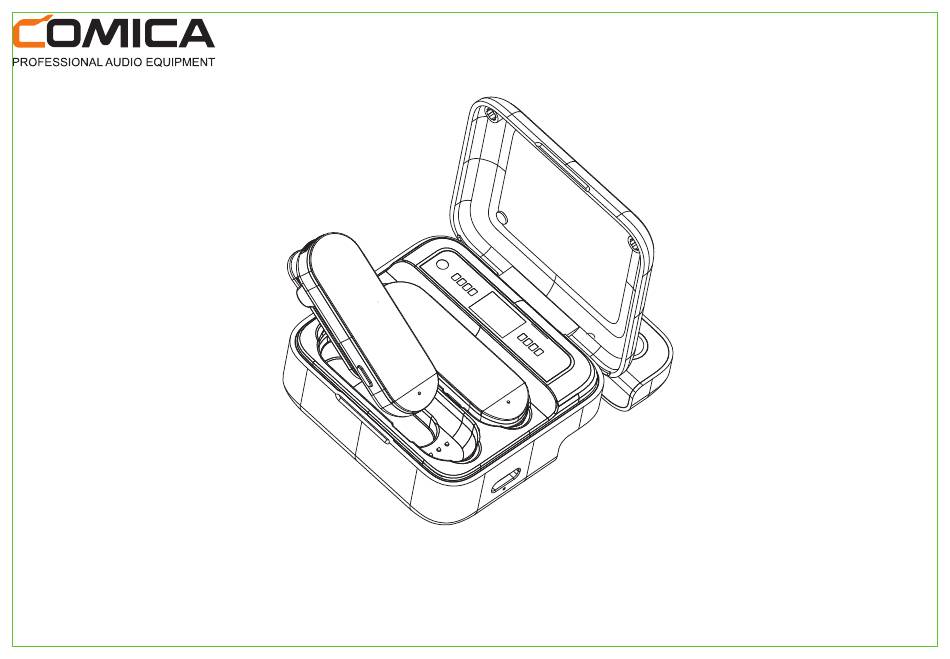

- Page 1 Vimo S-UC 2.4G Dual-channel Mini Wireless Microphone User Manual...
- Page 3 Foreword Thanks for purchasing Comica 2.4G Dual-channel Mini Wireless Microphone Vimo S-UC. Features Mini and Lightweight, Unique Magnetic Integrated Microphone ● 48kHz/24bit Record, Broadcasting-level Sound Quality ● USB Digital Output, Universal for Computers and Phones ● Stepless Volume Adjustment, One-key Muting and Denoise ●...
- Page 4 Notice Due to 2.4G wireless characteristics, please keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon. Due to the characteristics of lithium batteries, the transmitter's charging indicator will show an inaccurate battery level when the charging starts, and the actual power may be lower than the indicated power.
-
Page 5: Packing List

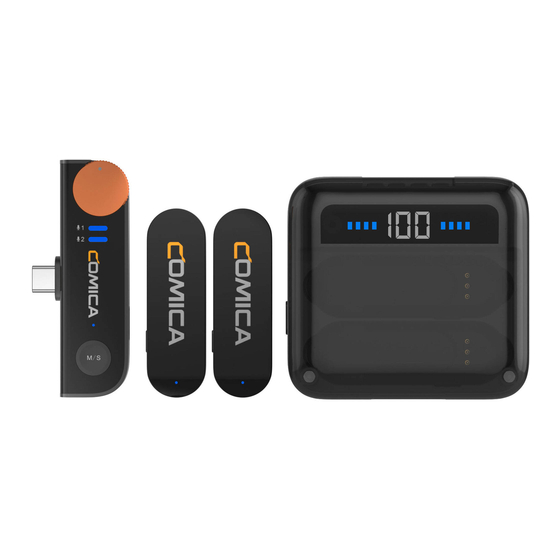

Packing List Vimo S-UC Versatile 2.4G Wireless Mini USB Microphone User Manual ⑧ ①x2 ② ③ ④x2 ⑤ ⑥ ⑦ ① Transmitter(TX) ② Receiver(RX) ③ Charging Case ④ Wind Mu ⑤ 2 in 1 Charging/Monitoring Adapter Cable ⑥ USB C-USB A Charging Cable ⑦... - Page 6 Components and Instruction Transmitter (TX): ① ③ ④ ⑤ ② Internal Mic ① Working Status Indicator: ② Blink blue slowly when unpaired; Blink rapidly when pairing; Show blue when paired; Show green when denoise is on; Show red when muting. Belt Clip ③...
-
Page 7: Receiver (Rx)
Receiver (RX): ③ ④ ② ① ⑤ ⑥ Charging/Monitoring Port ① USB-C Plug ② Transmitter Volume Control Knob: ③ Adjust the volume of transmitter 1/2 synchronously. Turn counterclockwise to increase the volume, and turn clockwise to reduce the volume. Transmitter 1/2 Pairing Indicator: ④... -
Page 8: Charging Case
Charging Case: ③ ④ ④ ⑤ ⑥ ② ⑦ ① ⑧ USB-C Port ① ② Battery Level Indicator Button: Short press to show the battery level of charging case and transmitters. Charging Case Battery Level: 0-100 ③ Battery Level Indicator of Transmitters: ④... -
Page 9: Installation And Usage
Installation and Usage Pairing (All have been paired at the factory. If you need to re-pair, please follow the steps below.) Long press the pairing button on the TX to pair. The indicator lights on the TX and the RX will show blue when the pairing is successful. - Page 10 Usage 1. Remove the transmitters and the receiver from the charging case Remove from the left side...
- Page 11 2. Install the transmitter on the collar ① ② Install the transmitter on the collar so that the internal mic points to the sound source 3. Attach the receiver to the USB-C devices (phones and computers)
- Page 12 4. Monitoring/Charging Method One Connect USB-C headphones to monitor or connect the power bank/DC power using the USB C-USB A charging cable to charge the mobile phone.
- Page 13 Method Two Connect 3.5mm headphones through the 2 in1 charging/monitoring adapter cable for monitoring and connect the power bank/DC power to charge the mobile phone at the same time.
-
Page 14: Specification
Specification Wireless Type 2.4GHz Antenna Built-in Antenna Sampling Rate 48kHz Bit Depth 24bits Transmitting Power 10dBm Sensitivity -32dB ±2dB Polar Pattern Omnidirectional Frequency Response 80Hz~20kHz 70dB Equivalent Noise 24dBA Maximum SPL 110dB Dynamic Range 86dB Sound Delay <20ms TX: Built-in Li-ion Battery 95mAh 3.8V Battery Charging Case: Built-in Li-ion Battery 800mAh 3.8V Charging Time... - Page 15 Vimo S-UC 2.4G双通道迷你无线麦克风 产品使用说明书...
- Page 17 前言 感谢您购买科唛Vimo S-UC 产品主要功能 USB-C充电/监听接口，支持手机直通充电 独特磁吸集成化设计，轻巧迷你 ● ● 48kHz/24bit录音，超CD级音质 支持实时监听，单声道/立体声切换 ● ● USB直插式数字输出，广泛兼容手机、电脑等设备 多功能磁吸充电盒，总续航高达15小时 ● ● 无级音量可调，支持一键静音及降噪 低音频延迟＜20ms，无线传输距离高达200m ● ● 注意事项 由于2.4G无线特性，使用时尽量保持面对面，避免背对的情况，否则容易产生断点，属正常现象 由于锂电池的特性，发射器充电开始时存在虚电现象，实际电量可能会低于显示电量。若电量完全耗尽， 需要充电两小时以上才能充满 单通道模式下，立体声（STEREO）功能无法实现 请将该产品放置在干燥环境中保存；请勿在雨中或潮湿的环境中使用该设备，以免发生短路 请勿将产品放置在散热器、烤箱、冰箱、空调等热源或干扰源附近使用 本产品属于高精密仪器类产品，请勿掉落、碰撞或撞击产品...
- Page 18 包装清单 Vimo S-UC Versatile 2.4G Wireless Mini USB Microphone User Manual ⑧ ①x2 ② ③ ④x2 ⑤ ⑥ ⑦ ① 发射器(TX) ② 接收器(RX) ③ 充电盒 ④ 防风毛 ⑤ 一分二音频/充电转接线 ⑥ USB C-USB A充电线 ⑦ 说明书 ⑧ 保修卡...
- Page 19 部件介绍及说明 发射器(TX): ① ③ ④ ⑤ ② ① 内置咪头 ② 工作状态指示灯： 未配对时蓝灯慢闪；配对时指示灯快闪；配对成功时蓝灯长亮；开启降噪时绿灯长亮；MIC静音时红灯长亮。 ③ 背夹 ④ 静音/降噪/配对切换按键： 短按静音；未配对时长按配对；已配对时长按降噪。 ⑤ 充电触点...
- Page 20 接收器(RX): ③ ④ ② ① ⑤ ⑥ ① 充电/监听接口 ② USB-C插头 ③ 发射器音量调节旋钮： 同时调节发射器1和2的音量，逆时针调节增大音量，顺时针调节减小音量。 ④ 发射器1/2配对指示灯： 未配对时蓝灯闪烁；配对成功蓝灯长亮。 ⑤ 模式指示灯： 单声道模式下，蓝灯长亮；立体声模式下，指示灯不亮。 ⑥ 单声道/立体声切换按键： 短按切换单声道/立体声。...
- Page 21 充电盒: ③ ④ ④ ⑤ ⑥ ② ⑦ ① ⑧ ① USB-C插口 ② 唤醒按键: 短按显示充电盒及发射器的电量。 ③ 充电盒电量: 电量显示为0~100。 ④ 发射器电量: 左侧显示充电槽1中发射器的电量；右侧显示充电槽2中发射器的电量；总共有四格电量，每格代表25%电量。 ⑤ 充电槽1 ⑥ 充电槽2 ⑦ 充电盒USB-C充电插口 ⑧ 充电盒复位孔...
- Page 22 安装与使用方法 配对 （出厂时均已配对，如需重新配对可按如下方式操作） 长按发射器配对按钮进行配对，配对成功后发射器，接收器的蓝灯长亮...
- Page 23 使用方法 1.按照图示取出发射器和接收器 从左边取出...
- Page 24 2.将发射器安装在衣领上 ① ② 将发射器安装到衣领上，使内置麦克风指向音源方向 3.将接收器接入USB-C设备...
- Page 25 4.监听/充电 方法一 连接USB-C耳机进行实时监听，或连接充电宝/DC电源给手机充电...
- Page 26 方法二 通过一分二音频/充电转接线连接3.5mm耳机进行实时监听, 同时连接充电宝/DC电源给手机充电...
- Page 27 规格参数 2.4GHz 无线类型 天线 内置天线 48kHz 采样率 24bits 位深 10dBm 发射功率 -32dB±2dB 麦克风灵敏度 麦克风指向性 全指向 80Hz ~ 20kHz 麦克风频率响应 70dB 系统信噪比 24dBA 系统等效噪声 110dB 最大声压级 86dB 动态范围 <20ms 声音延迟 TX:锂聚合物 95mAh 3.8V 电池类型 充电盒:锂聚合物 800mAh 3.8V TX:2小时;充电盒:2小时 充电时间 TX:5小时;充电盒:2次 续航时间 TX: 10g RX: 12g 净重...
- Page 28 Email: support@comica-audio.com...
