Comica VP3 User Manual

Super cardioid condenser xlr shotgun microphone
Hide thumbs

Advertisement

Quick Links

Download this manual
VP3
Super Cardioid Condenser XLR Shotgun Microphone
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VP3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comica VP3

Summary of Contents for Comica VP3

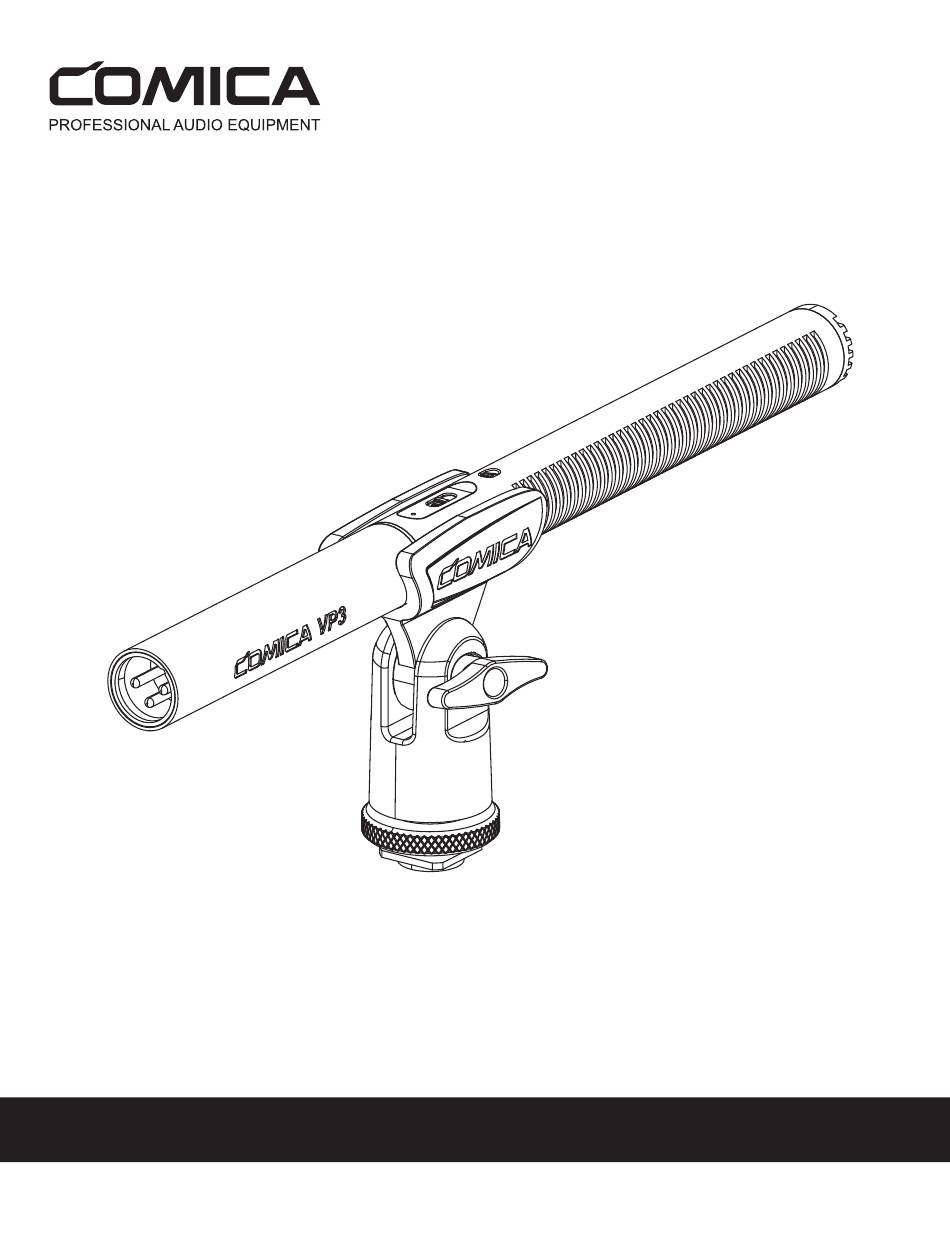

  • Page 1 Super Cardioid Condenser XLR Shotgun Microphone User Manual...

  • Page 3: Main Features

    Foreword Thanks for purchasing Comica VP3 Main Features · Super Cardioid Condenser Mic Capsule · Directional Pickup and Flat Frequency Response Curve · High-fidelity Sound Quality, Ultra Low Self-noise · Support 100Hz High-pass Filter, and -10dB Audio Pad · Support 48V Phantom Power or AA Battery Power supply ·...

  • Page 4: Packing List

    Packing List Main Part： Microphone Accessories: Wind Mu *1 Microphone Waterproof XLR-3.5mm TRS Clip*1 Case*1 Audio Cable*1 Super Cardioid Condenser XLR Shotgun Microphone User Manual 1/4 Female to 3/8 User Manual*1 Warranty Card*1 Male Screw*1...
  • Page 5 Components and Instruction Mic Capsule Low-cut Filter Button Power Switch/-10dB Button Microphone Status Indicator Light Battery Compartment XLR Audio Output Interface 1.Mic Capsule 2.Low-cut Filter Button Move up to turn low-cut o , move down to turn low-cut on The low-cut filter can e ectively reduce the environment noise under 100Hz 3.Power Switch/-10dB Button Move up for power on, middle gear for power o , move down for -10dB volume adjustment...
  • Page 6 Installation and Usage Battery Installation： 1.Rotate the tube to open the battery compartment 2.Insert the battery 3.Rotate the tube to close the battery compartment...
  • Page 7 Installation on Device Mount and Audio Output： 1. Install the microphone in the microphone clip 2. Attach the cold shoe base of the microphone clip to the camera/ camcorder and tighten the locking screw until it is secure...
  • Page 8 3. Connect the microphone with camera/camcorder for usage through the XLR-3.5mm TRS or XLR-XLR audio cable Please purchase XLR-XLR audio cable by yourself when connected with XLR interface devices...
  • Page 9 Installation on Boom Pole and Audio Output： 1. Install the microphone in the microphone clip 2. Attach the microphone clip mount to the boom pole...
  • Page 10 3. Connect the mic with camera/camcorder for usage through the XLR-3.5mm TRS or XLR-XLR audio cable Please purchase XLR-XLR audio cable by yourself when connected with XLR interface devices...

  • Page 11: Specifications

    Specifications Type Condenser Microphone Directivity Super Cardioid Frequency Range 20Hz ~ 20kHz Low Cut -3dB @ 100Hz Output Impedance -35dB / -45dB re 1V/Pa(17.8mV / 5.6mV @ Microphone Sensitivity 94dB SPL) ±2dB @ 1kHz 80dB SPL(A-weighted,as per IEC651) @ 48V Phantom Power Supply / 79dB SPL(A-weighted, Signal / Noise as per IEC651) @ AA Battery Power Supply...
  • Page 13 超心型电容XLR枪式麦克风 使用说明书...
  • Page 15 前言 感谢您购买科唛VP3 主要功能 ·超心型电容咪头定向拾音，平滑频响曲线   ·高保真音质、超低底噪  ·100Hz高通滤波、-10dB音频衰减  ·支持48V幻象电源或AA电池供电 ·XLR卡侬输出，兼容摄像机/相机等 ·全金属结构稳固且轻便，超强屏蔽 注意事项 装入电池时请注意正极朝上，避免电池装反给设备造成损坏 为获得更好的录音效果，请将麦克风的正面对准音源 请勿将本设备放置在热源或干扰源附近使用，如散热器、烤箱、冰箱、 空调等 本产品属于高精密仪器类产品，请避免使用时掉落、碰撞或重击 不要在雨中或潮湿的环境中使用该设备，否则会有短路的危险 请在干燥环境中对该产品进行保存 使用完成后，请注意关机后再进行存放...
  • Page 16 包装清单 主体： 麦克风 配件： XLR-3.5mm TRS 防风棉*1 话筒夹*1 防水盒*1 音频线*1 超心型电容XLR枪式麦克风 使用说明书 1/4母转3/8公 转接螺丝*1 说明书*1 保修卡*1...
  • Page 17 部件介绍及说明 拾音头 低切按键 电源开关/-10dB按键 麦克风状态指示灯 电池仓 XLR音频输出接口 1.拾音头 2.低切按键 向上拨动关闭低切，向下拨动开启低切 低切功能可以有效减少低于100Hz的环境噪音 3.电源开关/-10dB按键 向上拨动为开启电源，中间档位为关闭电源，向下拨动为音量衰减10dB 4.麦克风状态指示灯 绿灯长亮 开机状态/连接到48V幻象电源 红灯长亮 电量不足 5.电池仓 放入一节AA电池给麦克风供电使用 6.XLR音频输出接口 通过XLR-XLR或XLR-3.5mm TRS音频线连接至相机/摄像机使用...
  • Page 18 安装与使用 电池安装: 1.旋转管体，打开电池仓 2.放入电池 3.旋转管体，关闭电池仓...
  • Page 19 机顶安装与音频输出: 1. 将麦克风安装至话筒夹 2. 将话筒夹的冷靴底座安装至相机/摄像机，拧紧转牙锁盘至固定...
  • Page 20 3. 通过XLR-3.5mm TRS或XLR-XLR音频线连接至相机/摄像机使用 搭配XLR接口设备时，请自行购买XLR-XLR音频连接线...
  • Page 21 挑杆安装与音频输出: 1. 将麦克风安装至话筒夹 2. 将话筒夹固定座安装至话筒挑杆上...
  • Page 22 3. 通过XLR-3.5mm TRS或XLR-XLR音频线连接至相机/摄像机使用 搭配XLR接口设备时，请自行购买XLR-XLR音频连接线...
  • Page 23 规格参数 类型 电容 麦克风指向性 超心型 20Hz ~ 20kHz 频率范围 -3dB @ 100Hz 低切 输出阻抗 -35dB / -45dB re 1V/Pa(17.8mV / 5.6mV @ 94dB 灵敏度 SPL) ±2dB @ 1kHz 80dB SPL(A-weighted,as per IEC651) @ 48V 幻象 电源供电 / 79dB SPL(A-weighted,as per IEC651) 信噪比...
