StarTech.com 4U2525-SAS-BACKPLANE Quick Start Manual

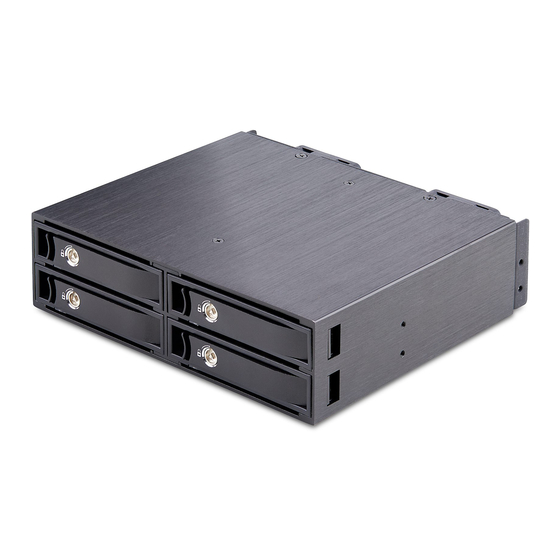

4-Bay 2.5in U.2 (SFF-8639) Drive Backplane
Product ID
4U2525-SAS-BACKPLANE

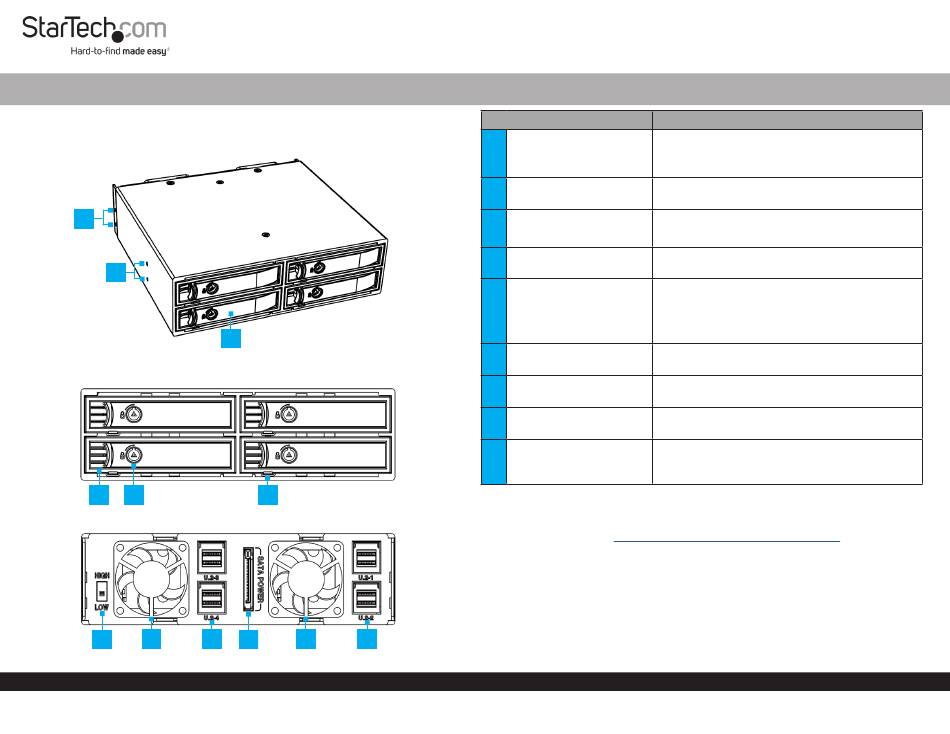

Front
1
1
Front
3 4
Rear
6 7
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
5
8 9 7 8
Component
•
1 Frame Mounting Holes
•
•
2 Drive Bay/Drive Tray
Drive Bay Release Latch
•
3
•
4
Drive Bay Key Hole
•
•
5 LED Indicator
•
•
6 Fan Speed Switch
•
7 Drive Cooling Fans
Mini-SAS Connectors
•
8
(SFF-8643)
•
9 SATA Power Connector
Product Information
For the latest drivers/software, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/4U2525-SAS-BACKPLANE
Requirements
Desktop with:
•
Available 5.25" Expansion Bay x 1
•
SAS (SFF-8643) Host Connector Ports x 4
•
SATA Power from Computer Power Supply x 1
•
2.5" U.2 (SFF-8639) NVMe Drives x 4
•
Quick-Start Guide
Function
Secure the 4-Bay Drive Backplane to the
Computer Case
4 Holes on each side of the Backplane
Hosts a U.2 NVMe Drive and is removable from
the 4-Bay Drive Backplane
Used to remove the Drive Tray from the
Backplane
Use the included Set of Keys to Lock or Unlock
the Drive Tray
Solid Blue: Indicates the Drive is receiving power
Blinking Blue: Indicates Drive activity
Blinking Red: Indicates a Drive Cooling Fan
failure
Change the Drive Cooling Fans speed between
High or Low
Provides airflow to assist in cooling the U.2
NVMe Drives
Connect to a U.2 NVMe Controller in the Host
Computer
Connect available SATA Power from the
Computer's Power Supply to provide power to
the U.2 NVMe Drives
Manual Revision: May 12, 2023 2:48 PM
