StarTech.com 4P-SATA-M2-ADAPTER Quick Start Manual

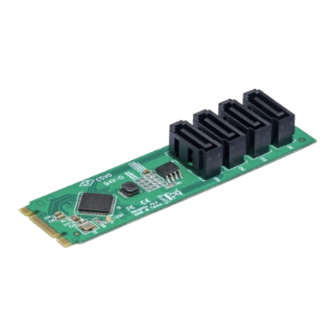

M.2 to Quad SATA Drive Adapter
Product ID
4P-SATA-M2-ADAPTER

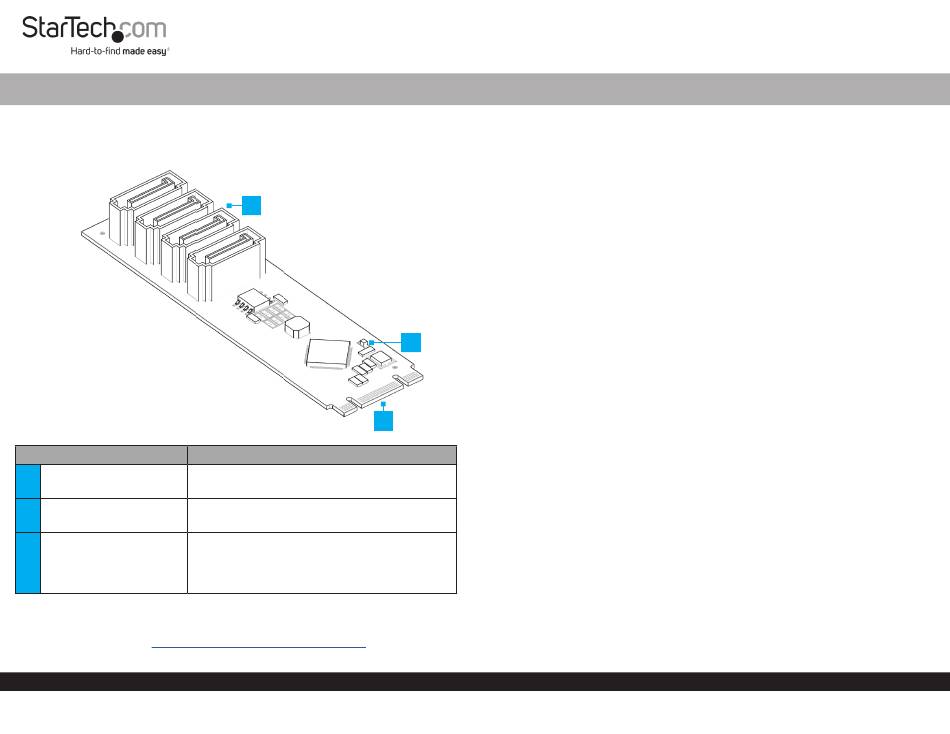

Top View
Component
•
1 SATA Drive Ports 1 - 4
•
•
2 LED Indicator
•
•
3
M.2 Host Connector
•
•
Product Information
For the latest product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/4P-SATA-M2-ADAPTER
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
3
Function
Connect a SATA HDD/SSD
Supports SATA I/II/III
Solid Green: Power On
Off: Power Off
Install the M.2 Adapter into a M.2 Drive Slot on
the Host Computer
Size of the M.2 Adapter is 2280
Compatible with PCIe-based B or M key M.2 slots
Requirements
Computer with M.2 Drive Slot x 1
•
SATA HDD/SSD x 4
•
Package Contents
M.2 to Quad SATA Drive Adapter x 1
•
SATA Cables x 4
•
Quick-Start Guide x 1
•
Installation
Install the M.2 to Quad SATA Drive Adapter
Warning: M.2 Adapter Cards can be damaged by static electricity. Ensure that the
Installer is properly grounded before they open the Computer Case or touch the M.2 to
Quad SATA Adapter. The Installer should wear an Anti-Static Strap when installing any
computer component. If an Anti-Static Strap is not available, discharge any built-up
static electricity by touching a large Grounded Metal Surface for several seconds. Only
2
handle the M.2 Adapter Card by its edges and do not touch the gold connectors.
Turn off the Computer and disconnect the Power Cable and any Peripheral Devices
1.
that are connected (e.g. printers, external hard drives, etc.).
Remove the Cover from the Computer Case.
2.
Note: Consult the documentation that came with the Computer for details about how
to do this safely.
Locate an available M.2 Drive Slot on the Host Computer's Motherboard. If the M.2
3.
Drive Slot has a Cover or Heatsink, remove the corresponding Slot Cover/Heatsink.
Gently insert the M.2 Adapter into the open M.2 Drive Slot. Secure it using a Phillips
4.
Head Screwdriver and the Screw that was removed in Step 3.
Connect a SATA Drive to the M.2 Drive Adapter using one of the included SATA
5.
Cables.
Repeat Step 5 for the remaining SATA Drives.
6.
Re-install the Cover of the Computer Case that was removed in Step 2.
7.
Reconnect the Power Cable and Peripheral Devices that were disconnected in
8.
Step 1.
Power on the Computer.
9.
Quick-Start Guide
Manual Revision: June 13, 2024
