StarTech.com 4K30-HDMI-CAPTURE Quick Start Manual

UVC HDMI® Capture Device - USB-A/USB-C - 4K 30Hz - Windows and Mac

Product Diagram (4K30-HDMI-CAPTURE)

Front
1
Component
1
HDMI Input Port
2 USB Host Connection
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/4K30-HDMI-CAPTURE
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

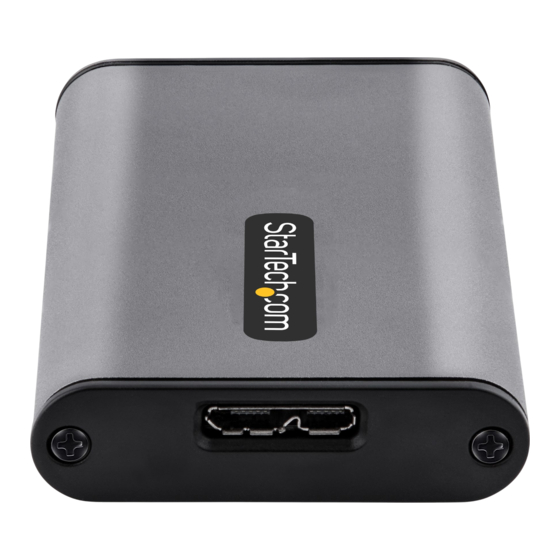

Rear
2
Function
Connect an HDMI Source, using an HDMI Cable
•
Connect to a Host Computer, using the
•
included USB-A to Micro-B Host Cable or the
USB-C to Micro-B Host Cable

Requirements

• HDMI Cable x 1
• HDMI Video Source x 1
• Computer x 1
Available USB-A or USB-C Port
•

Package Contents

• Capture Device x 1
• USB-A to Micro USB-B Host Cable x 1
• USB-C to Micro USB-B Host Cable x 1
• Quick-Start Guide x 1

Installation

Install the Capture Device
Connect an HDMI Cable from the Video Source to the HDMI Input Port on the
1.
Capture Device.
Connect the USB Host Cable to the Capture Device, and to the USB Port on the
2.
Host Computer.
NOTE: A SuperSpeed USB 5Gbps (USB 3.2 Gen 1) or higher host port is required for
optimal performance.
Your computer automatically installs the necessary drivers when the capture device
3.
is connected.
NOTE: No software is included with the 4K30-HDMI-CAPTURE. The capture device works
with third-party software (e.g. Teams, Zoom, and OBS) that supports USB Video Class
(UVC) devices.
Quick-Start Guide
Manual Revision: January 24, 2022 3:26 PM
