- Page 1 NVMe/SATA Docking Station Quick Installation Guide DA-71547...

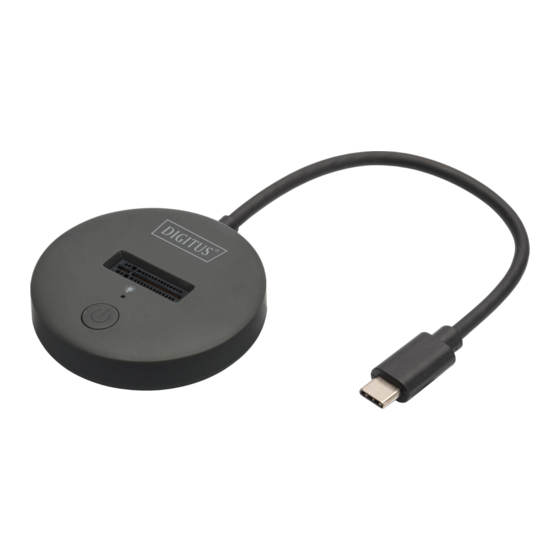

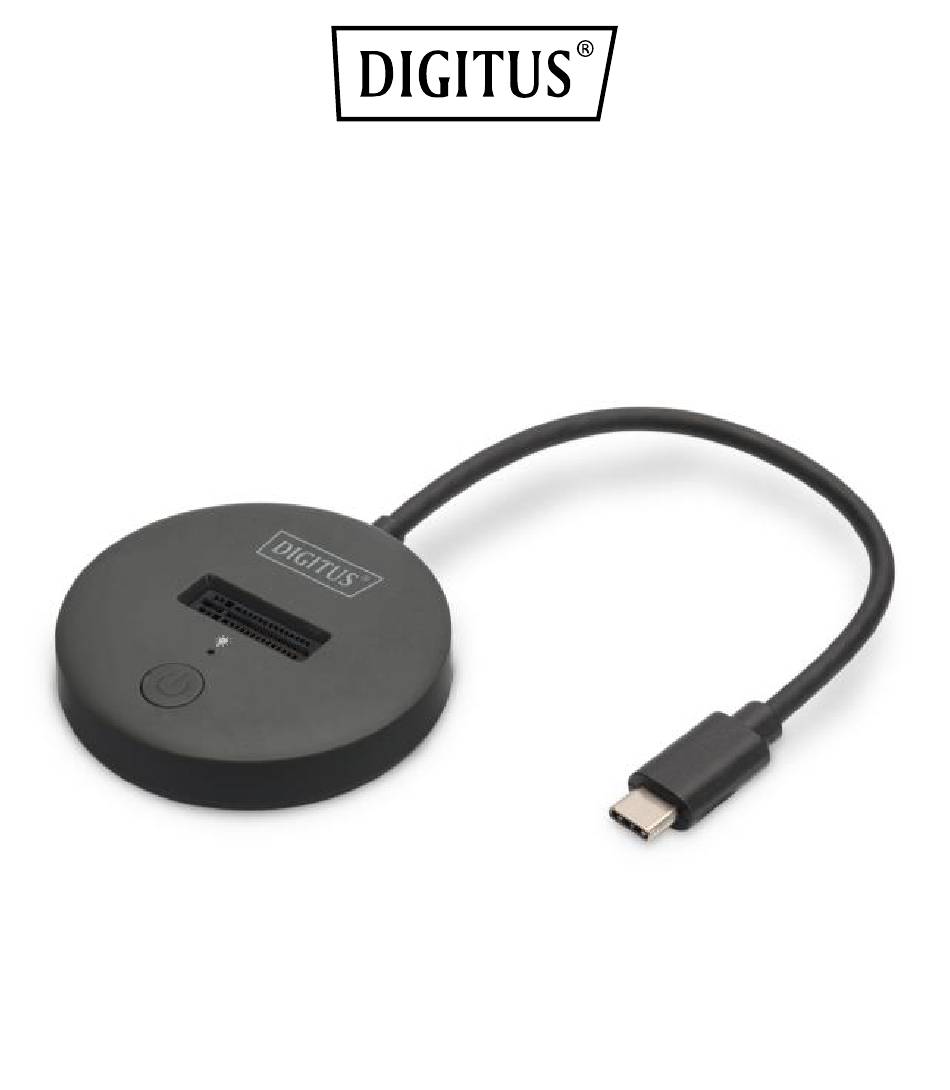

- Page 2 1. Description The SSD Docking Station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology with up to 4 TB. Supports NVMe SSDs with B+M Key & M-Key and SATA SSDs with B+M-Key, each in the formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of numerous USB-C™...
-
Page 3: Package Content
3. Package content 1 x SSD Docking Station 1 x Quick start guide 4. Specification 1 x Data USB-C™ 3.2 Gen2, USB-C™ connection 1 x Power jack USB-C™ Storage formats NTFS, FAT, FAT32 Connection cable 18cm Dimensions W: 6 x D: 6 x H: 1,45cm Weight 40 g Material... -
Page 4: Product Details
5. Product Details M.2 Slot Power Switch Power LED Type-c... - Page 5 6. PC mode (Read and Write) 6.1 SSD installation Insert NVMe M.2 SSD into M.2 slot.
- Page 6 6.1 Reading & Writing Connect to PC with Type C port. Press the power button, blue light will be on when connected to power, flash when reading & writing HDD / SSD Driver will be installed automatically; you can see the notice at the lower right corner of the computer.
- Page 7 7. New hard disk format 7.1 View “computer-Manage-disk management” to find the new disk.
- Page 8 7.2 Right click the “Disk 1” then click “New Simple Volume”.
- Page 9 8. Hard disk partition 8.1 According to the instruction, choose the size of partition then click “Next” to finish. 8.2 Then you can find the new hard disk in the “computer”, it’s ready to be use.
- Page 10 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
