M.2 NVMe + M.2 SATA SSD Docking
Station with SD Express Card
Reader, USB-C™

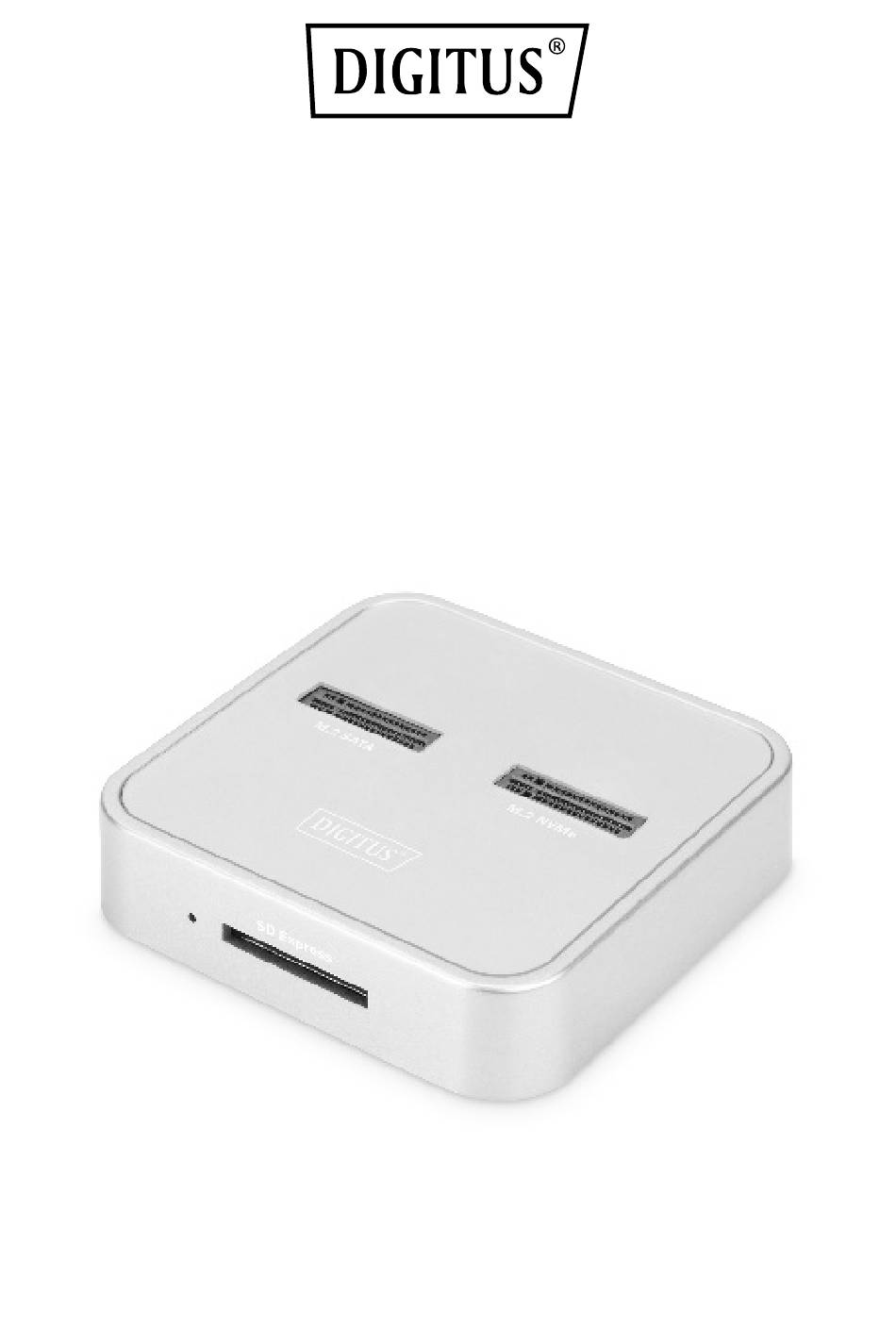

Quick Installation Guide
DA-71546

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-71546 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DA-71546

Summary of Contents for Digitus DA-71546

  • Page 1 M.2 NVMe + M.2 SATA SSD Docking Station with SD Express Card Reader, USB-C™ Quick Installation Guide DA-71546...

  • Page 2: Package Content

    1 x Quick start guide • Description The 3-in-1 Docking Station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology; an SD Express 7.1 card reader with the highest data transfer rates is also integrated. Manage M.2 data carriers with up to 4 TB per slot and additionally SD.

  • Page 3: Product Details

    Product Details PC Type-C Power Type-C Power switch B+M Key SATA M2 M-key NVMe M2 Disk LED SD memory LED SD express slot Power LED Technical Specification Interface: Type-C to M.2 Support SSD: B+M Key(SATA)；M-key/B+M key(NVMe) Support SD: SD Express and down compatibility USB peed: 10 Gbps Rating:...
  • Page 4 Attention Check the connector icon and SSD label match before assembling SSD, cannot work if assemble wrong SSD 1. SATA connector workable to B+M key SATA SSD only 2. NVMe connector workable to M-key NVMe and B+M key NVMe...
  • Page 5 PC mode (Read and Write) 1. External storage Insert M.2 SSD to correct SSD slot • Connect USB cable with docking and PC/NB • Connect power type C with docking and AC adapter • Press power switch one time, power and disks LED will •...

  • Page 6: New Hard Drive Format

    New hard drive format 1. View “computer-Manage-Disk Management” to find the new disk.
  • Page 7 2. Right click the “Disk 1” then click “New Simple Volume”. 3. According to the instruction, choose the size of partition then click “Next” to finish.
  • Page 8 4. Then you can find the new hard disk in the “computer”, it’s ready to be use.
  • Page 9 Disclaimer: The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
