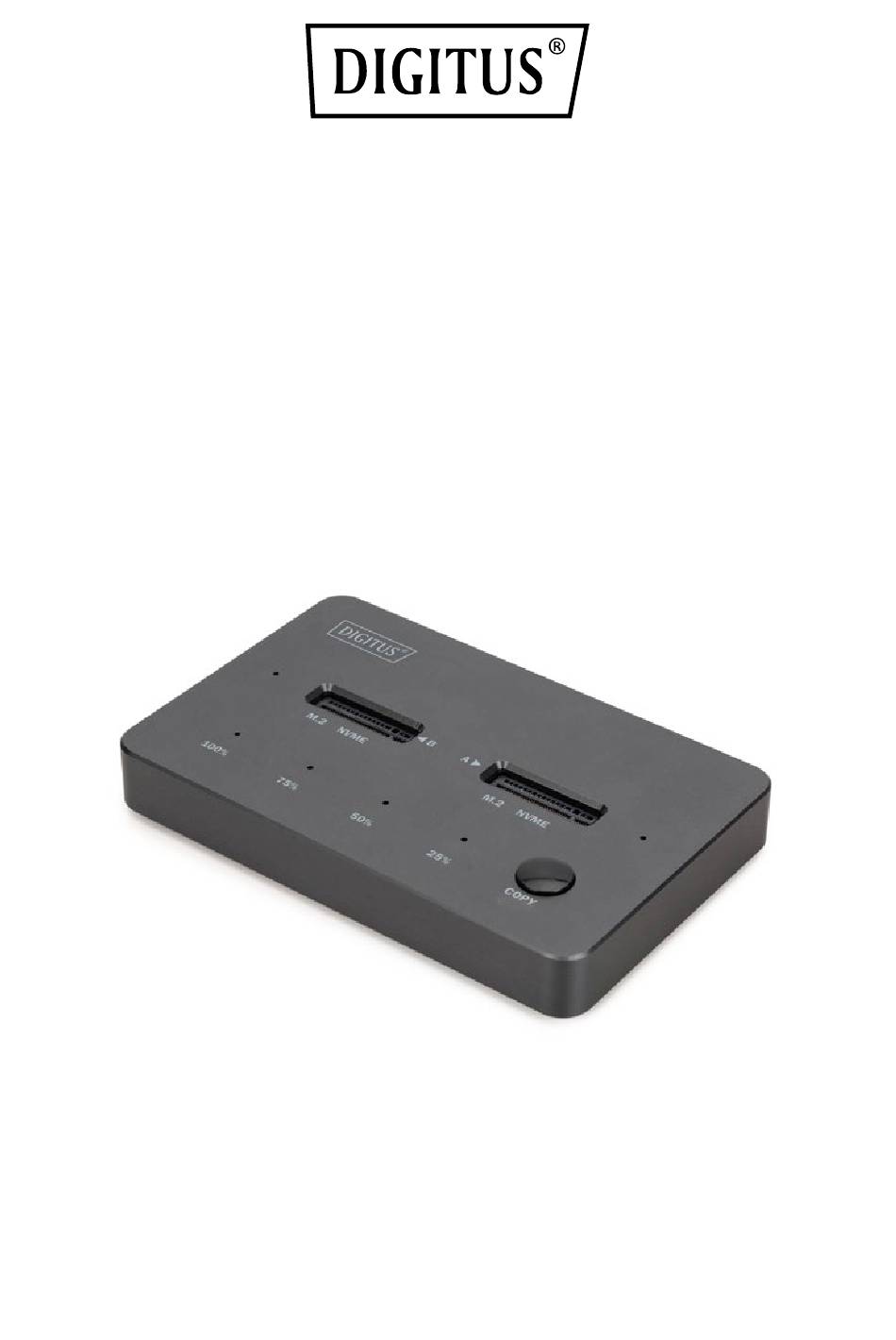

- Page 1 NVMe cloning station USB3.1 Gen2 Type-C NVMe M.2 SSD enclosure Quick Installation Guide DA-71545-1...
-
Page 2: Feature Benefits
Description The DIGITUS® Dual NVMe Docking Station DA-71545-1 offers a powerful storage solution for IT professionals and enthusiasts. With space for two M.2 NVMe SSDs (up to 4 TB per slot), it enables high-speed data transfers and an integrated offline cloning function that allows easy duplication of data carriers at the touch of a button. - Page 3 2242, 2260, 2280 & 22110 / M-Key, Supported formats B & M-Key SSDs (NVMe) USB-C connections 1 x Data USB-C 3.2 Gen2 Maximum transfer rate 10 Gbps USB-C Modes Clone and dual mode PC, notebook, TV, router or gaming Applications console (with USB-C connection) Storage formats NTFS, FAT, FAT32...
-
Page 4: Product Details
Product Details Clone button Data type C M.2 NVMe SSD2 M.2 NVMe SSD1 DC Power Clone Indicator light Basic Functions Insert NVMe SSD with vertical direction, connect USB-C cable with data type C port and PC USB port AC Plug power adapter (workable with one SSD or two SSD) ... - Page 6 Right click the “Disk 1”, then click “New Simple Volume” According to the instruction, choose the size of partition, then click “Next” to finish...
- Page 7 Then you can find the new hard disk in the “Computer”, it is ready to use Connect two NVMe SSD (Source SSD capacity must be = < Target SSD) AC Plug power adapter ...
- Page 8 Pressing clone button for several seconds, till clone LED light 25% flash, till all clone LED lights on and then short press the button again. Clone LED light flash from 25%, 50%, 75% and 100% ...
- Page 9 It means that clone completed when 100% illuminate and all LEDs are off finally (Tip: when connect with PC again, make sure disconnect power first and follow operation as PC mode) Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
