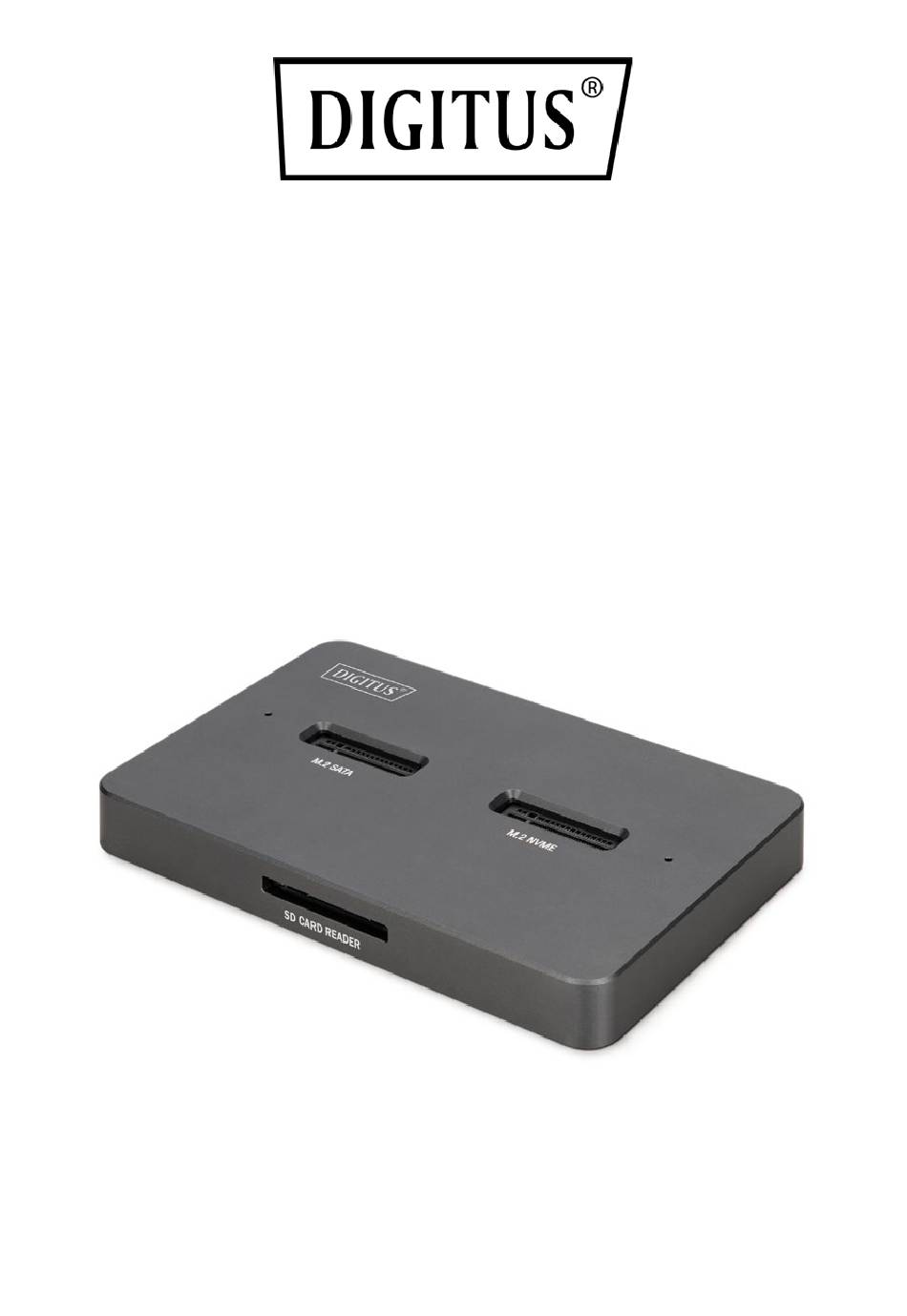

- Page 1 M.2 NVMe + M.2 SATA SSD Docking station with SD Express card reader, USB-C Quick Installation Guide DA-71546-1...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ............... 3 Technical Features ............. 3 Specification ............. 4 Ports and Interfaces ..........6 Performance Testing ..........7 5.1 SATA disk working speed testing ......7 5.2 NVME disk working speed testing ......8... -
Page 3: Introduction
1. Introduction The 3-in-1 docking station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology, and there is also an SD Express 7.1 card reader with the highest data transfer rates on board. Manage M.2 data carriers with up to 4 TB per slot and additional SD cards up to 2 TB. -
Page 4: Specification
3. Specification 1 x M.2 bay for NVMe SSDs (B+M-Key / M-Key) 1 x M.2 bay for SATA SSDs (B+M-Key) 1 x SD-Express 7.1 memory card Ports reader 2 TB max. / 1000 MB/s max. 1 x Data USB-C 3.2 Gen2 1 x DC Power supply Capacity max. - Page 5 Input voltage USB power 100 -240 V AC, 50/60 Hz, supply Control Chip JMS581LT Working 5V/3A voltage/current Operation Microsoft Windows 7,8,9,10,11 System MAC 10.10.5 and above Operating temperature: 0-40℃ Operating humidity: 10%-90%RH (noncondensing) Working Environment Storage temperature: -40-70℃ Store humidity: 5%-90%RH (noncondensing)
-
Page 6: Ports And Interfaces
4. Ports and interfaces SD card slot: Support SD3.0 UHS-I memory card, largest capacity 2TB SATA disk LED: Indicate working status for SATA disk NVME disk LED: Indicate working status for NVME disk 5VDC input: Could plug in 5V/3A DC power TYPE-C port: USB3.1 10Gbps data transfer port... -
Page 7: Performance Testing
5. Performance Testing 5.1 SATA disk working speed testing... -
Page 8: Nvme Disk Working Speed Testing
5.2 NVME disk working speed testing Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. info@assmann.com Assmann Electronic GmbH Auf dem Schüffel 3...
